EM2RS Modbus RS485 Stepper Drive User Manual
- 11 -
10
RS485 RxD-
5, 6, 13, 14
GND
GND
7, 8, 15, 163, 4, 11, 12
NC
Received
Connector cover
PE
Shield GND

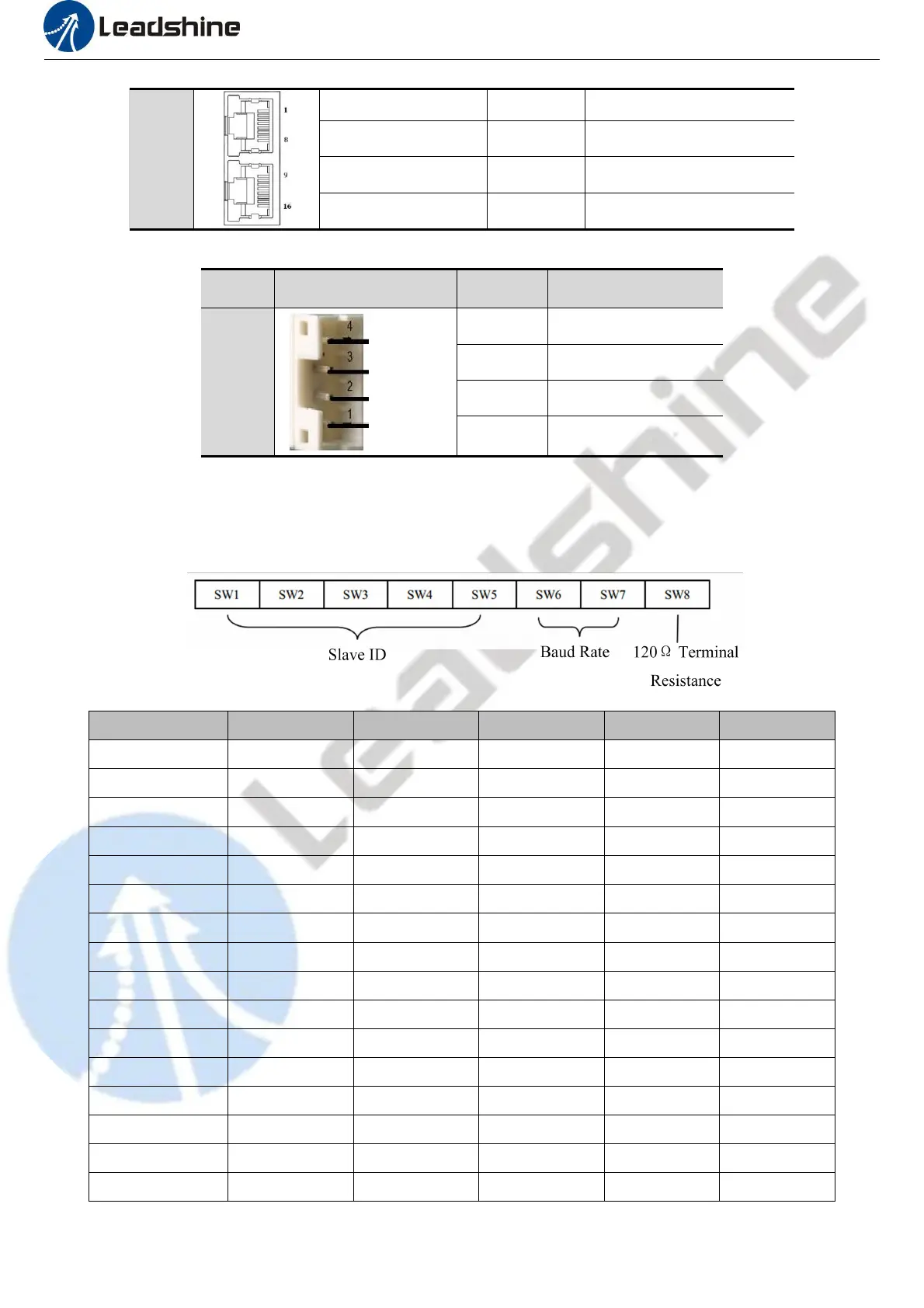

3.3.5 CN5-RS232 Tuning Port
Name
Pic
PIN
Signal
CN5
1
NC
2
TxD
3
GND
4
RxD
3.3.6 DIP Switches
The EM2RS series drives use an 8-bit DIP switched to set Salve ID (also called Site Alias), Baud Rate and Terminal Resistance,
they are shown as below:
(1) Slave ID: SW1-SW5 (off=1, on=0)
Slave ID
SW1
SW2
SW3
SW4
SW5
1 (default)
on
on
on
on
on
1 (factory)
off
on
on
on
on
2
on
off
on
on
on
3
off
off
on
on
on
4
on
on
off
on
on
5
off
on
off
on
on
6
on
off
off
on
on
7
off
off
off
on
on
8
on
on
on
off
on
9
off
on
on
off
on
10
on
off
on
off
on
11
off
off
on
off
on
12
on
on
off
off
on
13
off
on
off
off
on
14
on
off
off
off
on
15
off
off
off
off
on
