5.3 Soft Limit & JOG & Quick Stop
5.3.1 Soft Limit
The soft limit function means that the internal position feedback of the drive is compared with the limit position, an alarm and
stop when determining that the motor exceeds the limit position. Soft limit function is universal for linear movement and
rotating movement.It is not requiring hardware, eliminating malfunction due to poor wiring contact, and it can prevent
mechanical slip and abnormal action with internal position comparison. And the EM2RS series drives carry out homing to find
the mechanical home before the soft limit function can be activated.
Relevant objects:
Register
address
Par. # in
software
Definition
Range
Default
Value
Description
0x6000
Pr8.00
PR control setting
32767
-
Bit1: Soft limit.. 0--disable, 1--enable
0x6006
Pr8.06
Soft limit+ H
32767
0x7FFF
Soft limit positive high bits
0x6007
Pr8.07
Soft limit+ L
32767
0xFFFF
Soft limit positive low bits
0x6008
Pr8.08
Soft limit- H
32767
0x8000
Soft limit negative high bits
0x6009
Pr8.09
Soft limit- L
32767
0
Soft limit negative low bits
0x6016
Pr8.22
Soft limit quick
stop time
-
-
Deceleration time after triggering the soft limit, unit: ms
5.3.2 JOG
The JOG function allows fine tuning of the drive, or fine adjustment of the position of the device, or forward and reverse
velocity operation of the motor. Commonly used for velocity operation.

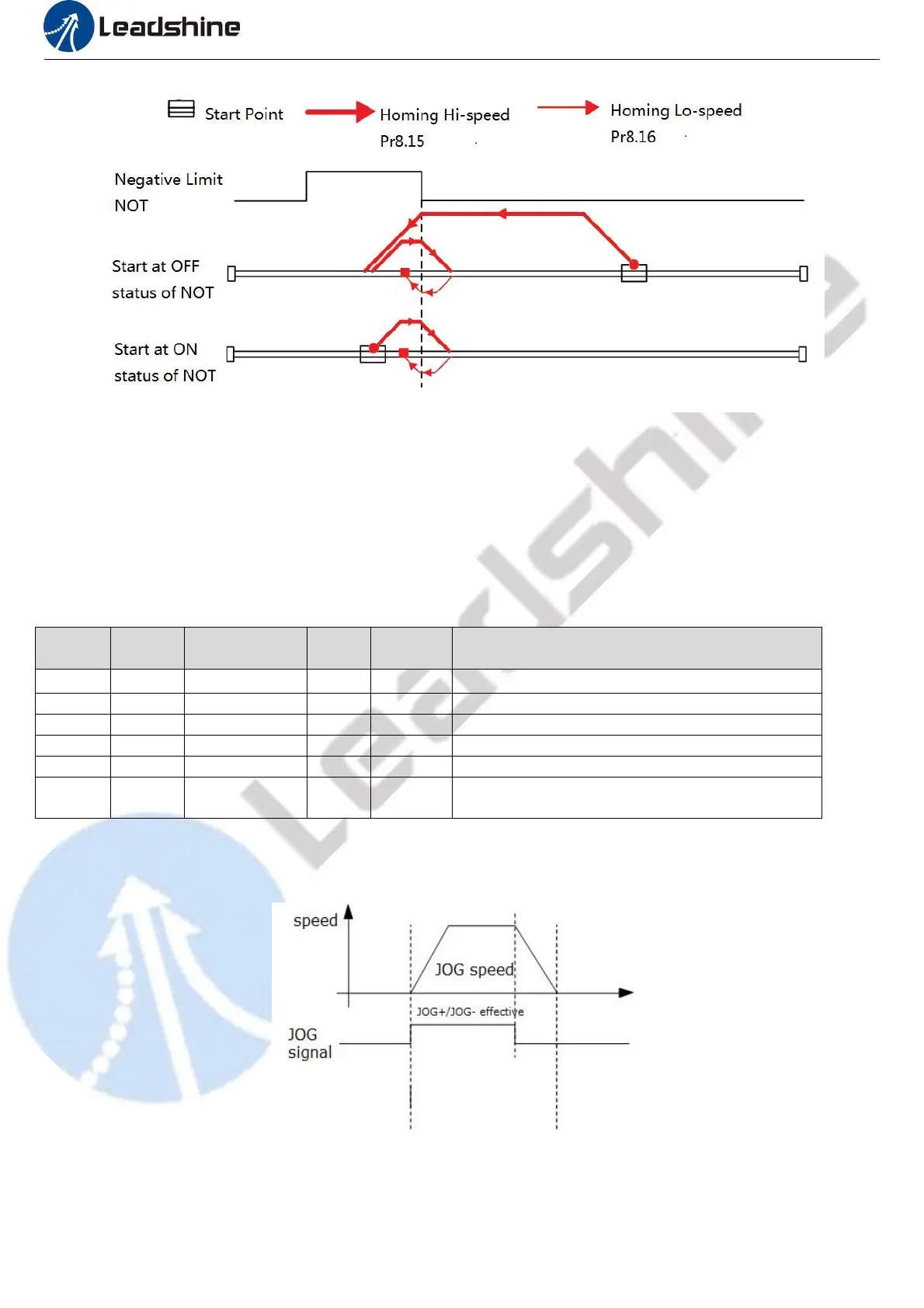

JOG time sequence
Relevant objects:
