EM2RS Modbus RS485 Stepper Drive User Manual
6.2 Basic Operation of Serial Port Tools Software
This is to control the motor through RS485 communication, user can realize the movement of the motor by sending commands
to the corresponding registers.
6.2.1 Preparation and Steps

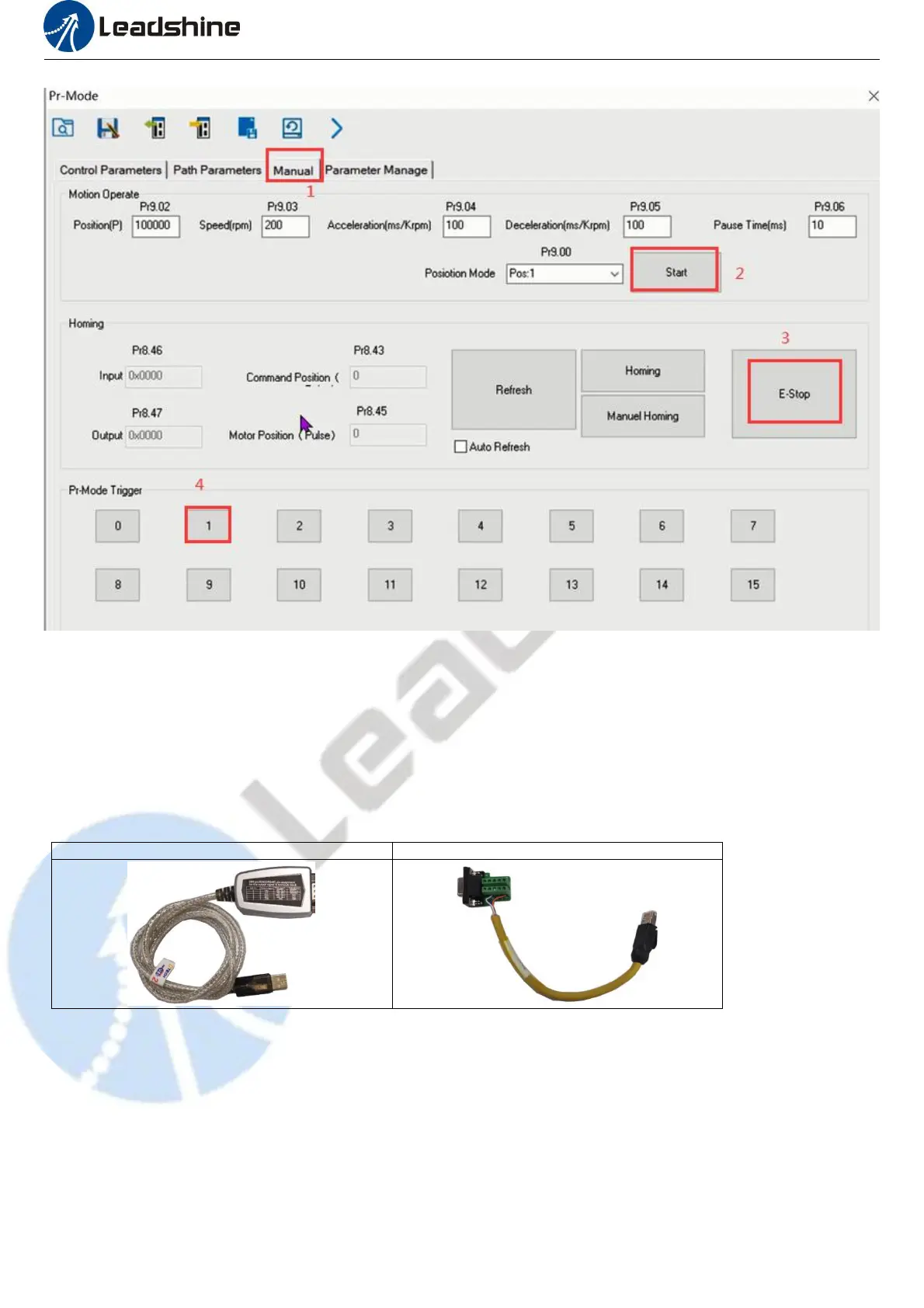

(1) RS485 tuning cable
(2) COM port selection, as shown in the figure below, the communication port is COM3:
RS458 to USB (User-provided)
RS485 DB9 to RJ45 (User-provided)
