LeCroy Waverunner2 LT374 Series User Manual

Rev. D Performance Verification 5-15
On line 2 :
Measure mean of B
On line 3 :
Measure mean of C
On line 4 :
Measure mean of D
!
For the low sensitivities:
2 mV, 5 mV, 10 mV and 20 mV/div
., connect the test
equipment as shown in Figure 5-1.

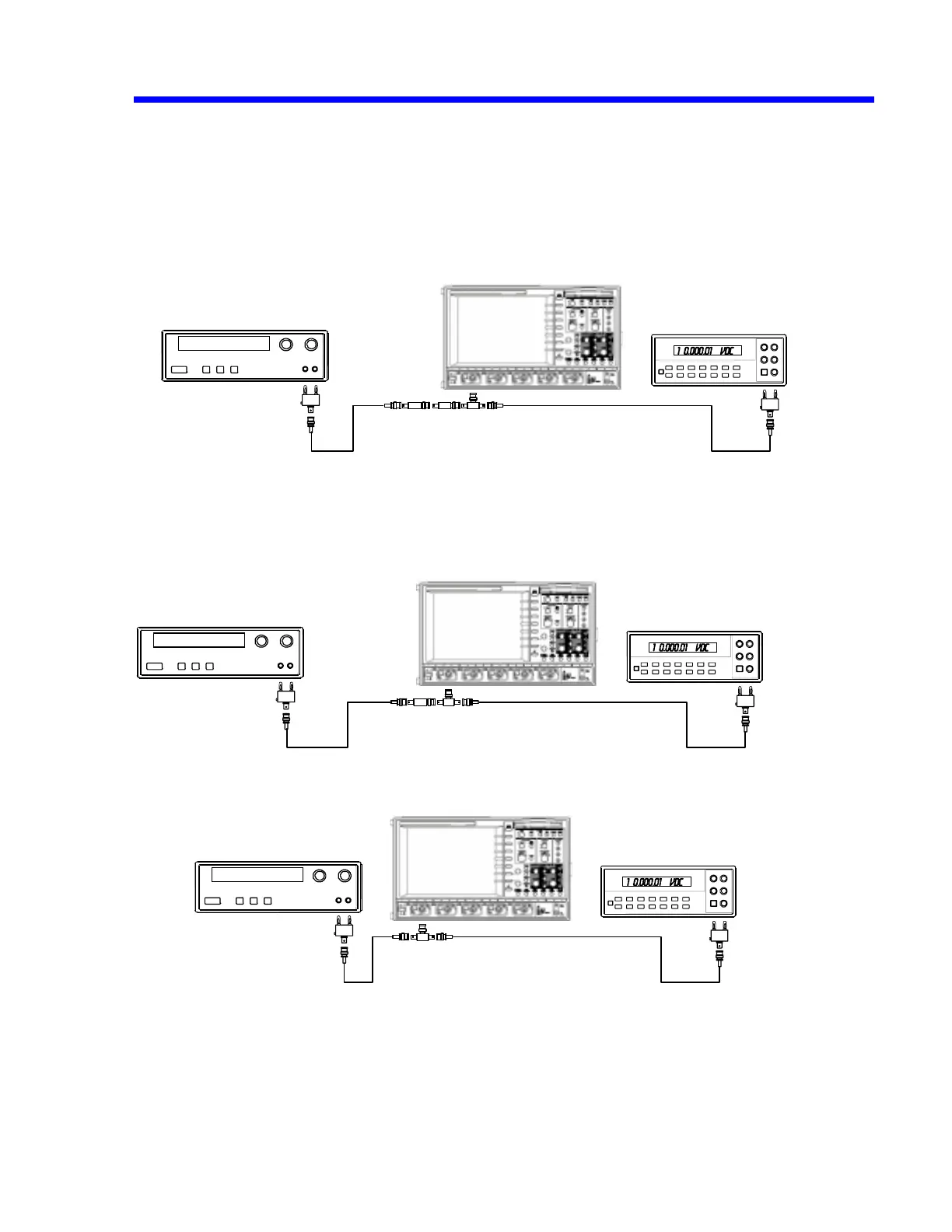

Figure 5-1: DC 1M
Ω
ΩΩ
Ω
Accuracy Equipment Setup for 2,5,10 and 20 mV/div.
!
For 50 mv/div & 100 mV/div, connect the test equipment as shown in Figure 5-2.
!
For 5V/div, no attenuator is required, connect the test equipment as shown in
Figure 5-3.
Figure 5-2: DC 1M
Ω
ΩΩ
Ω
Accuracy Equipment Setup for 100 mV/div
Figure 5-3 : DC 1M
Ω
ΩΩ
Ω
Accuracy Equipment Setup for 5V/div.
!
For each
DSO Volts/div
, set the output of the external
DC voltage reference
source
as shown in Table 5, column PS output.
DC Power Supply
DMM
DC Power Supply
DMM
20
DB
20
DB
20db 20db
DC Power Supply
DMM
20
DB
20db
