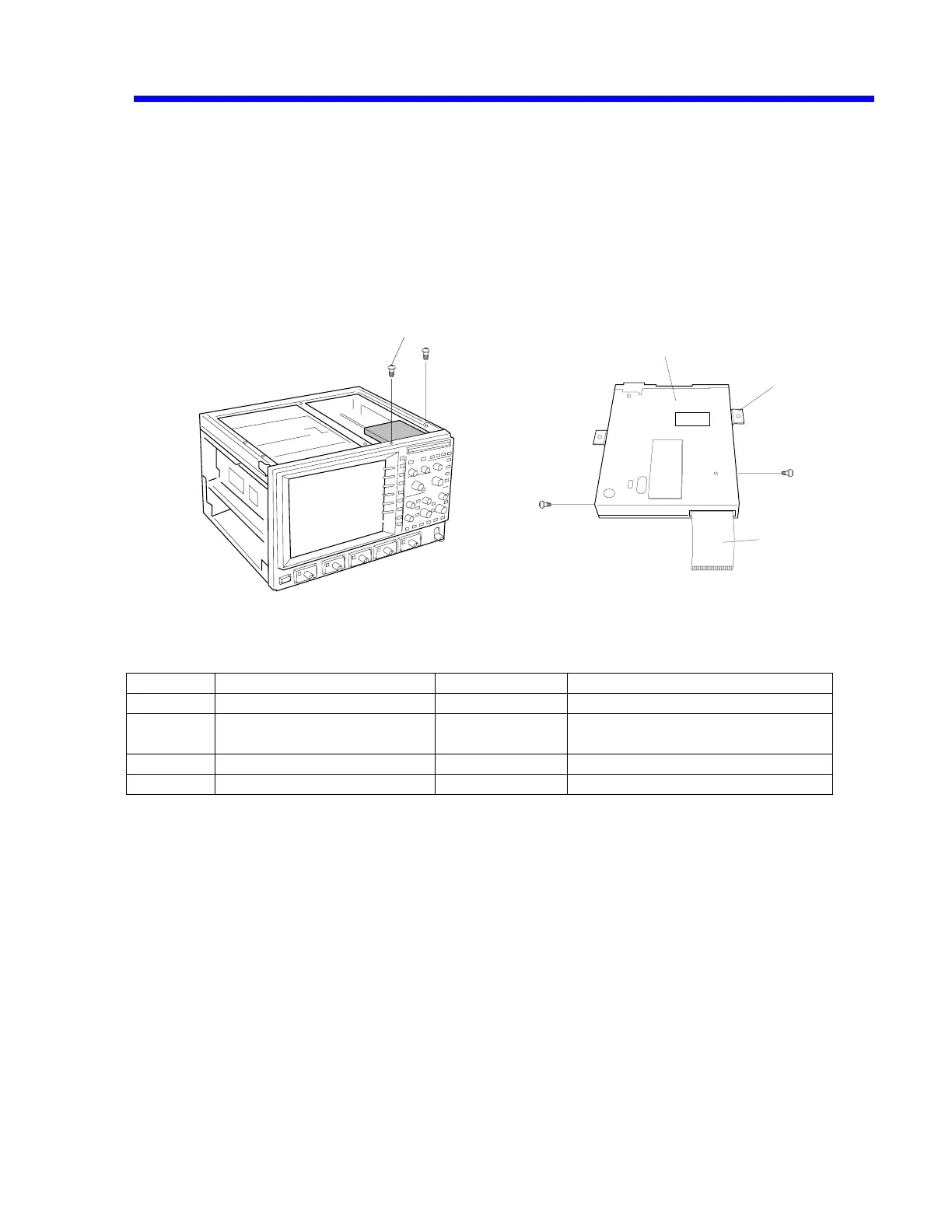

D. Removal of the Floppy Assembly
Remove the upper and bottom covers.
• D1 : Remove the CPU BOARD J2/FFC cable from the CPU.
• D1 : Remove two M3 x 6 screws on the TOP FRAME R and FRONT FRAME A.
[D1] [D2]
1
2
3
4
5
Floppy Replaceable Parts
Item IWATSU Part Number Quantity Description
1 MKB130062 2.0 Screw M3x6
2 DMB020691 1.0 FD DRIVE WIDE-00B
See Fig [D2]
3 KBA785211 1.0 FDD SUPPORT PLATE
4 MSQ903521 2.0 Screw M2.5x4
Mechanical Part & Removal 7-7
