Lectrosonics SR Series - Adapters for Stand-Alone Use; Installing Rear Panel Adapters; Battery Adapter

SRa5P and SRa Dual Receivers
LECTROSONICS, INC.
10

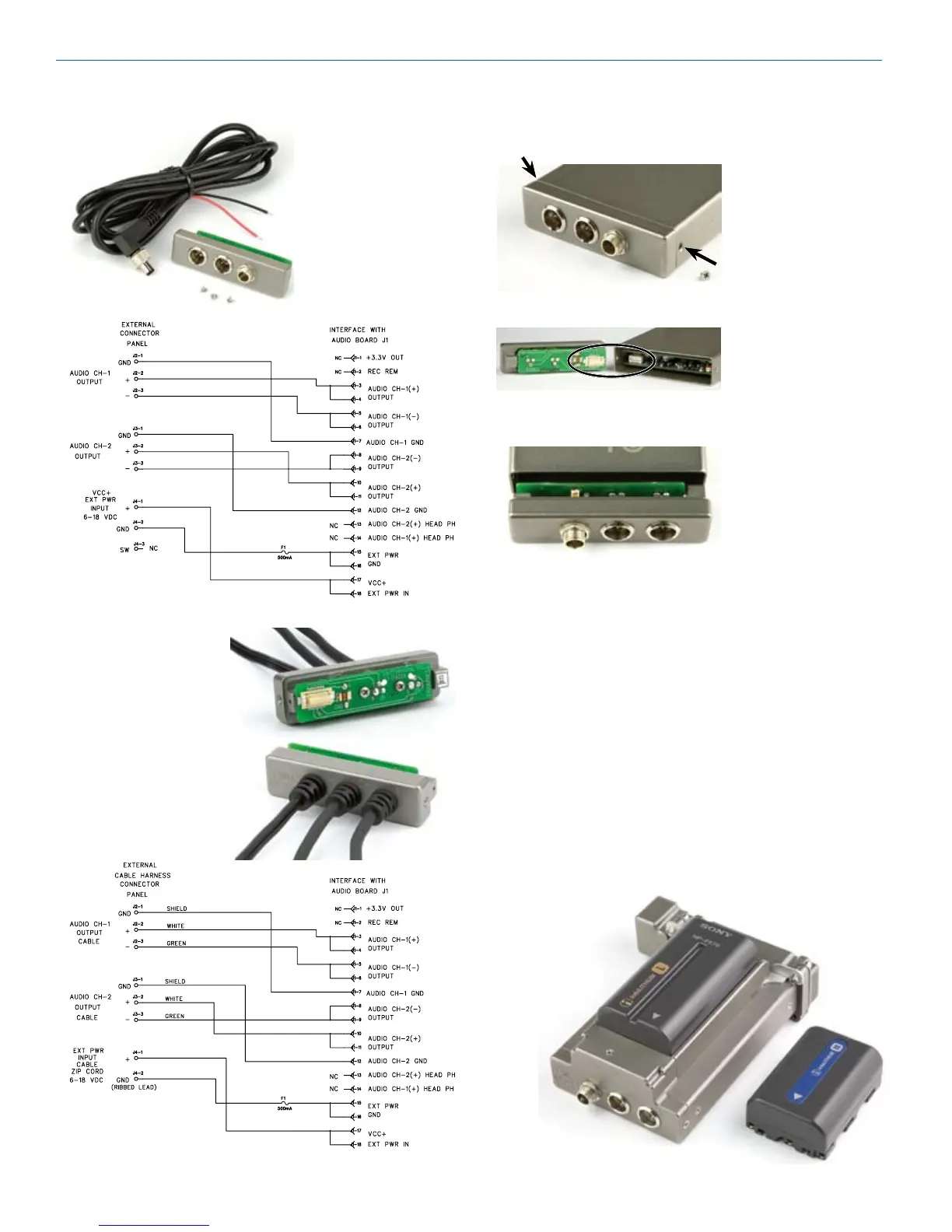

Installing Rear Panel Adapters
Installationoftherearpaneloutput/poweradaptersis
the same for all models.
Panels are held in
place by two phil-
lips head screws
on the sides of the
housing.
Connections
between the panel
and main circuit
board are made
via miniature mat-
ing connectors.
Align the mating
connectors and
slide the panel
straight into the
housing until the
screw holes align
with the housing.
Adapters for Stand-alone Use
SREXT
For stand-alone use,
this kit includes a
rear panel with two
TA3malejacksfor
the balanced out-
puts and a power
jackwithalocking
connector. Trim the
power cable to the
desired length.
SRHARNESS
Idealforuseinpor-
table “bag systems.”
Two balanced output
cables and the power
cable are 6 feet long.
Cutthecablestothe
desired length and
terminate as needed.
Battery Adapter
The receiver can be powered with an optional “battery
sled” adapter that attaches to the outside of the housing
Two “mirror image” versions of the adapter are available:
SRBATTSLEDTOP Positions the battery on top of the
receiver for mounting on the top of the camera with the
LCDorientedcorrectly.
SRBATTSLEDBOTTOM Positions the battery on the
bottom of the receiver for mounting on the bottom of the
camerawiththeLCDorientedcorrectly.
The adapter includes an integrated connector plate
and accepts L and M type video camera rechargeable
batteries. The adapter sled does not include charging
circuitry. Batteries must be recharged with their respec-
tive chargers.
The external
powerjackin-
cludes a switch
that disconnects
the battery
when a plug
is inserted.
