Lectrosonics SR Series - Getting Started with Your Receiver; Quick Start Summary

UHF Digital Hybrid Wireless
®
Rio Rancho, NM
3
Digital Hybrid Wireless
®
The Lectrosonics Digital Hybrid Wireless
®
uses innova-
tive technology to combine the advantages of digital
audio with the advantages of analog RF transmission,
thus delivering the superior sound quality of a digital
system and the excellent range of an analog system. A
proprietary algorithm encodes the digital audio informa-
tion into an analog format which can be transmitted in
a robust manner over an analog FM wireless link. The
receiver employs state-of-the-art filters, RF amplifiers,
mixers and detector to capture the encoded signal and
a DSP recovers the original digital audio.
This digital/analog hybrid technique has some very
beneficial properties. Because the information being
transmitted is digitally encoded, immunity to noise is
much higher than what a compandor can offer. Because
the encoded audio is sent in analog format, spectral
and power efficiency and operating range are not com-
promised.
Under weak RF conditions, the received signal de-
grades gracefully, like an analog system, delivering
as much usable audio as possible at maximum range.
Since the audio is free of compandor artifacts, pumping
and breathing problems are also greatly reduced.
Quick Start Summary
The following checklist includes the minimum required
settings to start using the receiver.
• Installeitherstand-aloneorcameraslotadapterkit,
the antennas and position the receiver as it will be
used (see pages 9-12).
• Connectpowertothereceiver(seepages10,11).
• SettheCOMPAT(compatibility)modeforthetrans-
mitters to be used (see pages 15,16).
• Findclearoperatingfrequenciesforoneorboth
receivers (see pages 19-21).
NOTE:Whenoperatinginthe2-channelmode,
always set Receiver 2 to a higher frequency than
Receiver1byleast400kHz(fourstandardsteps
on the switches).
• Settransmittersonthematchingfrequencies(see
transmitter manual).
• Verifytransmittersaresettothesamecompatibility
mode as the receiver (see transmitter manual).
• Adjusttransmitter/sinputgaintomatchvoicelevel
and mic position (see transmitter manual).
• Adjustreceiveroutputlevelasneededforthecam-
era or mixer input level desired (see pages 15,16).
SRa
This is the current version of the basic receiver with de-
tachable whip antennas and the audio output on the rear
panelonly.WillworkwiththeOCTOPACKmulticoupler.
SR
This is the current version of the basic receiver with per-
manently attached whip antennas and the audio output
on the rear panel only.
SRa5P
The current version of the full-featured receiver. Detach-
able whip antennas and second audio output on left
hand side of the front panel. Will work with the
OCTOPACKmulticoupler.
Model Differences

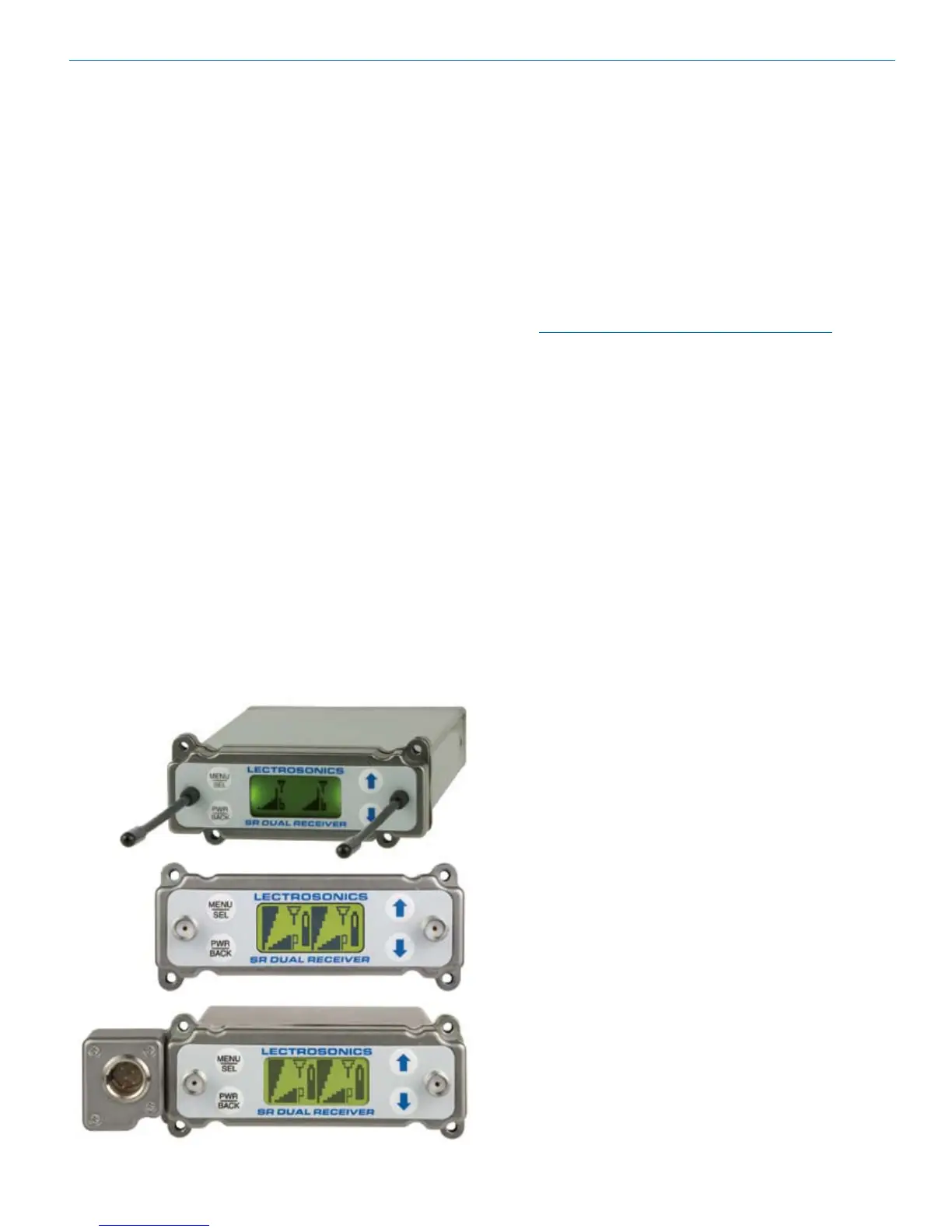

InthismanualyouwillseeboththeSRa5PandSRapicturedinvariouscontexts.Thereisnofunctionaldifference
betweenthetwomodelsotherthanthesecondoutputjackonthe5Pversion,soeitherreceivermaybeusedaseither
is pictured.
