Lectrosonics SR Series - Audio Output Cables; External Power Cables; External Power Supply

UHF Digital Hybrid Wireless
®
Rio Rancho, NM
11

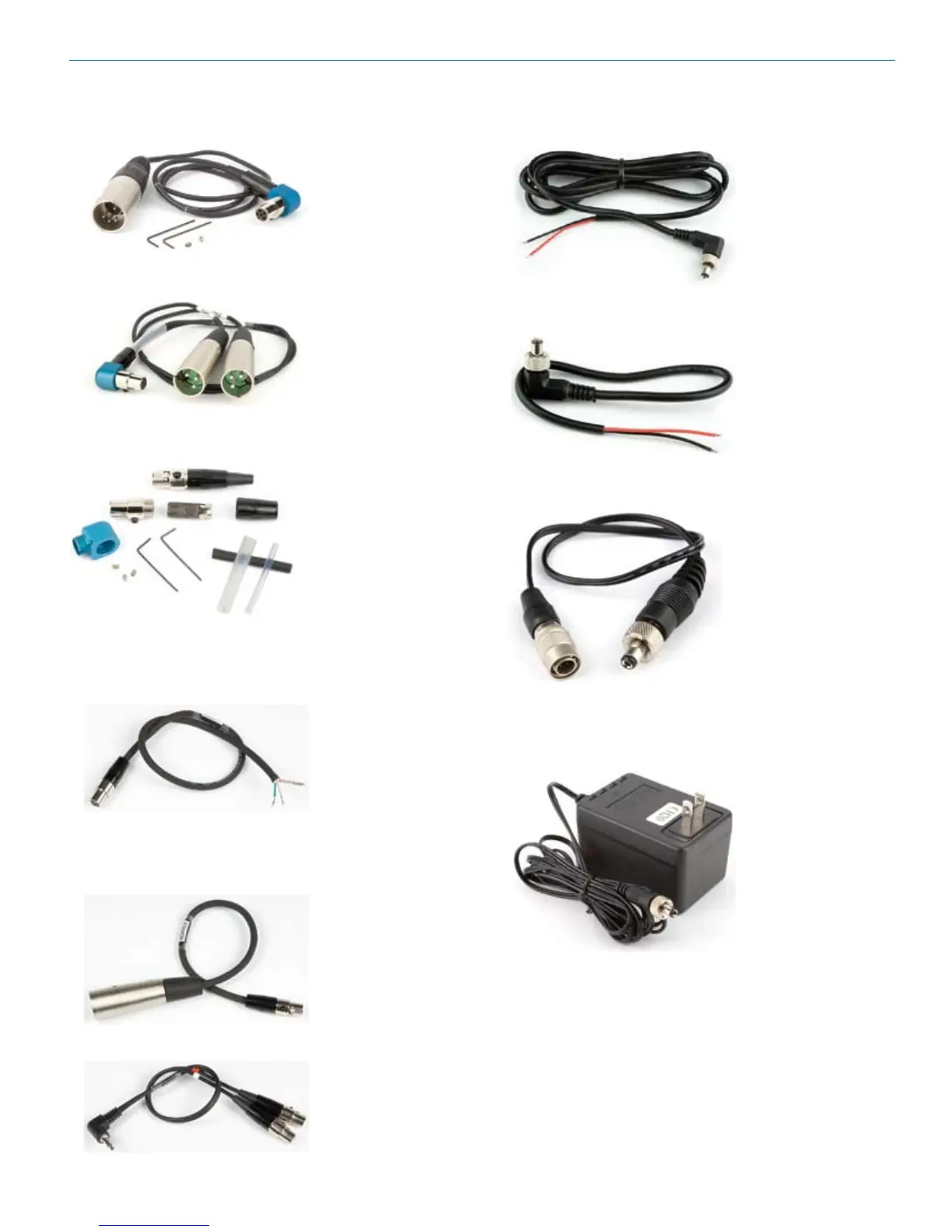

Audio Output Cables
MCSR5PXLR5P
Right angle TA5F plug
to 5-pin XLR; balanced
outputs; 25 inches long.
For SRa5P/5P outputs.
MCSR5PXLR2
Right angle TA5F plug to
two 3-pin XLR; balanced
outputs; 20 inches long.
For SRa5P/5P outputs.
RATPAC Adapter Kit
Adapter kit to build either
a 3-pin or 5-pin TA Series
right angle connector.
Includes standard 5-pin
connector, modified 3-pin
insert and backshell,
aluminum right angle
housing, strain relief
tubing, set screws and
wrenches.
MCSRPT
12 inch long TA3 female to stripped and tinned wires for
balanced output.
PIN 1: Shield
PIN 2: Audio (+) white
PIN 3: Audio (-) green
MCSRXLR
12 inch long TA3 female to XLR male 3-pin for balanced
output.
PIN 1: Shield
PIN 2: Audio (+)
PIN 3: Audio (-)
MCSRTRS
Male 3.5 mm TRS plug
to two female TA3 (mini
XLR) connectors for
dual channel use.
External Power Cables
21747
Locking LZR style plug
to stripped and tinned;
6 feet long.
21746
Locking LZR style plug
to stripped and tinned;
12 inches long.
PS200
Hirose 7-4 pin to LZR
type locking plug, 12”
long.
External Power Supply
TheCH20powersupplywithalockingLZRpowerjack;
110VACinput,12VDCregulatedoutput;400mAmax.
