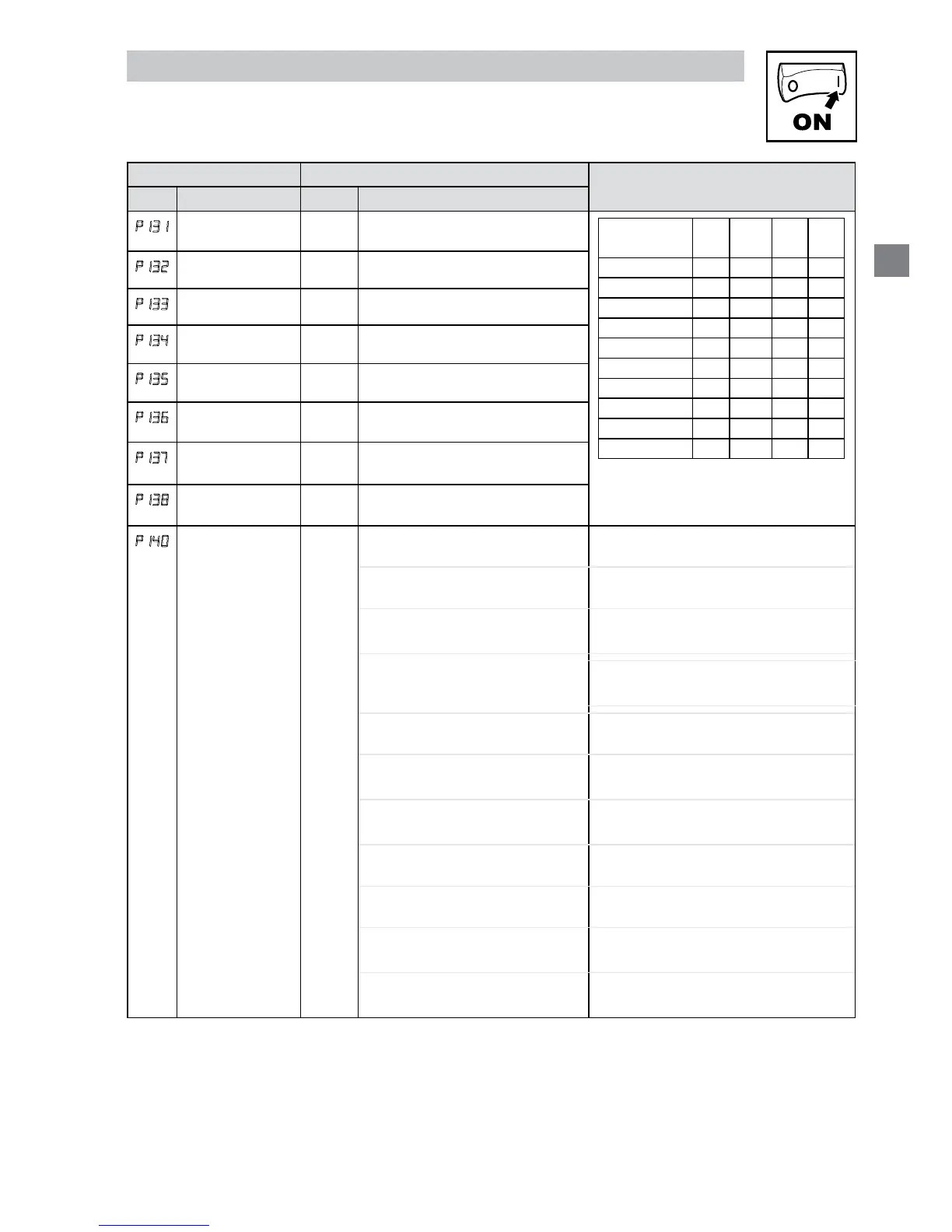

Code Possible Settings
IMPORTANT
No. Name Default Selection
P131
Preset Speed #1 0.0 0.0 {Hz} 500
PRESET
SPEED
13A 13B 13C 13D
1 X -- -- --
2 -- X -- --
3 -- -- X --
4 X X -- --
4 (alternate) -- -- -- X
5 X -- X --
6 -- X X --
7 X X X --
8 (alternate) -- X -- X
8 (alternate) -- -- X X
P132
Preset Speed #2 0.0 0.0 {Hz} 500
P133
Preset Speed #3 0.0 0.0 {Hz} 500
P134
Preset Speed #4 0.0 0.0 {Hz} 500
P135
Preset Speed #5 0.0 0.0 {Hz} 500
P136
Preset Speed #6 0.0 0.0 {Hz} 500
P137
Preset Speed #7 0.0 0.0 {Hz} 500
P138
Preset Speed #8 0.0 0.0 {Hz} 500
P140
Relay Output
TB-16, 17
0 0 None Disables the output
1 Run Energizes when the drive is running
2 Reverse Energizes when reverse rotation is
active
3 Fault
De-energizes when the drive trips, or
power is removed
4 Inverse Fault Energizes when the drive trips
5 Fault Lockout P110 = 3...6: De-energizes if all
restart attempts fail
6 At Speed Energizes when output frequency =
commanded frequency
7 Above Preset Speed #6 Energizes when output freq. > P136
8 Current Limit Energizes when motor current = P171
9 Follower Loss (4-20 mA) Energizes when 4-20 mA signal falls
below 2 mA
10 Loss of Load Energizes when motor load drops
below P145; see also P146
• Speed setting is used by P158
• 13D available on 15HP (11kW) &
higher drives.
