3.Operating and Programming
3.2 Quick Start
8

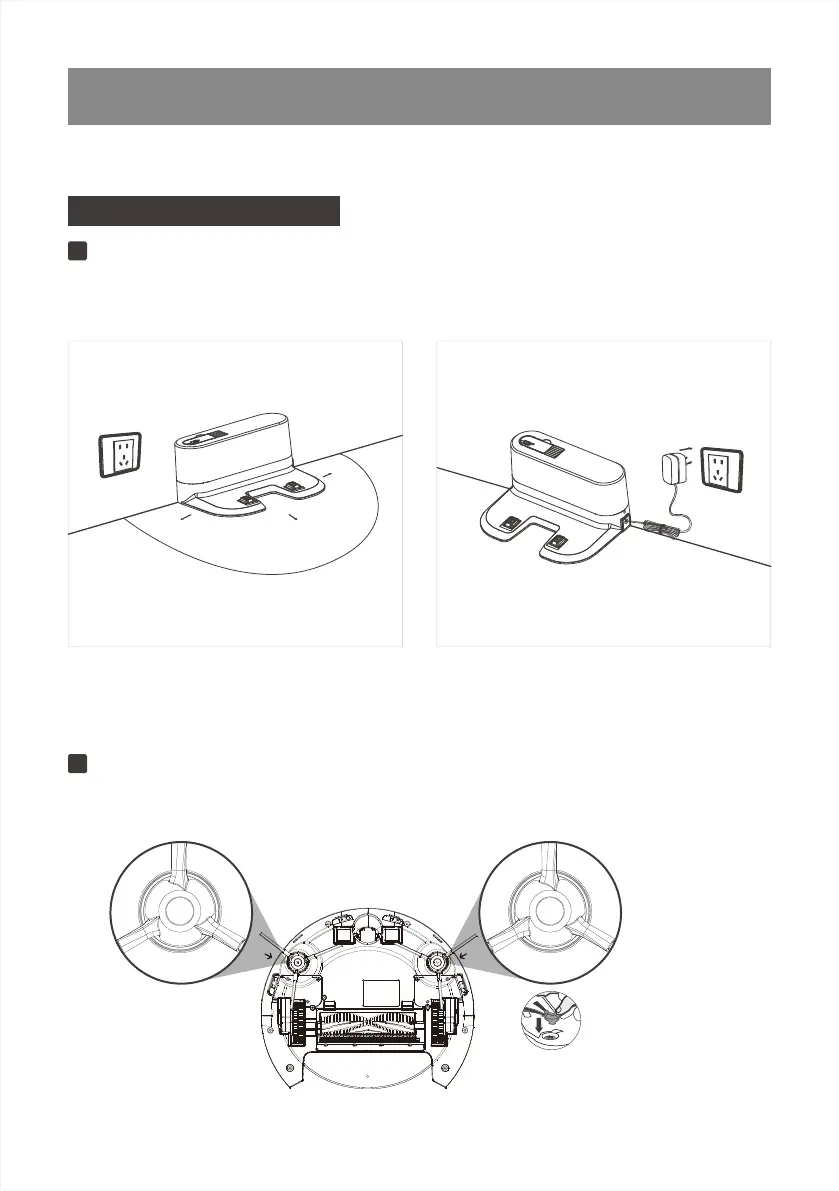

Place the Charging Dock on a level floor surface against the wall with the base perpendicular
to the ground. Keep the immediate area 2m (6.6’) in front of the charger and 1 m (3.3’) on bo
thsides of the charger clear of objects and reflective surfaces.Plug the Charging Dock in. The
Power Indicator Light on the Charging Dock glows.
Place the charging Dock Connect the power supply
Charging Dock Placement
Connect the adapter to the charging Dock
1
Attach Side Brushes to the bottom of robot by pressing a brush into eachslot until it clicks.
Install Side Brushes
2
1M
1M
2M
side brush side brush
