Most devices of the Automation system are installed with the
same procedures used for conventional electrical system
devices, namely:
• Flush-mounted in device-holder boxes;
• In switchboards on DIN rail.
Some devices are installed with different procedures; for
example actuators can be directly installed inside the load to
be controlled.
The advantages given by the installation flexibility of the
radio devices can be used for expanding a wire system in
rooms that are not set up for SCS BUS cabling.
This can be achieved by connecting Gateway SCS/ZigBee
®
:
• Receiving to control any actuator of the wire system by a
radio control (remote control or flat control);
• Transmitting for controlling any radio actuator by a wire
system control.
Wire-system devices communicate with each other
through a two-conductor SCS BUS cable.
(Sheathed no-polarised connectors)
The range includes devices for Basic functions such as
controls and actuators as well as devices for advanced
functions such as the scenario control, the IR remote
control receiver and the Touch Screen.

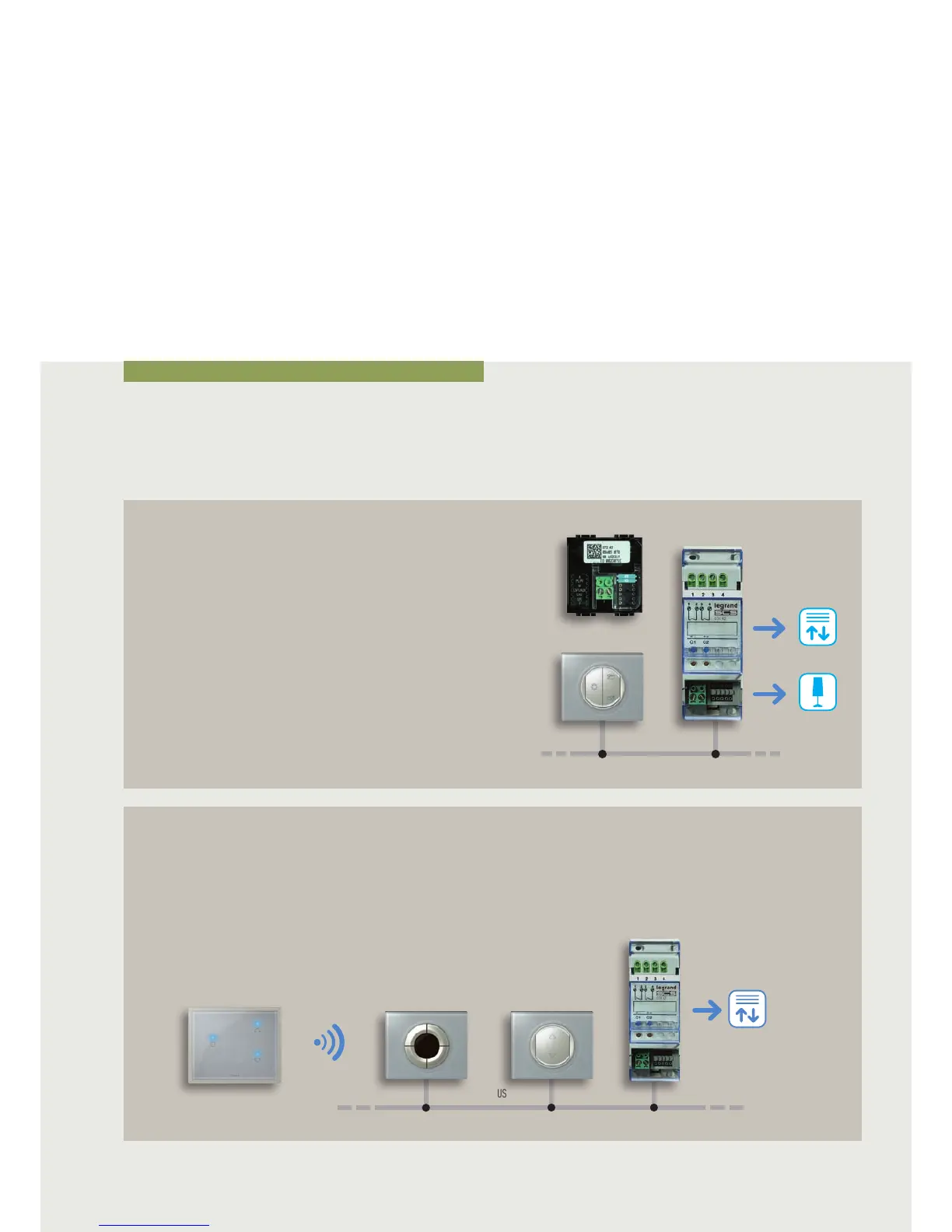

TYPE OF SYSTEMS AND DEVICES
COMBINED RADIO/WIRE
WIRE SYSTEM
Introduction
to the Automation system
Actuator
Touch radio control
for rolling shutter
Radio receiving
interface
Rolling shutter
control
SCS BUS
Rolling
shutter
Control
DIN actuator
SCS BUS
Lighting
Rolling
shutter
DIN actuator
