A maximum of 9 room addresses can be
managed in a single system. For every
room it will be possible to manage up
to a maximum of 9 addresses, hence 9
actuators (a total of 81 addresses).
Other associations to one or more groups
are added to these addresses.

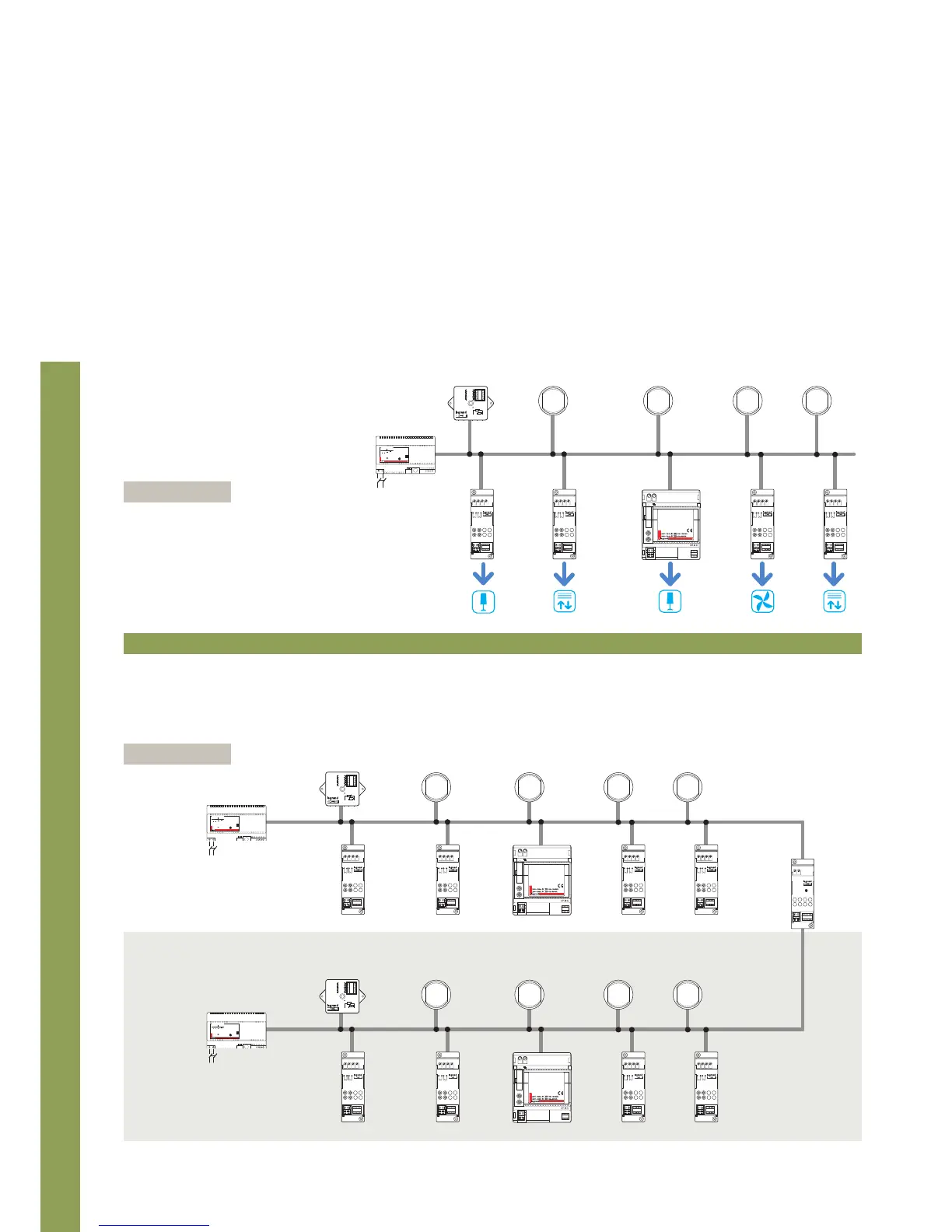

EXTENDED SYSTEMS (LOGICAL EXPANSION)
Within big houses or in service/industrial sectors, there may be the need to carry out Automation systems characterised by a number
of devices that may exceed the above-mentioned address limit. In this case it is possible to carry out a complex Automation system by
connecting several Automation systems (maximum 9) to a common bus (main riser), using SCS/SCS gateway - 035 62 - configured in
“logical expansion” mode.
Maximum number of devices
which can be configured
Max 81 addresses
Max 10 x 81 addresses
OUT
IN
SCS/SCS
gateway
035 62
Automation
system No. 2
Basic contact
interface
Basic contact
interface
Rolling shutter
control
Rolling shutter
control
Dimmer
control
Dimmer
control
Power supply
Power supply
Fan
control
Fan
control
Rolling shutter
control
Rolling shutter
control
Automation
system No. 1
Basic contact
interface
230
Vac
230
Vac
