SCS BUS AUTOMATION SYSTEM
GENERAL RULES FOR INSTALLATION
III-126
Special systems for which the availability of more than 810
addresses is required can be made using one or more Web
Servers 5739 92 and a LAN network which forms the connection
infrastructure.

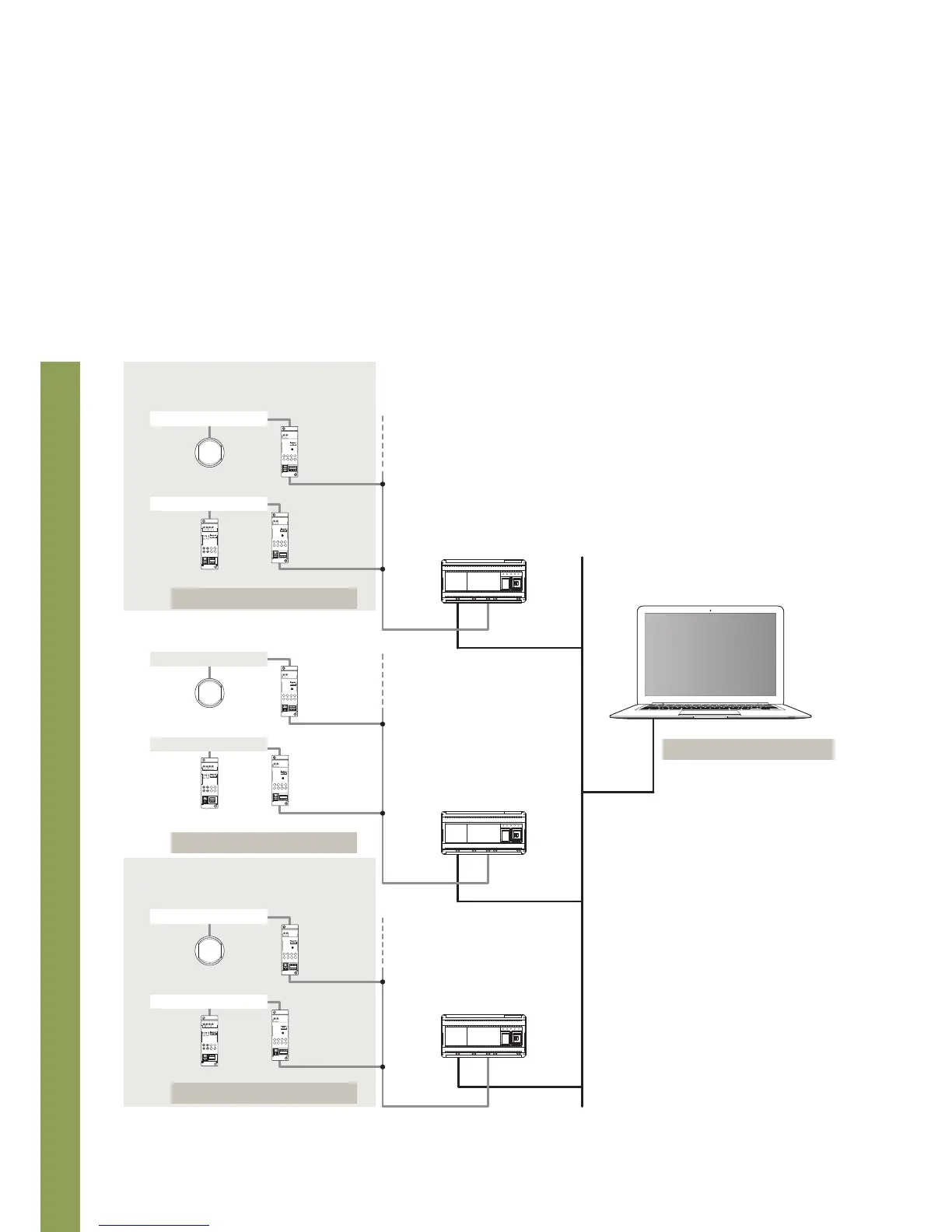

Referring to the picture below, in this case the extended system
is made up of two or more systems for each of which a maximum
of 810 addresses can be configured. The centralised control of
the functions is obtained through Personal Computer, connecting
directly to the Web Server fixed IP address and working on Web
pages with preconfigured icons.
Maximum number of devices
which can be configured
SCS BUS
Web Server
5739 92
LAN
network
N is the number of the WEB
SERVER connected
Max Nx10x81 addresses
Control
Local BUS
Local BUS
Local BUS
Local BUS
Control
System 3 Max 10 x 81 addresses
Local BUS
Local BUS
Control
SCS BUS
SCS BUS
