LEGRAND celiane - Page 91

CÉLIANE TECHNICAL GUIDE
III-133
sCs Bus automation system

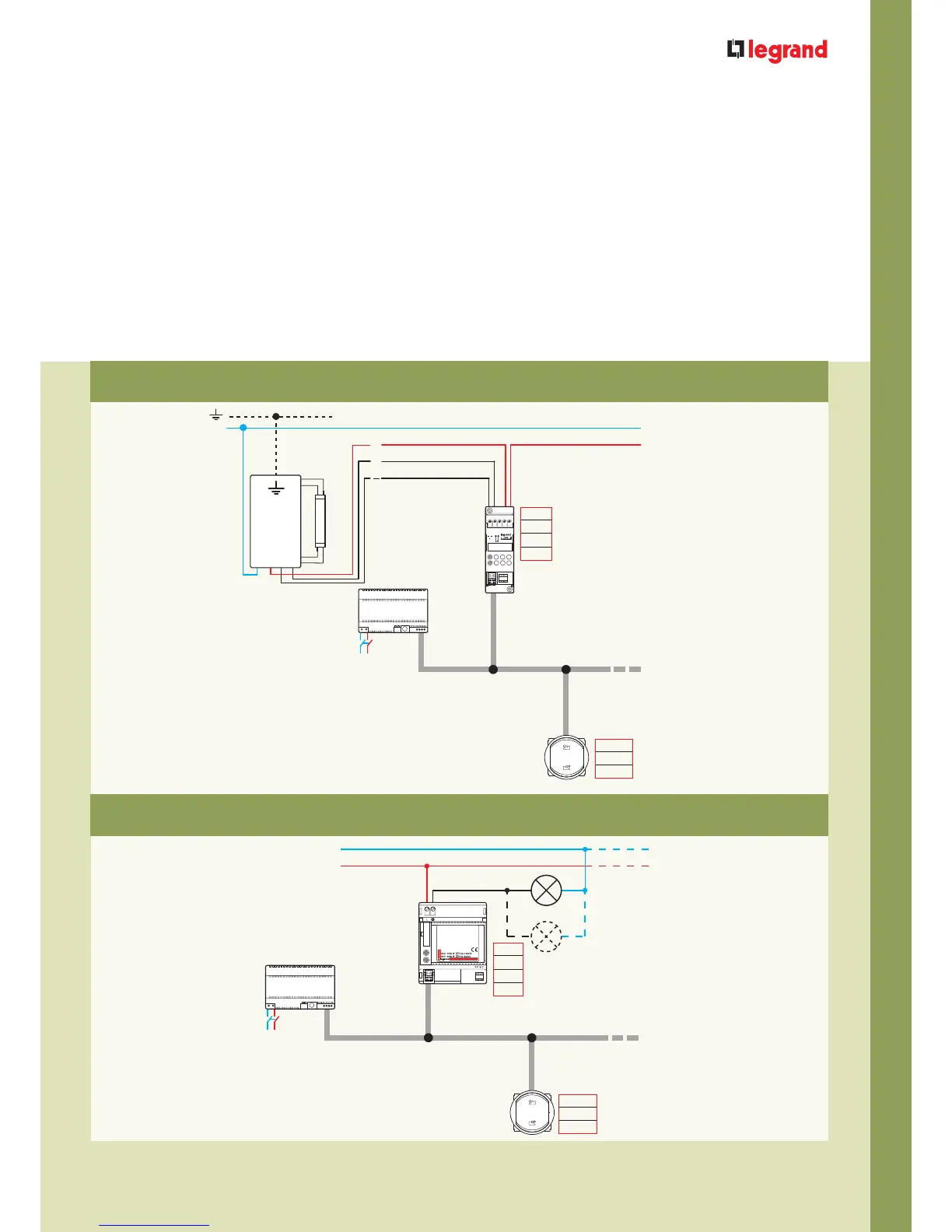

SWITCHING ON AND OFF AND BRIGHTNESS ADJUSTMENT OF FLUORESCENT LAMPS BY MEANS
OF THE “BALLAST”
SWITCHING ON AND OFF AND BRIGHTNESS ADJUSTMENT OF INCANDESCENCE LAMPS, HALOGEN AND
FERROMAGNETIC TRANSFORMERS
L
+
N L - +
NC21 3 4
036 56
C1
To other
devices
SCS BUS
Control
Ballast
DIN dimmer
1 – 10 V
Power supply
N
L
N
Ballast
N
L
T5H 250 V
06W48
036 52
To other
devices
SCS BUS
Control
DIN dimmer
1000 W
Power supply
Incandescence lamps,
halogen and ferromagnetic transformer
230 Vac
~ Vac
A1 = 2
PL1 = 1
M1 = O/I
A = 2
PL = 1
M = –
G = –
A = 1
PL = 2
M = –
G = –
A1 = 1
PL1 = 2
M1 = O/I
230 Vac
230
Vac
