CÉLIANE TECHNICAL GUIDE
III-141
sCs Bus automation system

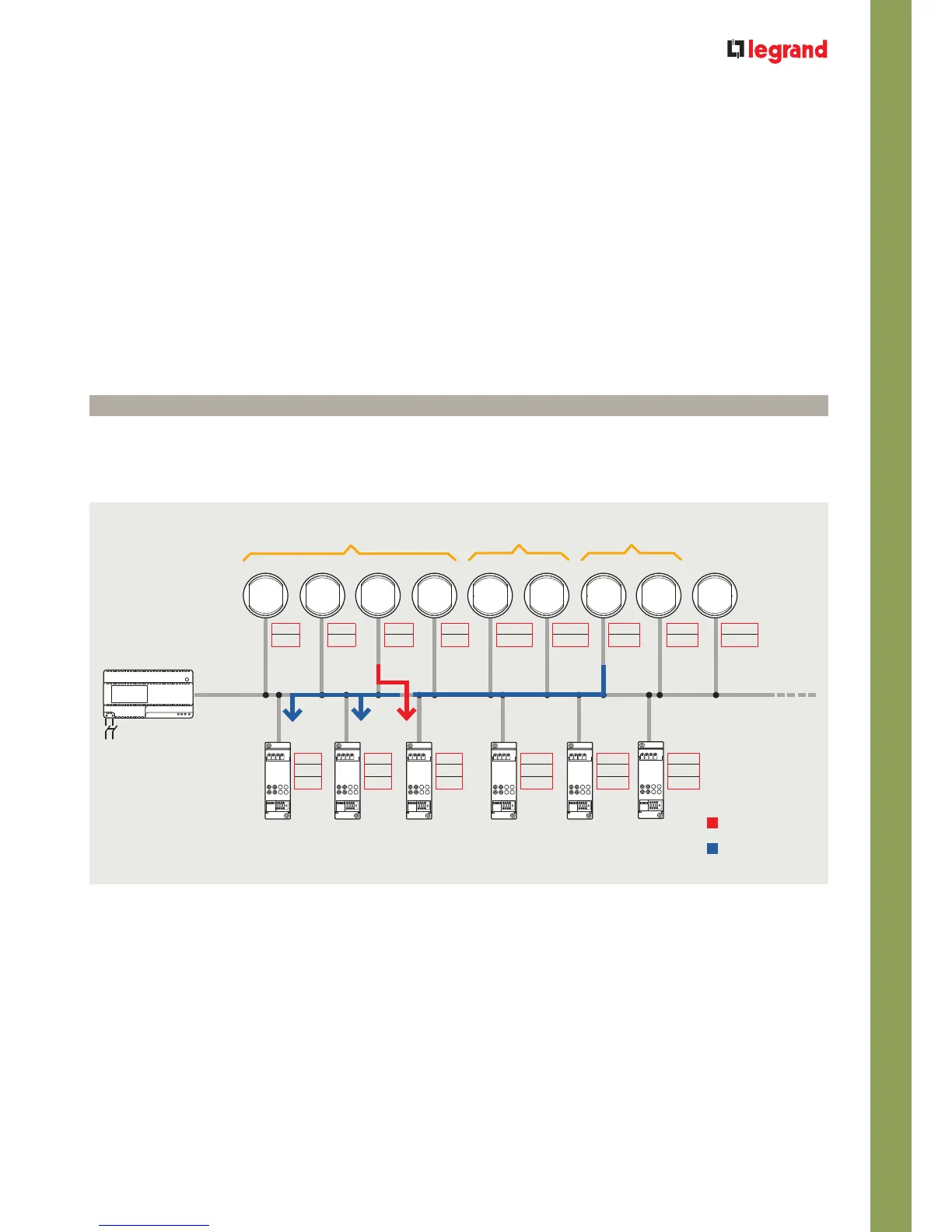

Group control
If control N° 7 is configured with A = GR and PL = 1, this device
sends its control to the actuator identified with G = 1 (belonging to
group 1).
Point-point control
If control N° 3 is configured with A = 1 and PL = 3, this device
sends its control to the actuator identified with A = 1 and
PL = 3.
Point-point control
= Point-point control
= Group control
point-point
controls
group
controls
general
control
room
controls
actuators
SCS BUS
4 5 631 2
1 8 9765432
A = 1
PL = 1
A = 1
PL = 2
A = 1
PL = 3
A = 2
PL = 1
A = AMB
PL = 1
A = AMB
PL = 2
A = GR
PL = 1
A = GR
PL = 2
A = GEN
PL = —
A = 2
PL1 = 1
PL2 = 2
A = 2
PL1 = 3
PL2 = 1
A = 2
PL1 = 2
PL2 = 1
A = 1
PL = 1
G = 1
A = 1
PL = 2
G = 1
A = 1
PL = 3
G = 2
230 Vac
