Operating instructions
Settings and displays
23

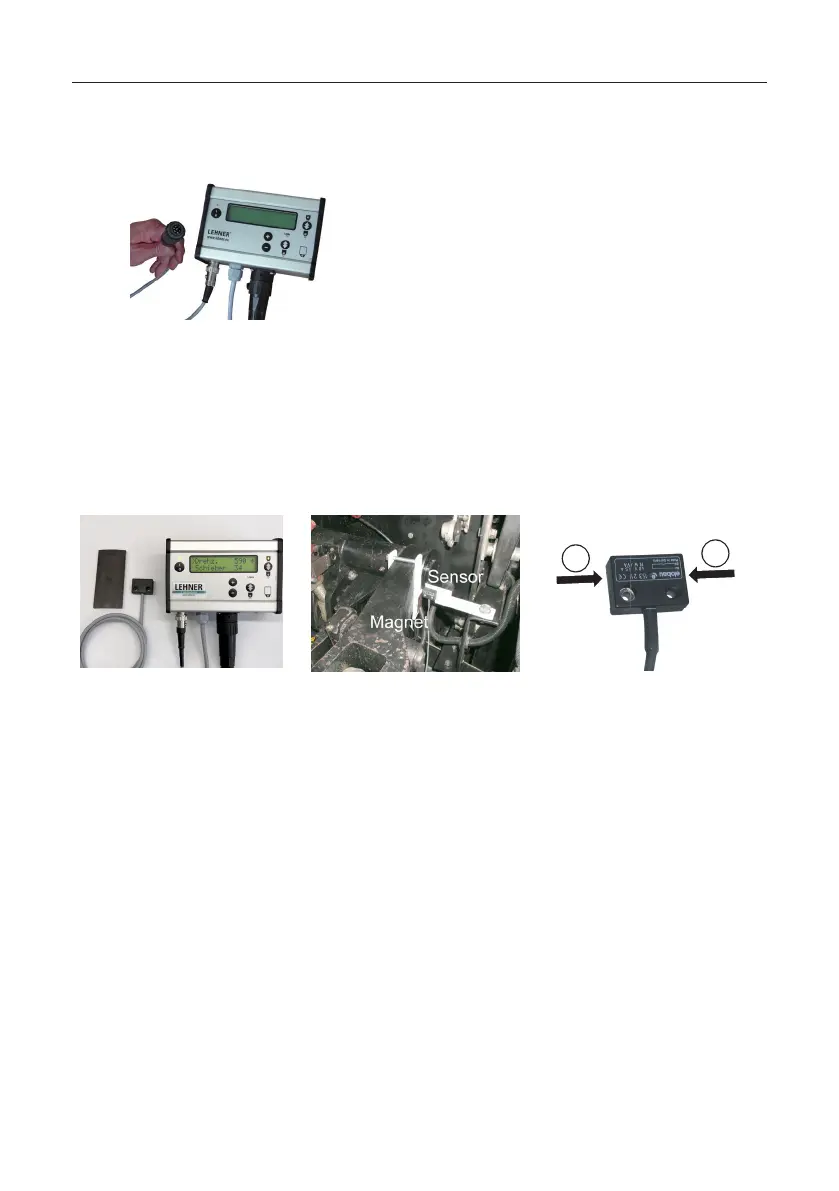

7-pin socket
1. Connect the connecting cable of the control panel to the 7-pin signal
plug of the tractor.
2. Set the EHR signal of the spreader depending on whether the tractor
emits the hydraulic signal when lifting or lowering.
Sensor signal
1
1
1. Secure the sensor in the joint area of the lower link.
2. Secure the magnetic encoder to the lower link.
3. Set the position of the sensor and the magnetic encoder.
Maximum distance 10 mm.
Hydraulics lowered:
Sensor is not within range of magnetic encoder.
Hydraulics at the height where the slide should close or open:
Sensor has reached limit of range of magnetic encoder.
Hydraulics lifted:
Sensor must still be within the range of magnetic encoder.
When the hydraulics are lifted, the sensor must not go out of range
of the magnetic encoder, as otherwise the slide will open again.
Please note that the contact surfaces 1 of the sensor are only located on
the left and right sides.
