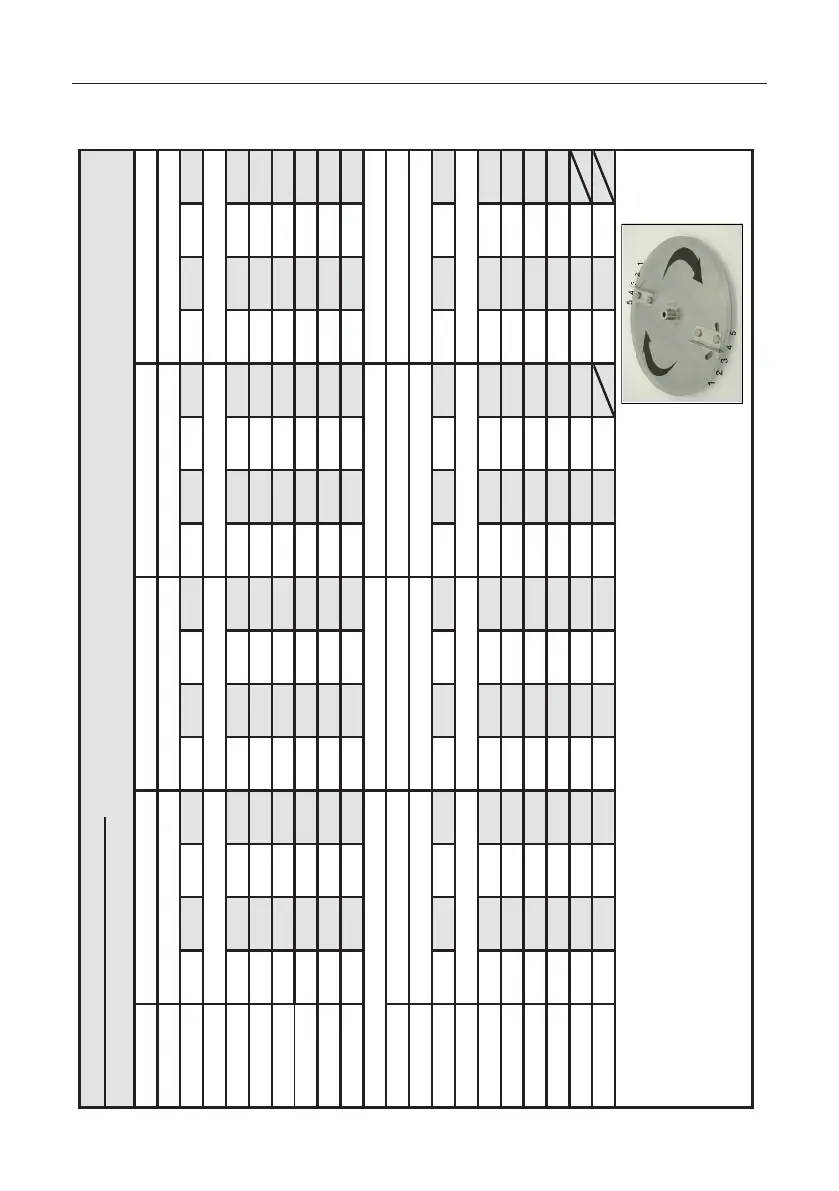

Spreading chart, white mustard
LEHNER SuperVario®
Delivery height: 1.00 m Last updated: 08/2005 Checksettingswitheldsamples.
Working width 2.5 m 3.00 m 4.00 m 4.70 m
rpm 300 rpm
350 rpm
400 rpm
460 rpm
km/h 6 8 10 12 6 8 10 12 6 8 10 12 6 8 10 12
Slide opening:
at 8 kg/ha 18 20 22 24 19 21 23 25 21 24 26 27 22 25 27 28
at 10 kg/ha 19 22 24 26 20 24 26 27 23 26 28 30 24 27 29 31
at 12 kg/ha
21 24 26 28 22 26 27 29 25 28 30 32 26 29 31 35
at 15 kg/ha
23 26 28 31 25 27 29 32 27 30 33 37 28 31 35 39
at 20 kg/ha 26 29 33 36 27 30 35 38 30 35 39 42 31 36 41 45
at 25 kg/ha 28 33 37 40 29 35 39 42 32 39 44 48 35 41 47 51
Working width 6.00 m 9.00 m 12.00 m 15.00 m
rpm
600 rpm
980 rpm
1300 rpm
2300 rpm
km/h 6 8 10 12 6 8 10 12 8 10 15 20 8 10 15 20
Slide opening:
at 8 kg/ha 23 26 28 29 25 28 31 35 30 34 43 50 29 32 41 49
at 10 kg/ha 25 28 31 34 27 31 35 39 34 38 48 57 32 36 47 58
at 12 kg/ha 27 30 35 37 29 34 39 43 38 43 53 65 36 40 54 67
at 15 kg/ha 30 34 38 43 33 39 44 48 43 48 62 76 40 47 63 82
at 20 kg/ha 34 40 45 49 39 45 54 58 50 59 76 91 49 58 82
at 25 kg/ha 38 45 50 54 44 50 60 66 59 67 87 58 70 100
Position of casting blades: Hole 5
At low delivery heights, the speed of the disc must be increased.
Thesuctioneectofthespreadingdiscincreasesasthespeedincreases.
For the universal spreader the slide position is the same up to 50; it just has to be shifted one decimal place, e.g. 41 becomes 4.1.
Above 50, the slide unit for the SuperVario is somewhat larger as it is pear-shaped.
