6. Assembling the Microscope
6.3 Eyepieces and graticules*
Inserting the eyepieces
The eyepieces are inserted into the eyepiece
tubes.
The following eyepieces are offered:
• Eyepieces 10x Non Focusing
• Eyepieces 10x Focusing
For information on the diameter, the viewable
specimen area and the total magnification of the
microscope, refer to the "Technical Description"
chapter.

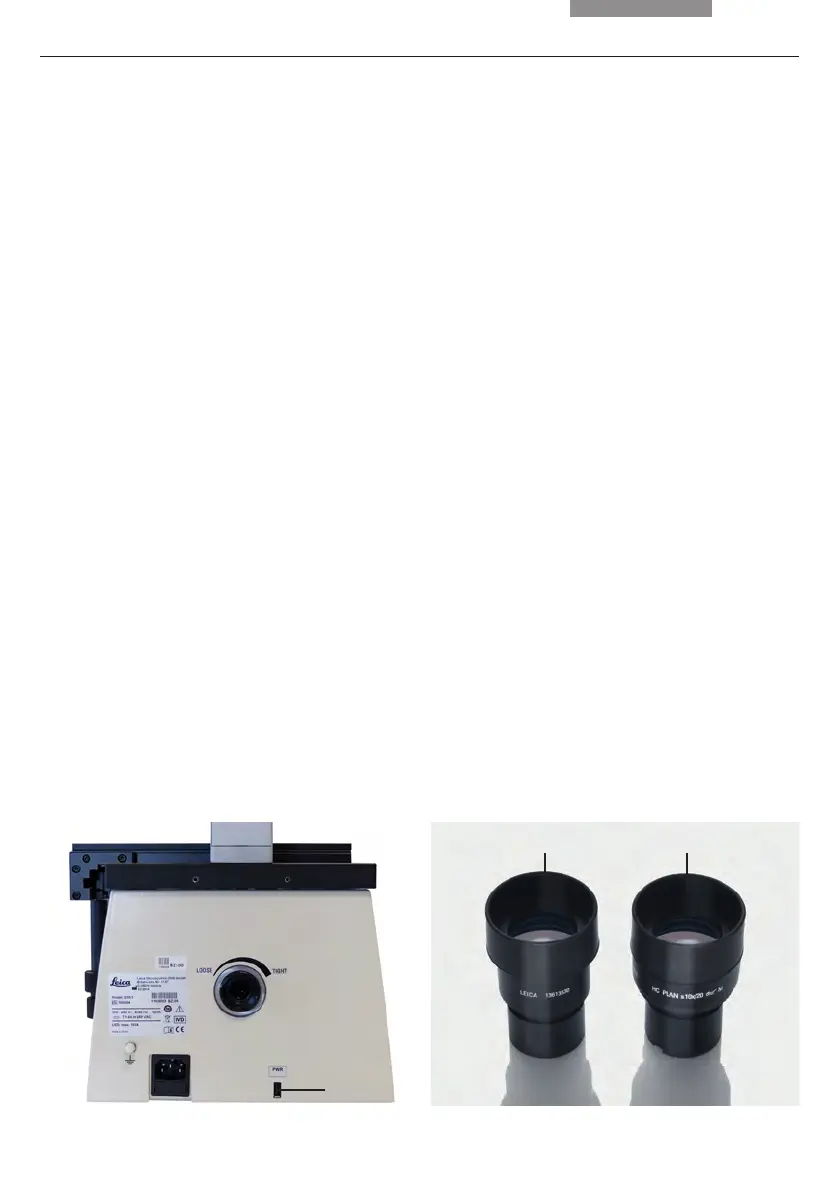

Fig. 13 Rear view of the stand
1 Power supply for camera
Fig. 14 Eyepieces
1 Eyepieces 10x Non Focusing
2 Eyepieces 10x Focusing
Positioning the graticules*
Basically, graticules can be used only with eye-
pieces with adjustable eyelens = Type M.
! Important:
Be extremely careful to maintain cleanliness.
Otherwise, dust particles and fingerprints will ap-
pear in the field of view.
HC PLAN eyepieces have a uniform graticule di-
ameter of 26 mm.
1
1 2
