Leica Envisu C Series User Manual

Hardware User Manual
Envisu C-Series SDOIS / 9054-10011 / Revision N 18

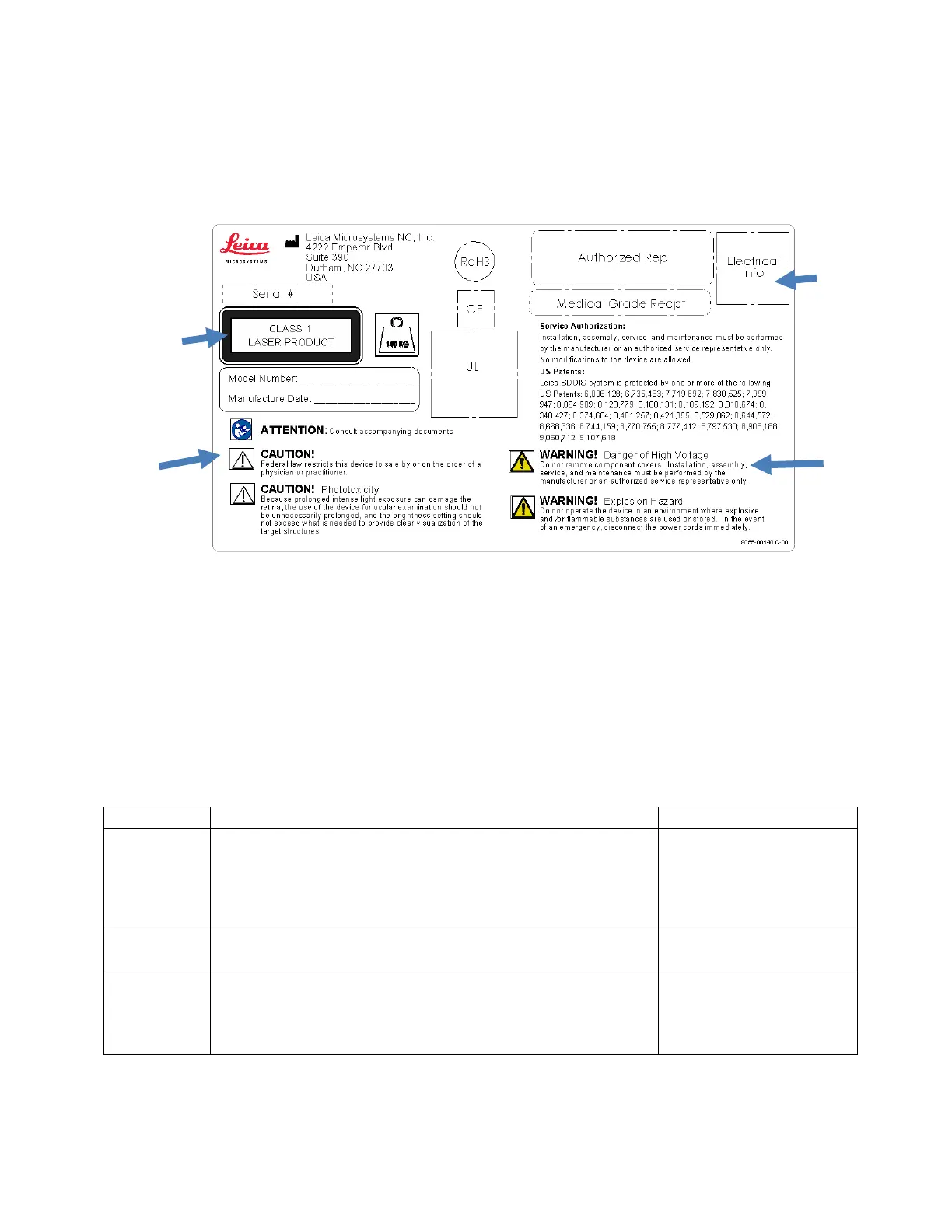

SDOIS System Rear Panel Label
Rear Panel Label
System Connections
The Leica Spectral Domain Ophthalmic Imaging System is installed on site by authorized Leica
service personnel. All electrical and optical signal connections will be secured at the time of
installation. The operator will only be required to connect the system input power cord to an
appropriate electrical outlet. No other connections are required by the operator.
Standard System Cables
The system uses the following cables for operation:
Cable
Length
Description
Mains
Power Cord
North America: Hospital grade NEMA 5-15 cord, 20’.
Europe: CEE 7/7 plug, 3.5m cord.
Australia: AS/NZS 3112:2000 plug 6.1 m cord
Japan: Hospital grade NEMA 5-15 cord, 4.6m
Permanently attached
mains input power cable
2-button
Foot pedal
7' [2.1 m]
Foot pedal USB cable to
the system
Scan head
6.5’2m
Fiber optic cable,
connection between the
scan-head module and
cart
Power Input
Requirements
Product Optical
Output
Classification
Cautions
Warnings
