Instrument Setup 4

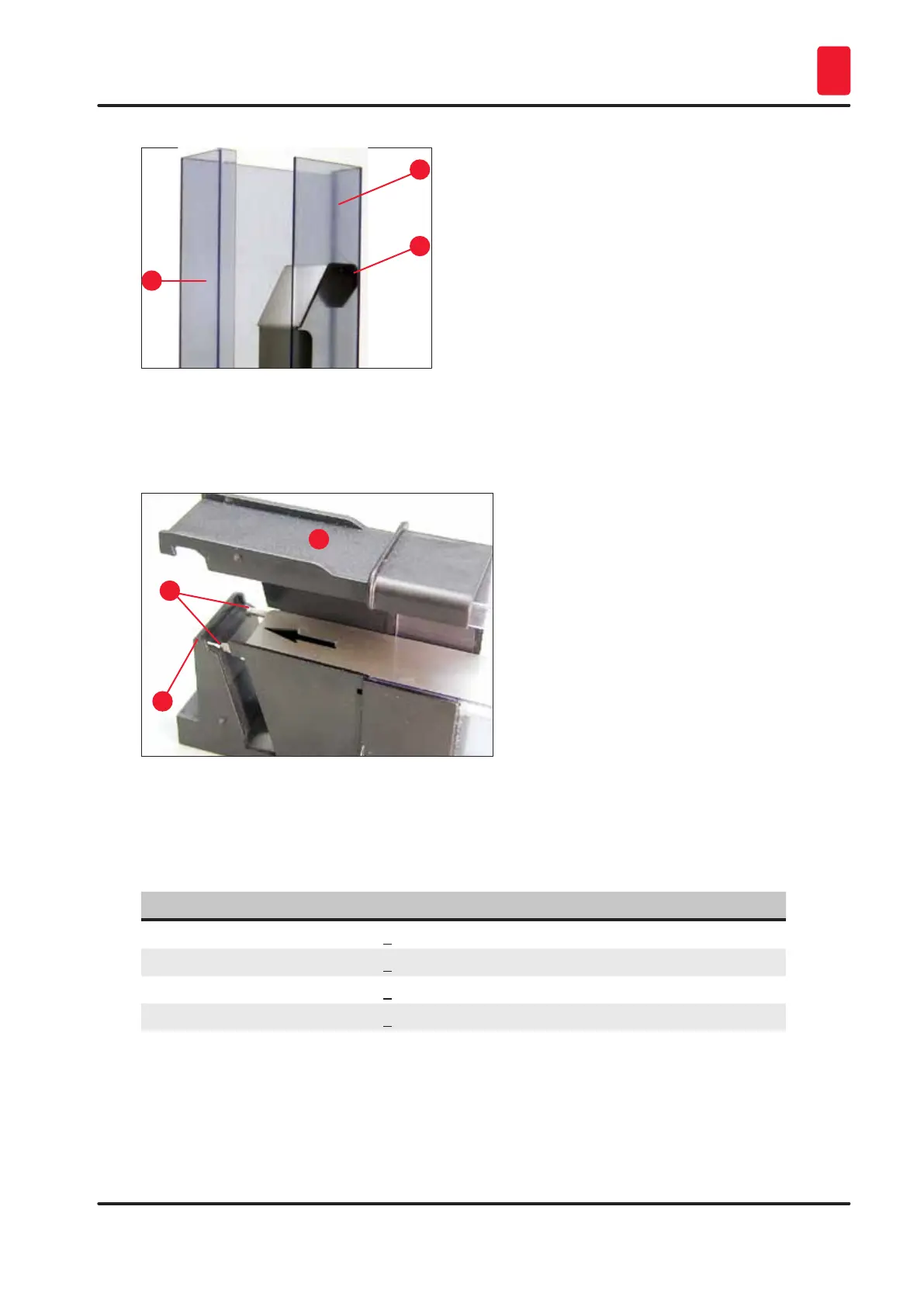

Fig. 27
1
3
2
2. Then push the metal insert downwards until the two plugs (→ "Fig. 28-1") snap into the two
grooves (→ "Fig. 28-2") in the magazine foot (→ "Fig. 28-3").
1
2
3
Fig. 28
Filling and inserting the magazines
The following table shows which cassette size should be used with which inserts.
Cassette size (length) Insert
without lid or with closed lid: > 41.3 mm Metal insert
without lid or with closed lid: < 39.3 mm Metal strip and adhesive strip at front
with open lid: < 80.0 mm Without any insert
with open lid: < 77.3 mm Adhesive strip at front
Filling the magazines
• First fill Leica IP C magazines 4 to 6 with cassettes and insert them.
• Then fill Leica IP C magazines 1 to 3 with cassettes and insert them (see 1-6 in (→ "Fig. 29-1")).
