28TPS1200+
Description of the System
1.4 Instrument Components

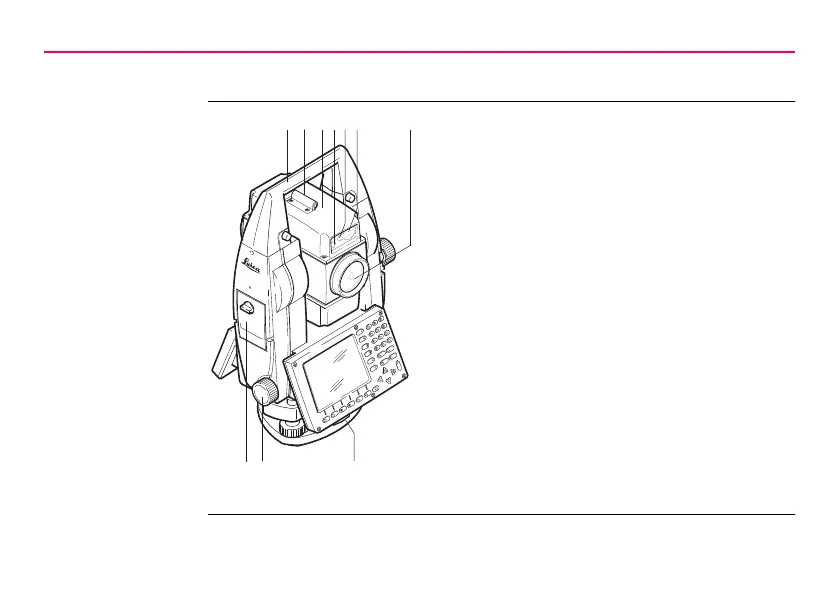

Instrument
components
part 1 of 2
a) Carry handle
b) Optical sight
c) Telescope, integrating EDM, ATR, EGL, PS
d) EGL flashing diode - yellow and red
e) PowerSearch, transmitter
f) PowerSearch, receiver
g) Coaxial optics for angle and distance meas-
urement, and exit port of visible laser beam
for distance measurements
h) CompactFlash card compartment
i) Horizontal drive
j) Tribrach securing screw
a b c d e f g
h i j
TPS12_001a
