61
BOX JOINTS
Chapter 14Super Jig-12-18-24 User Guide

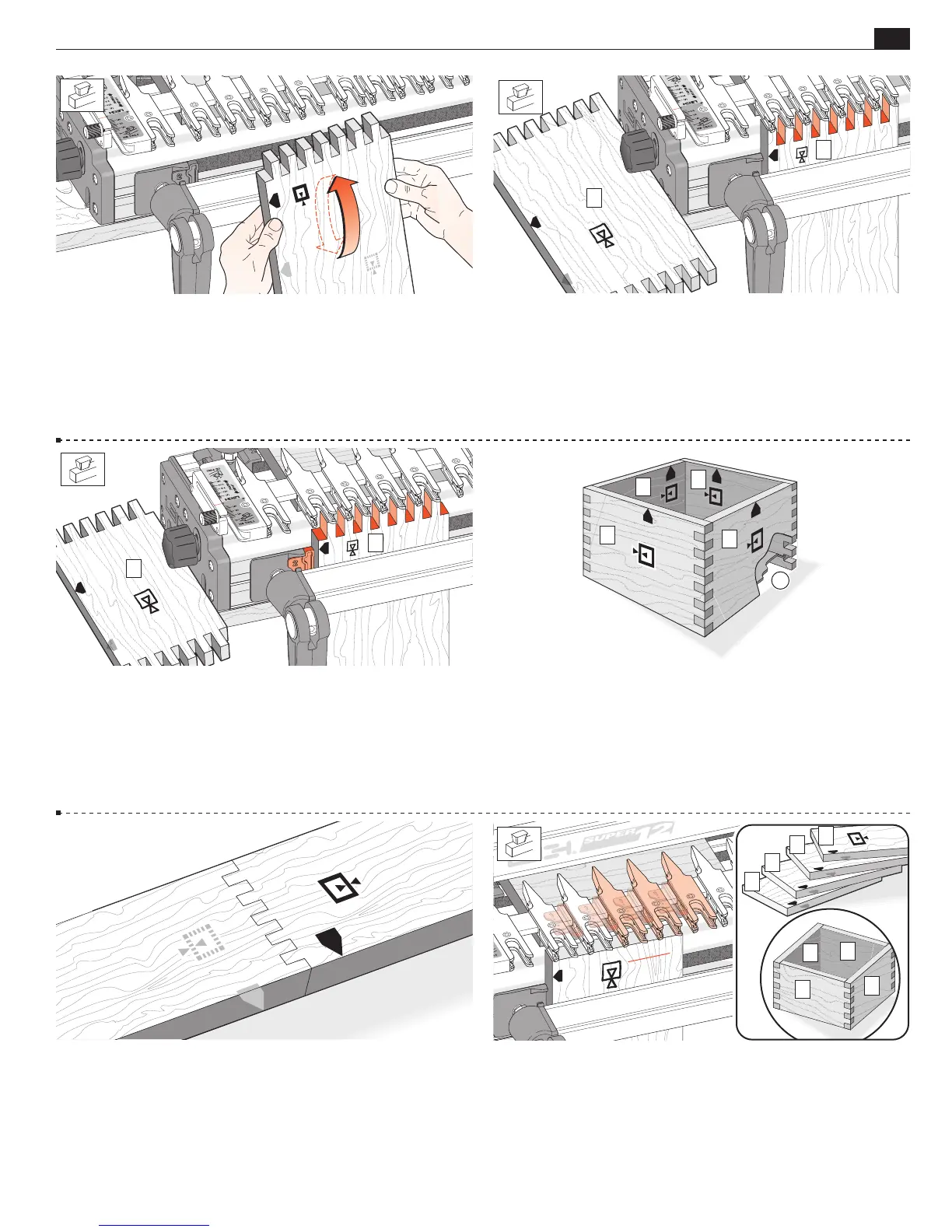

14-13 All box joint boards are clamped alternating face side in
and face side out [icon] always with the same side edge against
the side stop (or Spacer).
3
1
14-14 Rout both ends of boards 1 and 3 with their edges against
the side stop. Be sure to keep the same edge to the stop.
14-15 Rout both ends of boards 2 and 4 with their edges against
the Spacer and the Spacer in the No.2 position.
Keep the same edges to the Spacer.
4
2
14-16 Keeping the marked side stop edges of all boards toward the
top (or all to the bottom) of the box, select the preferred outside
faces before routing the grooves
➄
for the bottom.
5
1
2
3
4
14-17 The same method will produce end-on-end joints. 14-18 5⁄8"[16mm] Box Joints Set up and space the guide
fingers exactly as for
5
⁄16"[8mm] joints. Start with the same e7-Bush
setting. See 14-4 thru 14-10.
Prepare four boards using the board width chart for
5
⁄8"[16mm]
joints and number them 1 to 4 around the box
with the com-
mon edges marked.
4
4
3
3
2
2
1
1
