A. Run 24VAC control wires through cutout with grommet.
B. Run 24VAC control wires through wire tie.
C. Make 24VAC control wire connections.
D. Tighten wire tie to security 24V control wiring.
HIGH VOLTAGE FIELD WIRING
LOW VOLTAGE (24V) FIELD WIRING
CUTOUT WITH GROMMET
NOTE - For proper voltages, select thermostat wire (control wires)
gauge per table above.
WIRE RUN LENGTH AWG# INSULATION TYPE
LESS THAN 100' (30 METERS) 18 TEMPERATURE RATING
MORE THAN 100' (30 METERS) 16 35ºC MINIMUM.
24V CONTROL WIRES
TIGHTEN WIRE TIE
LOW VOLTAGE CONNECTIONS
NOTE - Do not bundle any excess 24VAC control wires inside
control box.
NOTE - Wire tie provides low voltage wire strain relief and maintains
separation of field-installed low and high voltage circuits.

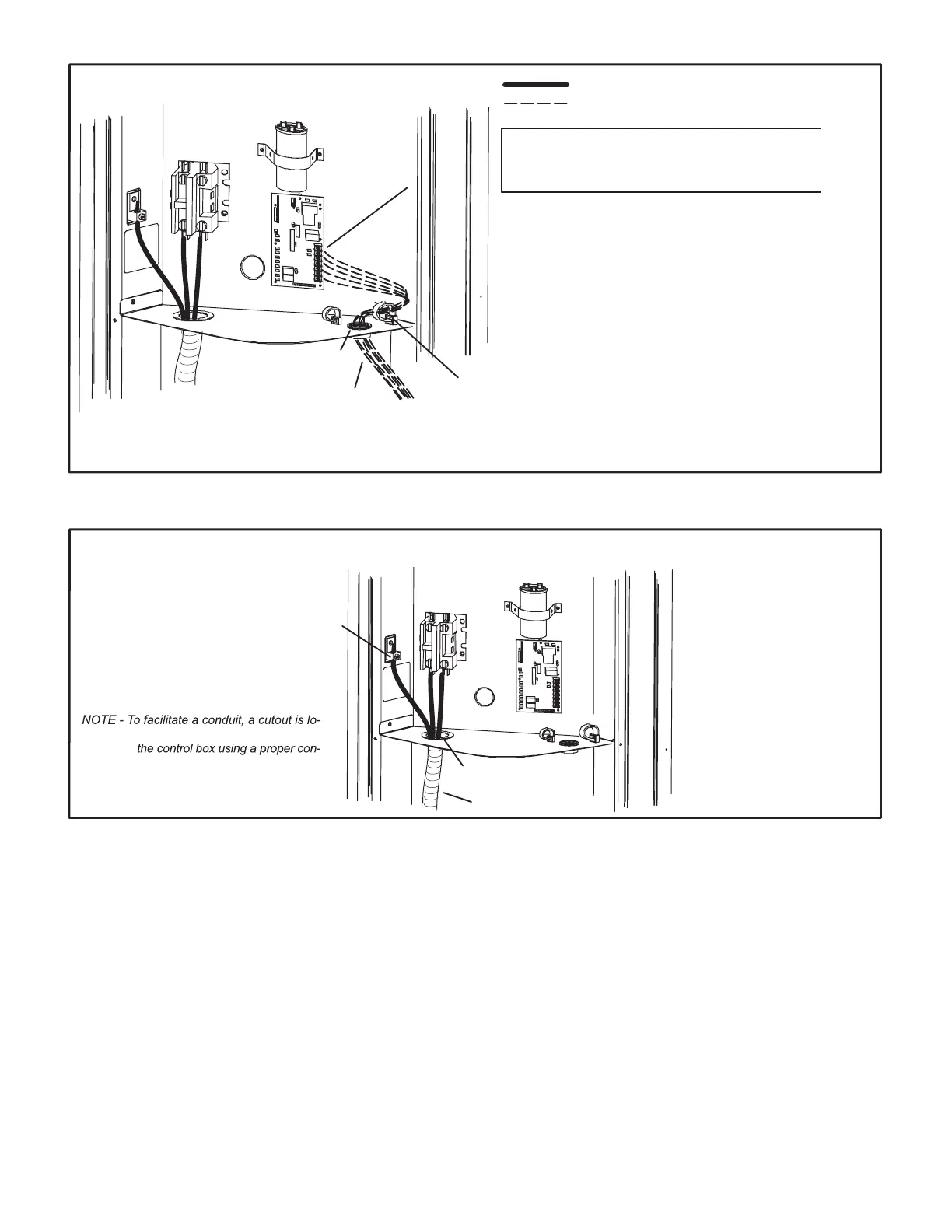

Install low voltage wiring from outdoor to indoor unit and from thermostat to indoor unit as illustrated. See figures 14 and 15 for typical field
connections when connecting unit to either a CBX32MV or CBX40UHV in non-communicating mode. For connections to other Lennox air handlers
or furnaces, see the ComfortSense® 7000 installation instruction for further wiring diagrams.
A
B
C
D
24VAC
CONNECTIONS
FIGURE 11
NOTE - Any excess high voltage field wiring
should be trimmed and secured away from
any low voltage field wiring.
GROUND
L2
cated in the bottom of the control box. Connect
conduit to
duit fitting.
CONDUIT
CONDUIT
CUTOUT
OUTDOOR UNIT
CONTROL BOX
G
L1
HIGH VOLTAGE POWER SUPPLY CONNECTIONS
FIGURE 12
