Page 69

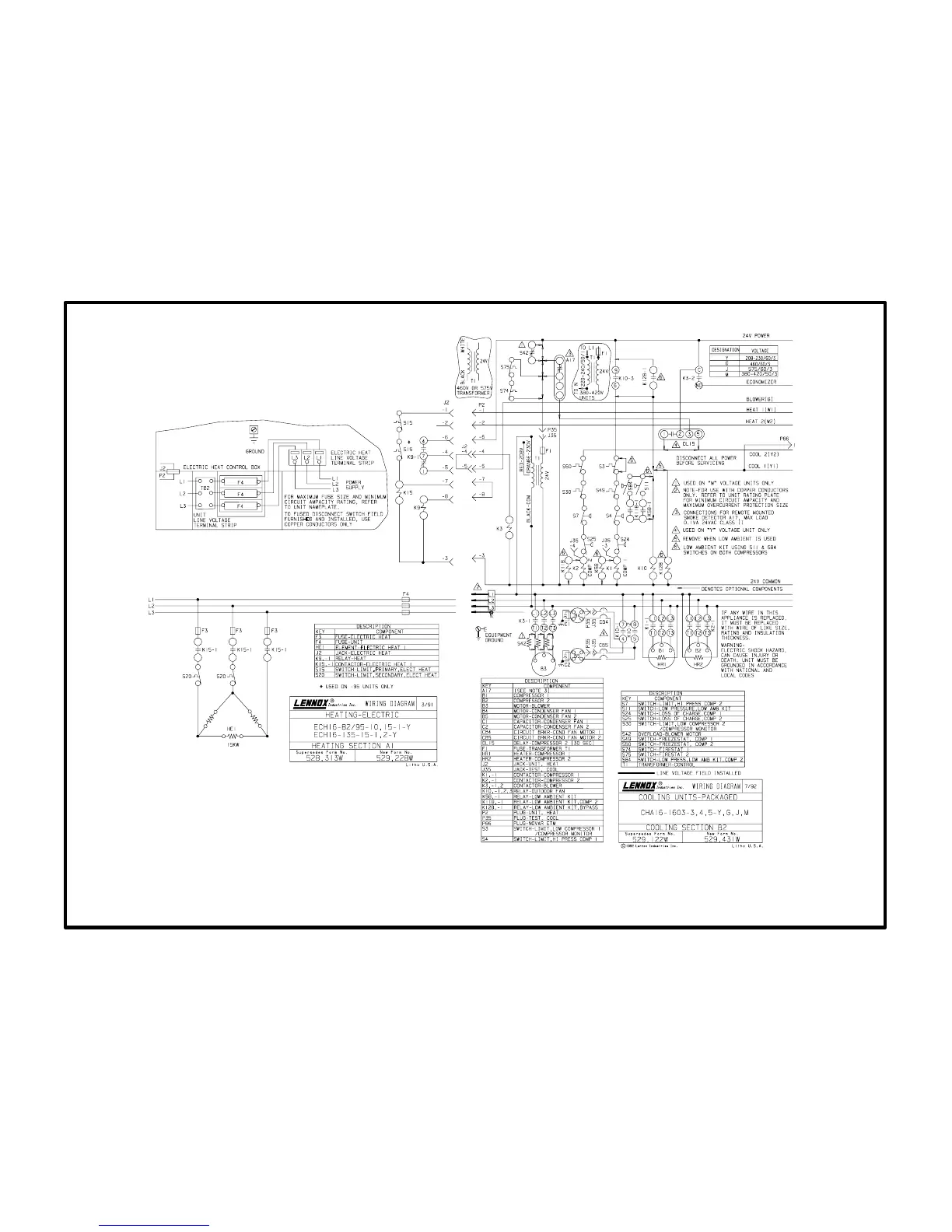

A1 diagram
with B2 diagram
ECH16-82/95/135/160 10kW & 15kW 208/230V Sequence
Operation Sequence: A1 Section and B2 Sections
(15kW 208/230V electric heat wired to CHA16-1603)
1- 1st stage heating demand closes W1. W1 passes through primary limits S15 to energize con
tactor K15 and relay K9. K151 contacts close and K91 switches.
2- When K151 closes, heating heating elements HE1 are energized. The elements are ar
ranged in a Delta" configuration for 208/230V operation.
3- When K91 switches, indoor blower contactor K3 is energized.
4- When K3 is energized, the indoor blower is powered (and optional economizer opens to mini
mum position when K32 contacts close).
5- Additional heating demand W2 is not used.
