Page 76

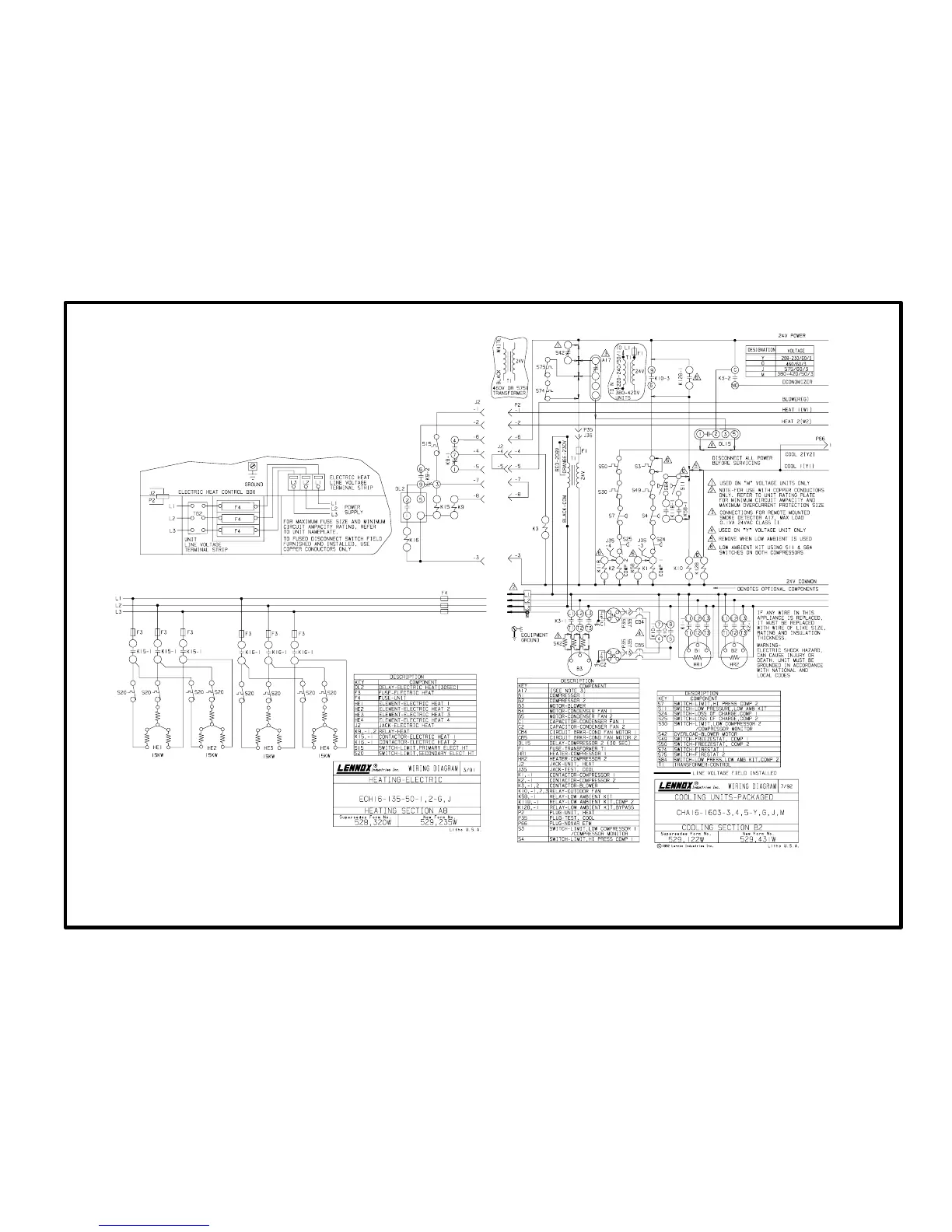

A8 diagram
with B2 diagram
ECH16-82/95/135/160 50kW 460V & 575V Operating Sequence
Operation Sequence: A8 Section and B2 Sections
(50kW 460V or 575V electric heat wired to CHA16-1603)
1- 1st stage heating demand closes W1. W1 passes through primary limits S15 to energize contac
tor K15 and relay K9. K151 contacts close and K91 and K92 both switch.
2- When K151 closes, heating elements HE1 and HE2 are both energized. The elements are ar
ranged in a Wye" configuration for 460V or 575V operation.
3- When K91 switches, indoor blower contactor K3 is energized. When K92 switches, time delay
DL2 is enabled (circuit is closed to W2).
4- When K3 is energized, the indoor blower is powered (and optional economizer opens to mini
mum position when K32 contacts close).
5- Additional heating demand W2 passes through K92 to energize time delay DL2.
6- DL2 closes after 30 seconds. Contactor K16 is energized.
7- When K161 closes, heating elements HE3 and HE4 are energized.
