Allocation of Displays to the BM50
Function
Ensure there is a good connection between the BM50 and its displays
Description

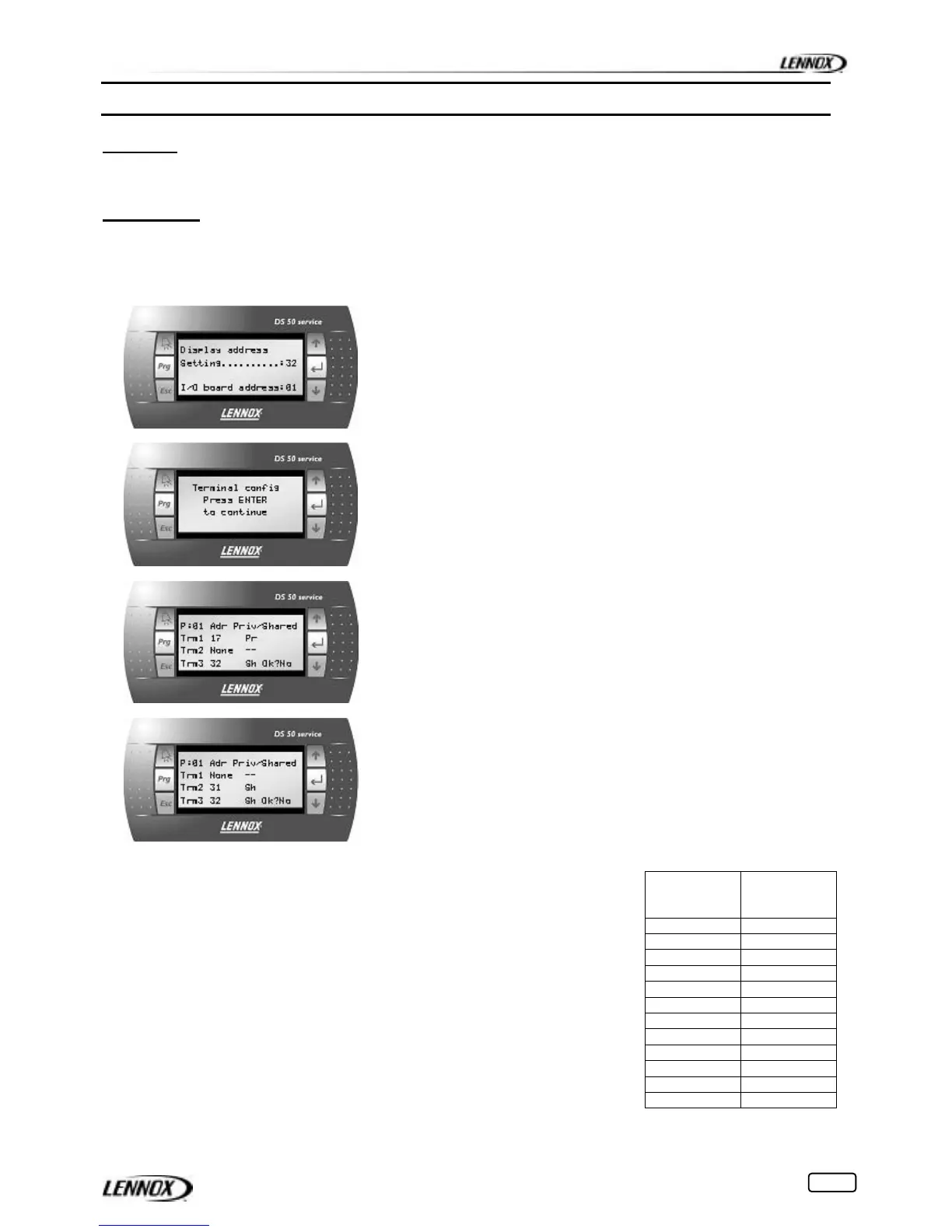

For each Climatic™50 card the following setting must be made using the DS50.
Disconnect the pLan bus at J10 and J11 and connect the DS50, directly to J10 of the BM50;
Sds.1
Sds.5
Sds.6 (for the DC50)
Sds.6 (for the DM50)
Access the configuration mode by pressing buttons
! # $ ,
for at least 5 seconds until the Sds.1 screen appears:
Press the button $ to position the cursor over the ‘Setting’ line
Press button
$ again to position the cursor over the ‘I/O board adress’
line
With button ! or # replace ‘- -‘ with the address of the BM50 connected
and confirmed with button
$
The Sds.5 screen appears.
Press button $
The Sds.6 screen appears.
The field "P:XX " shows the selected pLan address. In this example
the value "01" has been selected.
The fields in the "Adr" column represent the addresses of the terminal
displays associated with this BM50, while the "Priv/Shared" column
indicates the status of the selected terminal.
Pr: Private
Sh: Shared
Sp: Shared Printer (N/A)
Move the cursor from field to field using button
$
Select the value desired using button
! or #.
To exit the configuration procedure and save the data, select the
"OK?No", field, choose "Yes" using buttons
! or # and confirm
by pressing
$
Trm1 is reserved to allocate the DC50 to the BM50.
Its value differs depending on the pLan address of the BM50
(see table opposite)
Its status is always ‘Pr’
In the case of connection to a DM50, set the address to ‘None’
Trm2 is reserved to allocate the DM50 to the BM50.
Its value is always 31
Its status is always ‘Sh’
In the case of connection to a DC50, set the address to ‘None’
Trm3 is reserved to allocate the DS50 to the BM50.
Its value is always 32
Its status is always ‘Sh’
pLan
address of
the BM50
Trm1
DC50
1 17 pr
2 18 pr
3 19 pr
4 20 pr
5 21 pr
6 22 pr
7 23 pr
8 24 pr
9 25 pr
10 26 pr
11 27 pr
12 28 pr
If the terminal remains inactive (no button is pressed) for 30 seconds, the configuration procedure is aborted
automatically.
