CLIMATIC™50 – IOM – Rooftops/ Aircoolair CL50-ROOFTOPS-IOM-1107-E
6
J14 and J15 set between1-2 :
Connectors A, B, C and screw connector SC are in parallel. Power is supplied to all connectors.
J14 and J15 set between2-3 :
Connectors B and C are powered in parallel but connector A and screw connector SC are not.
Displays connected to these ports will not be powered.
If J14 and J15 are set in different positions the "terminal connection board" DT50 DOES NOT WORK and so the
connected displays do not operate.

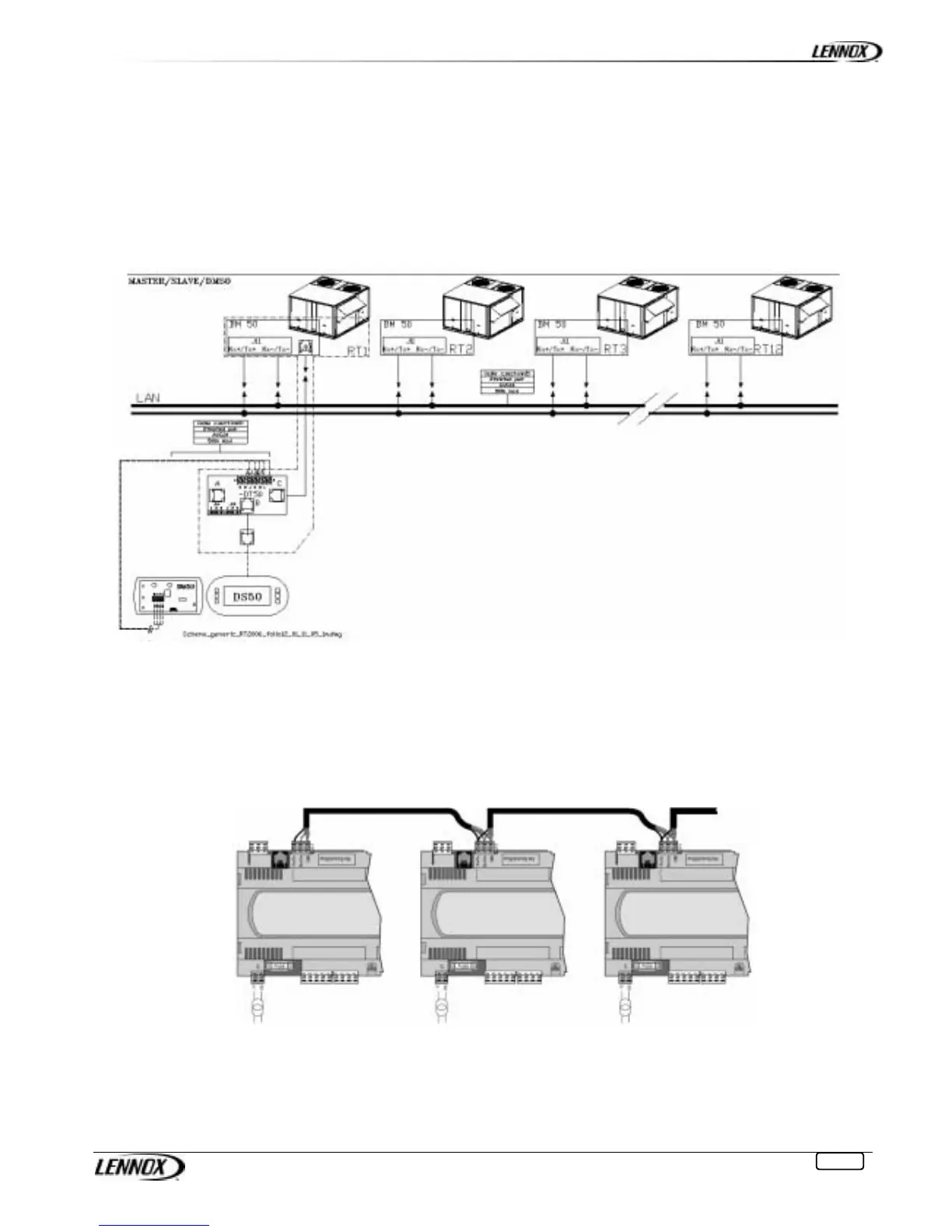

DM50 and COMMUNICATION MASTER/SLAVE
The intercard bus (pLan) is connected to Climatic™ on the J11 connector of board BM50.
A star connection is not recommended, for an optimum operation it is advised to connect a maximum of two cables per unit.
Connection must be carried out by the following cable:
- Cable length up to 300m: AWG22 (0.34 mm ²), 2 pairs crossed with screen.
- Cable length up to 500m: LiYCY-P (0.34 mm ²), 2 pairs with general shield.
The cable length should not exceed 500m.
For a better electromagnetic protection, Lennox recommends the use of LiYCY-P cable
Warning:
The power 24Vac of boards BM50 should not be connected to the earth
