Lennox Elite series User Manual

10
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.

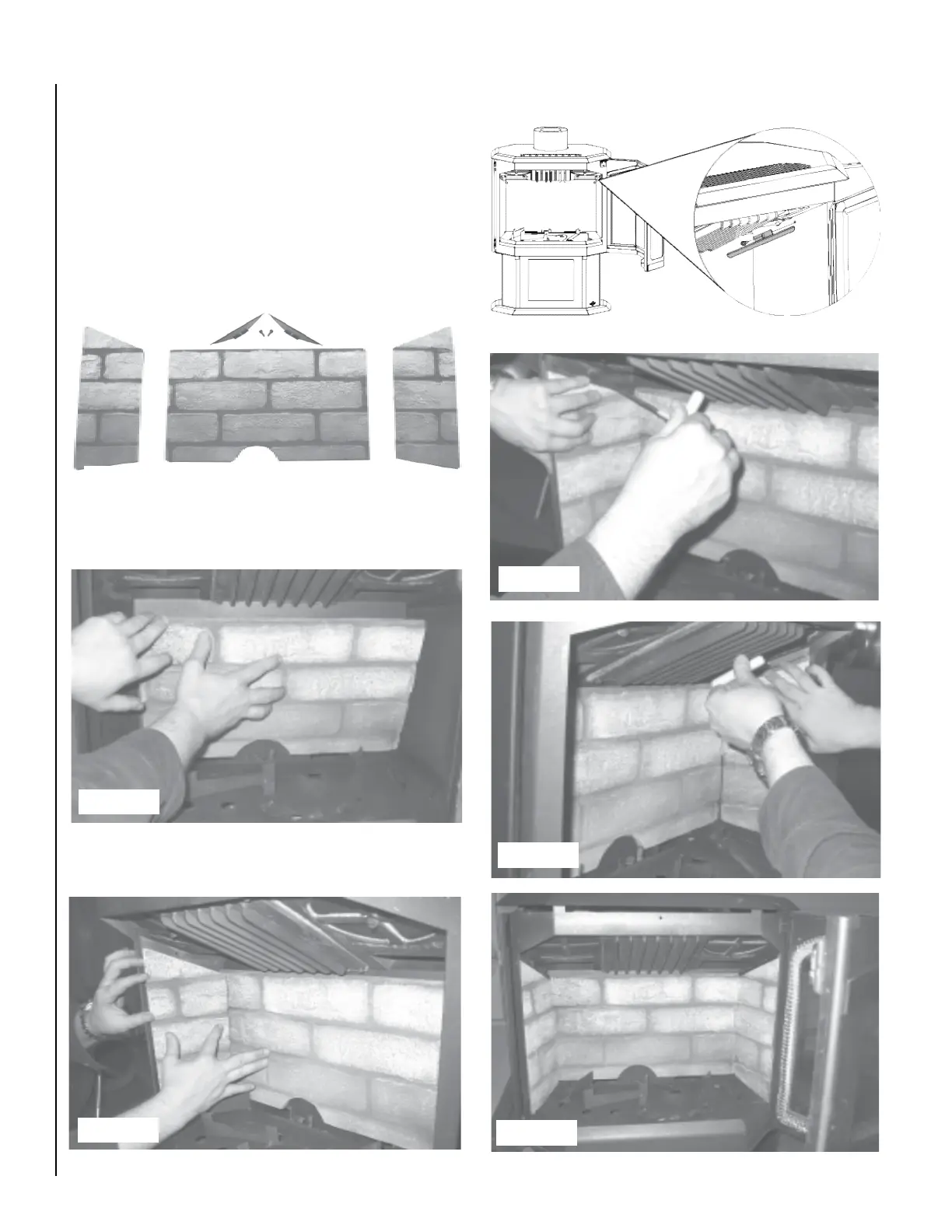

Brick Panel Installation
CAUTION: The brick panels are required for your appliance to
function correctly and safely.
Packaging List: Rear brick panel (A), left brick panel (B), right brick panel
(C), retaining brackets (D) - in flue restrictor bag
1. Remove the brick panels from the box and carefully unwrap them.
The panels are fragile, so handle them with care. Remove the bag
containing the brick retaining brackets (D) and flue restrictors from
the firebox.
4. Using the included screws, install the brick retaining brackets (D) above
the left and right brick panels (B and C).
3. Install the left panel (B) bottom first and stand flush against left wall of
firebox. Repeat for right panel (C) against the right wall of firebox.
2. Install the rear brick panel (A) bottom first and stand it flush against
the rear of the firebox ensuring the pilot cutout is at the bottom directly
above the pilot.
AB C
D
Figure 9
Figure 10
Figure 11
Figure 13
Figure 14
Figure 15
Figure 12
