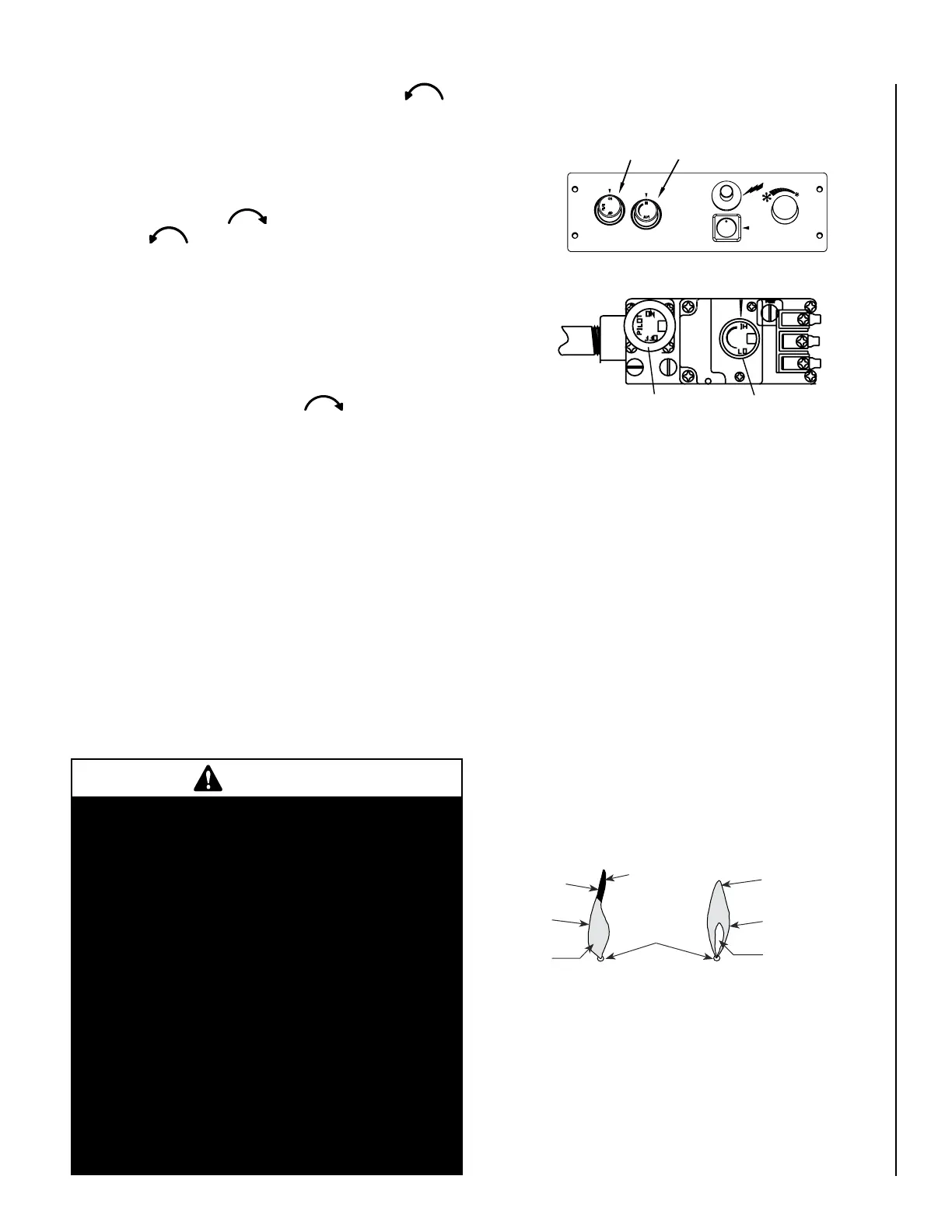

Flame Color and Behavior
Your stove is designed for maximum heating efficiency. Therefore, upon
lighting of the main burner the flames will be semitransparent or “bluish.”
After 10-20 minutes of operation, the logs will heat up and the flames will
become a yellow/orange color.
Adjusting the stove to cause the flames to turn orange sooner may result
in poor combustion, sooting and a hazardous situation. See the drawing
to the right showing proper flame appearance.
When testing for proper operation - If an optional thermostat is installed
adjust it to its highest temperature setting. Visually determine that main
burner gas is burning properly: i.e., no floating, lifting or flashback. Ad-
just the primary air shutter(s) as required. Check for proper main burner
operation at both high and low flame.
8. After pilot is lit, turn gas control counter-clockwise to
“ON.” Knob can only be turned “ON” if the knob has popped
out.
9. To turn burner on, turn “ON/OFF” rocker switch to “ON” or
set the thermostat to the desired temperature above room
temperature.
10. Adjust the flame height (and heat output) by turning the flame
height knob clockwise for reduced flame and counter-
clockwise for full flame.
11. Set the blower to the desired air flow after it turns on when the
appliance reaches operating temperature.
TO TURN OFF GAS TO APPLIANCE
1. Turn the “ON/OFF” rocker switch and/or thermostat (if installed)
to “OFF.”
2. Turn off electric power to the appliance if service is to be
performed.
3. Turn gas control knob clockwise to “OFF.” Do not
force.
This appliance needs fresh air for safe operation and must be
installed so there are provisions for adequate combustion and
ventilation air. See Installation and Operation Manual accompa-
nying appliance.
SHUTDOWN PROCEDURE
To turn off the burner, turn the rocker switch to “OFF” or adjust
the thermostat (if installed) to a setting below room temperature.
The pilot will remain lit for future burner ignition. For complete
shutdown, see “TO TURN OFF GAS TO APPLIANCE” above.
IMPORTANT NOTE: When opening the lower door while
the stove is burning, pull on the handle located on the top
side of the lower door. Be cautious not to touch any part
of the front door and firebox just above the lower door as
those areas are hot.
No Blue Flame
Center
Soot at
Flame Tip
Dark Orange
Flame
IMPROPERLY
BURNING FLAME
Soot above
Flame Tip
No Soot at
Flame Tip
PROPERLY
BURNING FLAME
Semi-Transparent
Yellow Flame
Blue Flame
Center
Ports on Pan
Burner Assembly
Burner Flame Appearance
Figure 30
SIT Millivolt Gas Valve
Gas Control Knob
(Pilot / On / Off)
Flame Height Control
Knob (HI/LO)
ON
OFF
PILOT
HI
LOW
GAS CONTROL
ON/OFF
FLAME HEIGHT
Control Panel
Figure 29
WARNINGS
•
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. For assistance or additional
information, consult a qualified installer, service
agency or your gas supplier.
•
Operation of this appliance when not connected
to a properly installed and maintained venting
system can result in carbon monoxide (CO)
poisoning and possible death.
•
Carbon monoxide poisoning – early signs of
carbon monoxide poisoning resemble the flu
with headaches, dizziness, or nausea. If you
have these signs, get fresh air at once! Have
the heater inspected by a qualified service
technician. Some people are more affected by
carbon monoxide than others. These include
pregnant women, people with heart or lung
disease or anemia, those under the influence
of alcohol and those at high altitudes.
Gas Control
Off / Pilot / On
Flame Height
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
