30
1
2
4
15
19
21
12
27
28
29
3
6
7
10
18
11
13
30
14
20
22
23
24
25
26
31
16
17
8
5
32
9
NO. DESCRIPTION
1 FRONT DOOR
2 RIGHT BURNER SUPPORT
3 LEFT BURNER SUPPORT
4 BURNER PAN / LOG SET
5 BRICK PANEL SET
6 BRICK PANEL SET
7 BRICK PANEL SET
8 BRICK PANEL BRACKET
9 NAME PLATE
10 SHEETMETAL HEATSINK
11 HEATSINK GASKET
NO. DESCRIPTION
12 SIDE DOOR
13 SIDE DOOR
14 SNAP SWITCH
15 TOP HINGE BRACKET
16 RELIEF DOOR ASSY. LARGE
17 RELIEF DOOR, LARGE
18 TOP COVER
19 6-5/8” FLUE ADAPTER
20 FLUE ADAPTER GASKET
21 REAR TOP HINGE
22 SMALL RELIEF DOOR GASKET
NO. DESCRIPTION
23 SMALL RELIEF DOOR
24 SPRING, RELIEF DOOR
25 WASHER, RELIEF DOOR
26 BOLT, RELIEF DOOR
27 DOOR LATCH KIT
28 SPACER
29 MAGNET AND BRACKET ASSY
30 CONTROL DOOR
31 CONTROL DR LATCH BRACKET
32 CONTROL DOOR LATCH

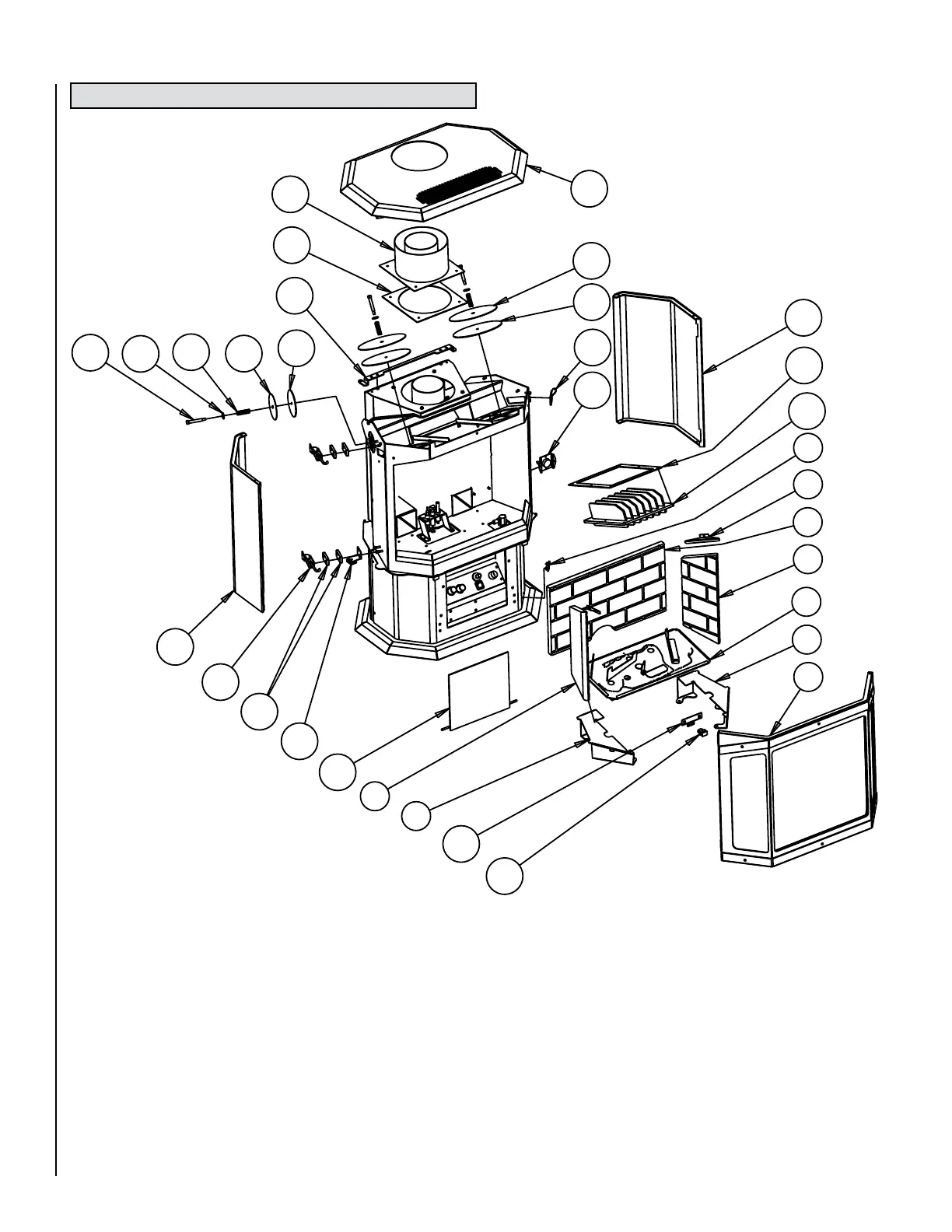

REPLACEMENT PARTS DIAGRAMS - Epic™ 33/40 (EPIC33/40)
NOTE: DIAGRAMS & ILLUSTRATIONS ARE NOT TO SCALE.
