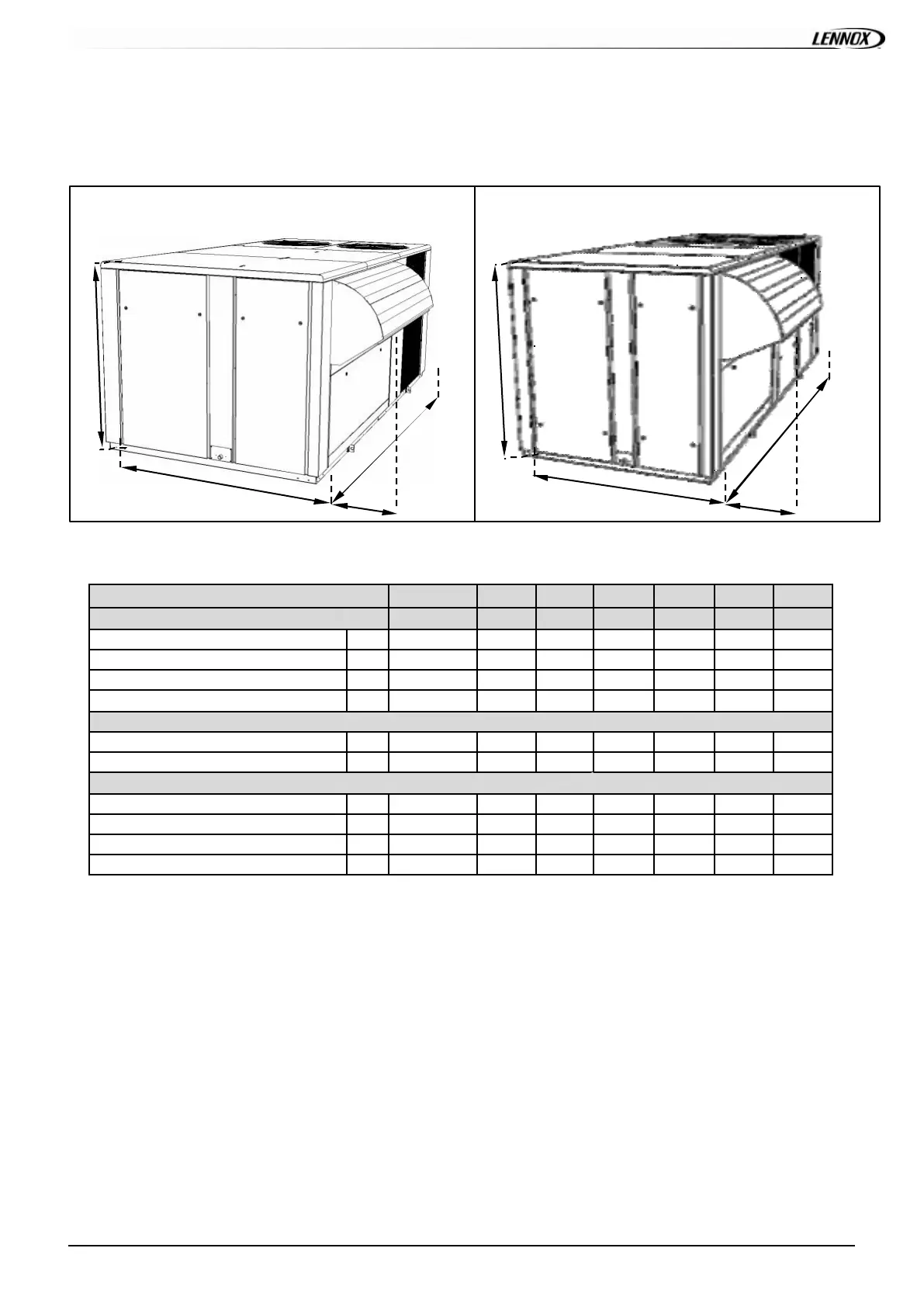

DIM ENSIO NS AND W EI GHTS
FLEXY2 FCM/FHM/FGM/FDM 85 100 120 150 170 200 230
View (F, G, H box)
F BOX F BOX F BOX G BOX G BOX H BOX H BOX
A
mm 2200 2200 2200 2200 2200 2200 2200
B
mm 3350 3350 3350 4380 4380 5533 5533
C
mm 1510 1510 1510 1834 1834 2134 2134
D
mm 360 360 360 450 450 615 615
Weight of standard units FCM
Wi thout economiser kg 933.8 1008.8 1085.0 1367.0 1430.0 1650.0 1950.0
Wi th econom i ser kg 990.3 1065.3 1141.5 1442.0 1505.0 1751.7 2051.7
Weight gas unit FGM
Standard heat Without economiser kg 1040.8 1115.8 1192.0 1608.0 1671.0 1913.9 2213.9
Standard heat With economiser kg 1097.3 1172.3 1248.5 1683.0 1746.0 2015.6 2315.6
High heat wi thout economiser kg 1110.8 1185.8 1262.0 1631.0 1694.0 1954.1 2254.1
High heat Wi th economiser kg 1167.3 1242.3 1318.5 1706.0 1769.0 2055.8 2355.8
TRANSPORT
–
HANDLING
F & G BOX H BOX
A
D
B
C
D
A
B
C
