IOM – FLEXY II – 1007 – E Page 21
This roof c urb will arriv e as a pack aged on a pallet and need t o be built toget her.
The part will be c onnec t ed by s pecial c orros ion f ree nails. It is not poss ible t o connec t wit h s t andard nail equipm ent because
there is a lot of power needed. Theref ore, you need a pneumatic or electric dev ice.

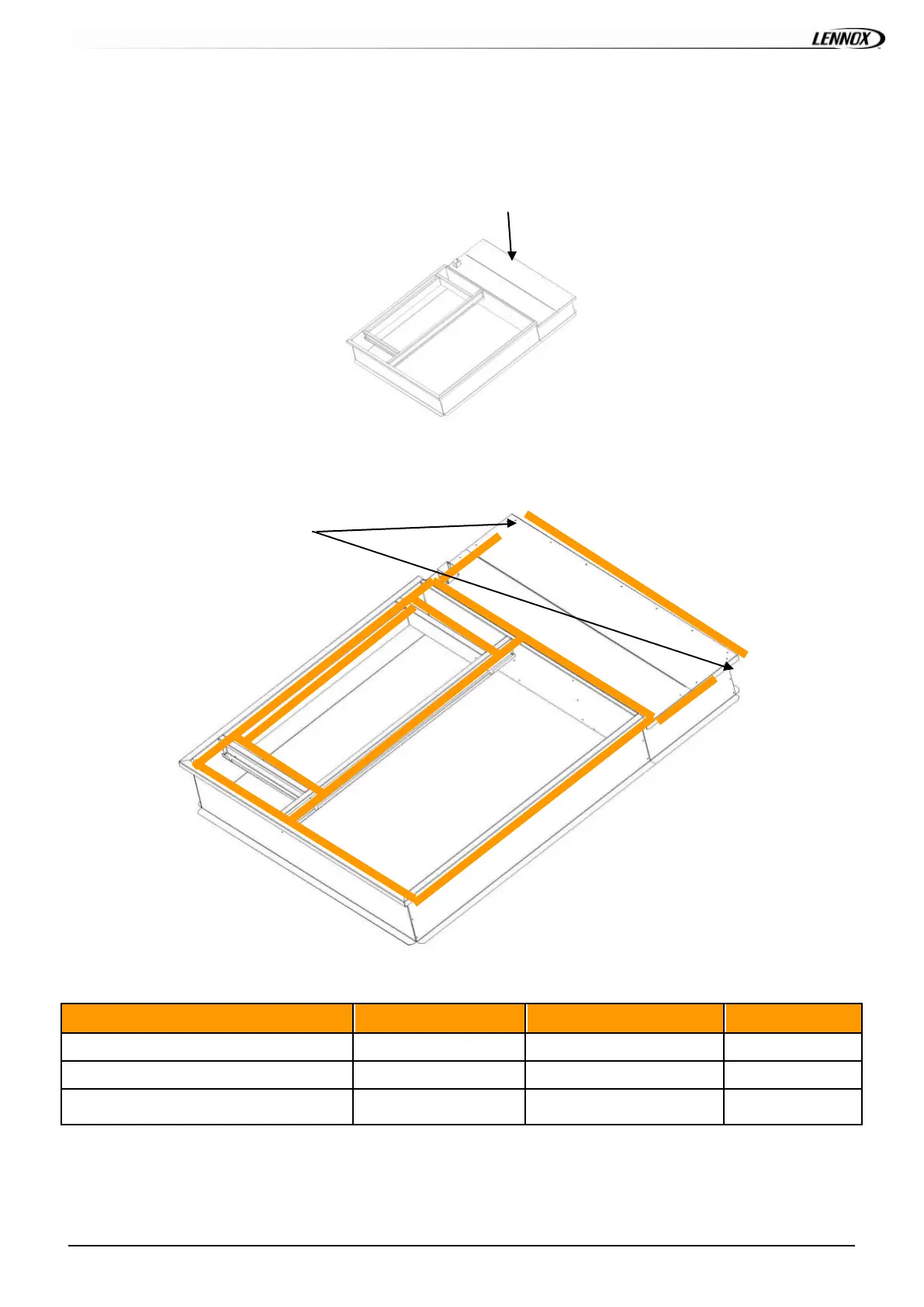

Foam Insulation Installing
Stick large foam pieces underneath the flat top
Foam Ga sket Installing
Stick gasket all around the curb flange’s top
Spare parts
Fbox Gbox Hbox
GASKET 5840071R Grey fo am M1 17 m / 0.85 m² 19 m / 0.95 m² 21 m /1.1 m²
INSULATION 5840071R 760 x 1960 - 1.39 m² 920 x 1960 - 1.79m² tbd
Rivets 5820542X 4.8 x 8 mm 100 130 160
long to enable water
drainage
Installation instructions
