MINIMUM CLEAR AN C E AR OU N D TH E UN I T

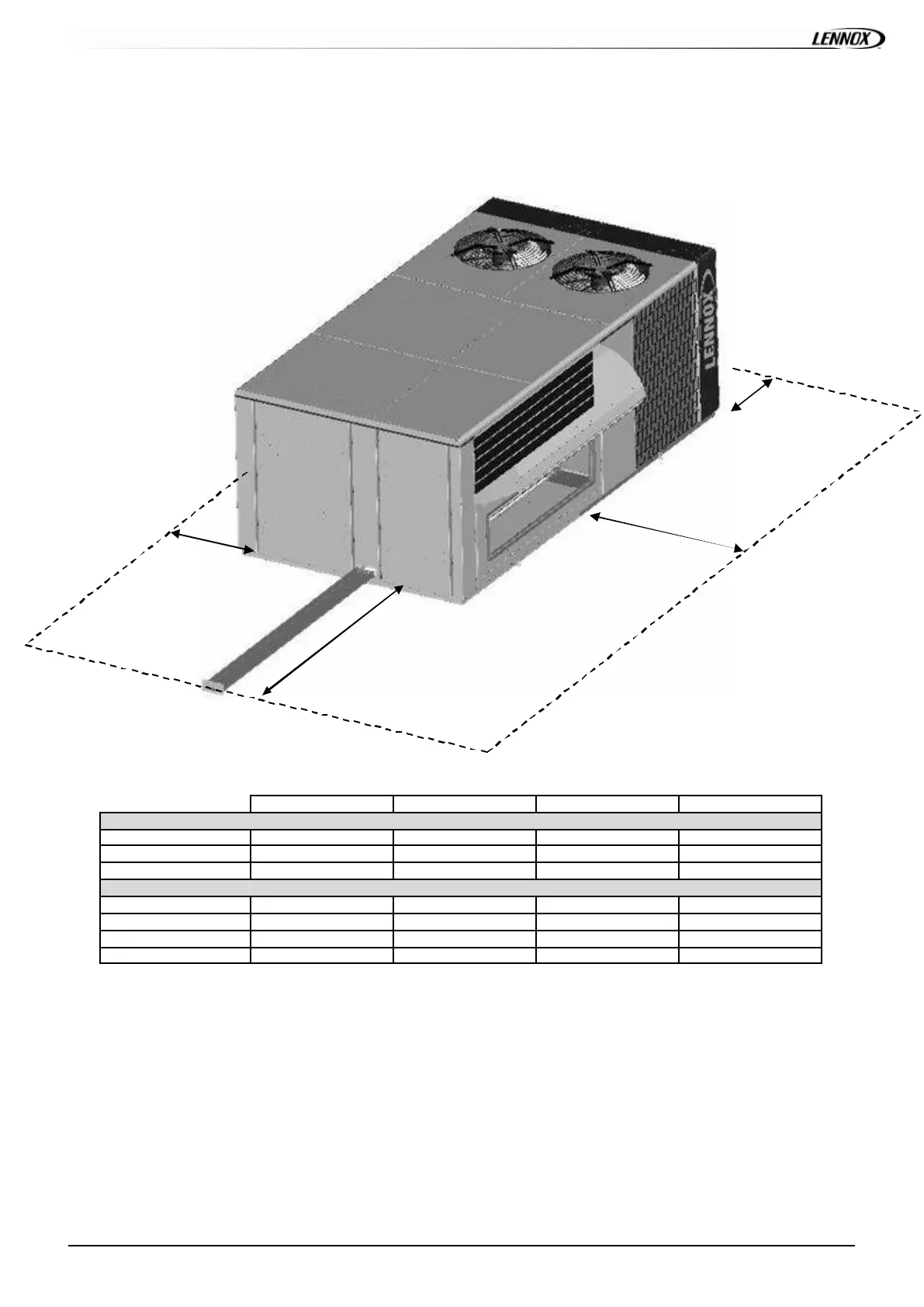

Figure 4 shows the required clearances and serv ice access around the unit.
NOTE: Ensure the fresh air inlet does not face prevailing wind direction.
A B C D
FCM/FHM/FGM/FDM
F BOX
2200
(1)
2000 2000 2000
G BOX
2700
(1)
2000 2000 2000
H BOX
2700
(1)
2000 2000 2000
FX
25 & 30
* 1100 * 1700
3555
* 1300 * 2300
70100
* 1700 * 2300
110170
* 2000 * 2300
(1) Add 1 meter if the units are equipped with gas burner
A
B
C
D
INSTALLATION
