IOM – FLEXY II – 1007 – E Page 86

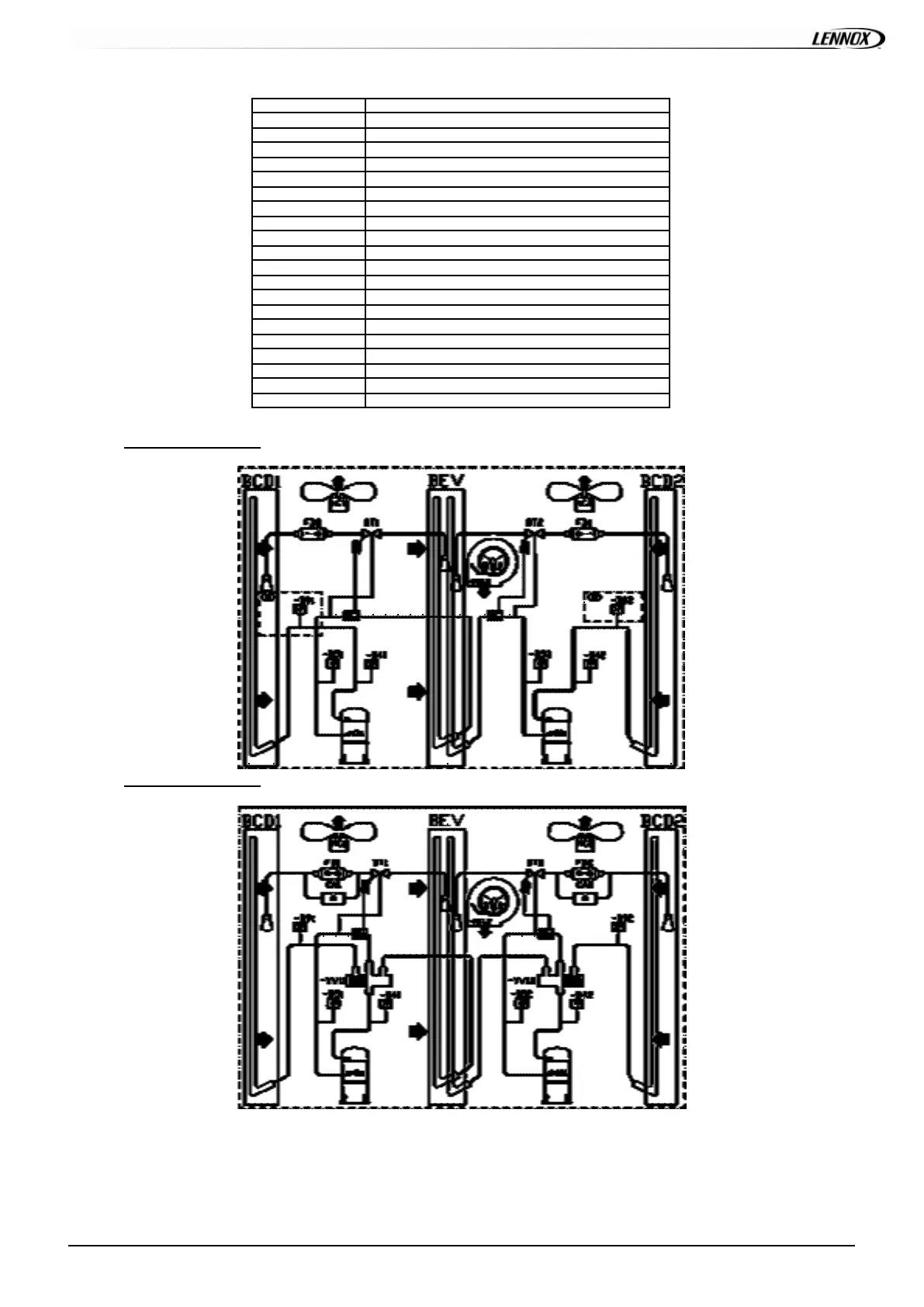

BCD1.2
CONDENSER CO I L
BEC HOT WATER COIL
BEV EVAPORATOR COIL
CA1. 2 CHECK VALVE
DT1. 2 THERMOSTATIC EXPANSION VALVE
FD1.2 FILTER DRIER
- B14 - B15 HO T WAT ER COIL ANT IF REEZE THERMO STAT
- BT12 BLOWER TEMPERATURE PROBE
- BT17 RET URN REG ULAT IO N TEMPERAT URE SENSOR
- B41 - B42 CO MPRESSO R -MG1 - MG2 HIGH PRESSURE SAFETY SWITCH
- B51 - B52 CO MPRESSO R -MG1 - MG2 LOW PRESSURE SAFETY SWITCH
- B61 - B62 CO MPRESSO R -MG1 - MG2 HIGH PRESSURE CONTROL SWITCH
- MC1 - MC2 CO NDENSER -MC 1 - MC2 FAN MOTOR
- MC3 - MC4 CO NDENSER -MC 3 - MC4 FAN MOTOR
- MG11 - MG12 CO MPRESSO R -MG1 - MG2
- MG21 - MG22 CO MPRESSO R -MG3 - MG4
- MS1 - 2 BLOWER FAN MOTOR -MS1
VAM1.2 MANUAL CHE CK VALVE
VRM MANUAL REGULATION VALVE
- YV2 HOT WAT ER 3-WAY VALVE
- YV11 - YV12 COMPRESSO R -MG1 - MG2 REVERSAL CYCLE VALVE
FCM 085 to 120
FHM 085 to 120
