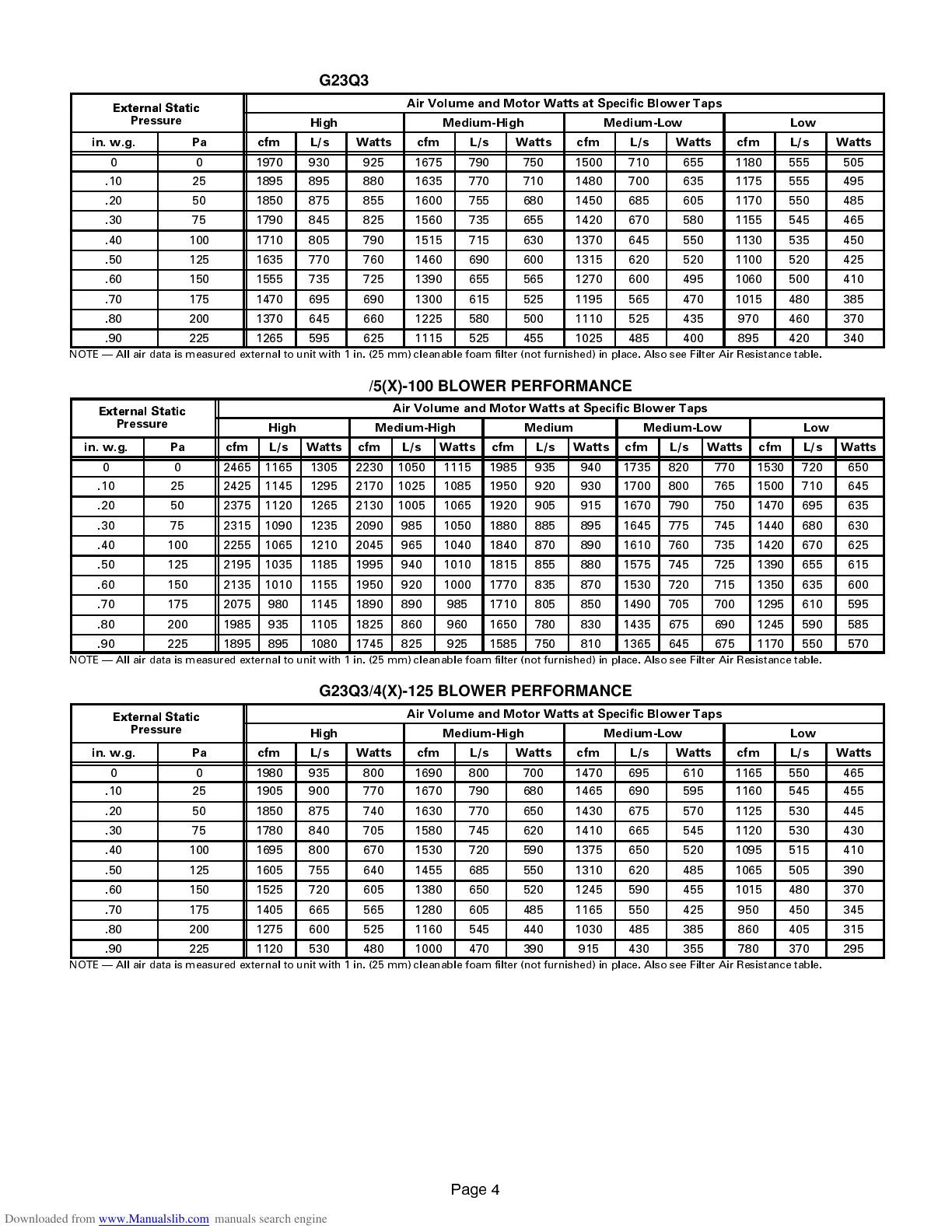

G23Q3/4(X)-100 BLOWER PERFORMANCE
Air Volume and Motor Watts at Specific Blower Taps
Pressure
High Medium-High Medium-Low Low
in. w.g. Pa cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts
0 0 1970 930 925 1675 790 750 1500 710 655 1180 555 505
.10 25 1895 895 880 1635 770 710 1480 700 635 1175 555 495
.20 50 1850 875 855 1600 755 680 1450 685 605 1170 550 485
.30 75 1790 845 825 1560 735 655 1420 670 580 1155 545 465
.40 100 1710 805 790 1515 715 630 1370 645 550 1130 535 450
.50 125 1635 770 760 1460 690 600 1315 620 520 1100 520 425
.60 150 1555 735 725 1390 655 565 1270 600 495 1060 500 410
.70 175 1470 695 690 1300 615 525 1195 565 470 1015 480 385
.80 200 1370 645 660 1225 580 500 1110 525 435 970 460 370
.90 225 1265 595 625 1115 525 455 1025 485 400 895 420 340
NOTE All air data is measured external to unit with 1 in. (25 mm) cleanable foam filter (not furnished) in place. Also see Filter Air Resistance table.
G23Q4/5(X)-100 BLOWER PERFORMANCE
External Static
Air Volume and Motor Watts at Specific Blower Taps
Pressure
High Medium-High Medium Medium-Low Low
in. w.g. Pa cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts
0 0 2465 1165 1305 2230 1050 1115 1985 935 940 1735 820 770 1530 720 650
.10 25 2425 1145 1295 2170 1025 1085 1950 920 930 1700 800 765 1500 710 645
.20 50 2375 1120 1265 2130 1005 1065 1920 905 915 1670 790 750 1470 695 635
.30 75 2315 1090 1235 2090 985 1050 1880 885 895 1645 775 745 1440 680 630
.40 100 2255 1065 1210 2045 965 1040 1840 870 890 1610 760 735 1420 670 625
.50 125 2195 1035 1185 1995 940 1010 1815 855 880 1575 745 725 1390 655 615
.60 150 2135 1010 1155 1950 920 1000 1770 835 870 1530 720 715 1350 635 600
.70 175 2075 980 1145 1890 890 985 1710 805 850 1490 705 700 1295 610 595
.80 200 1985 935 1105 1825 860 960 1650 780 830 1435 675 690 1245 590 585
.90 225 1895 895 1080 1745 825 925 1585 750 810 1365 645 675 1170 550 570
NOTE All air data is measured external to unit with 1 in. (25 mm) cleanable foam filter (not furnished) in place. Also see Filter Air Resistance table.
G23Q3/4(X)-125 BLOWER PERFORMANCE
External Static
Air Volume and Motor Watts at Specific Blower Taps
Pressure
High Medium-High Medium-Low Low
in. w.g. Pa cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts
0 0 1980 935 800 1690 800 700 1470 695 610 1165 550 465
.10 25 1905 900 770 1670 790 680 1465 690 595 1160 545 455
.20 50 1850 875 740 1630 770 650 1430 675 570 1125 530 445
.30 75 1780 840 705 1580 745 620 1410 665 545 1120 530 430
.40 100 1695 800 670 1530 720 590 1375 650 520 1095 515 410
.50 125 1605 755 640 1455 685 550 1310 620 485 1065 505 390
.60 150 1525 720 605 1380 650 520 1245 590 455 1015 480 370
.70 175 1405 665 565 1280 605 485 1165 550 425 950 450 345
.80 200 1275 600 525 1160 545 440 1030 485 385 860 405 315
.90 225 1120 530 480 1000 470 390 915 430 355 780 370 295
NOTE All air data is measured external to unit with 1 in. (25 mm) cleanable foam filter (not furnished) in place. Also see Filter Air Resistance table.
