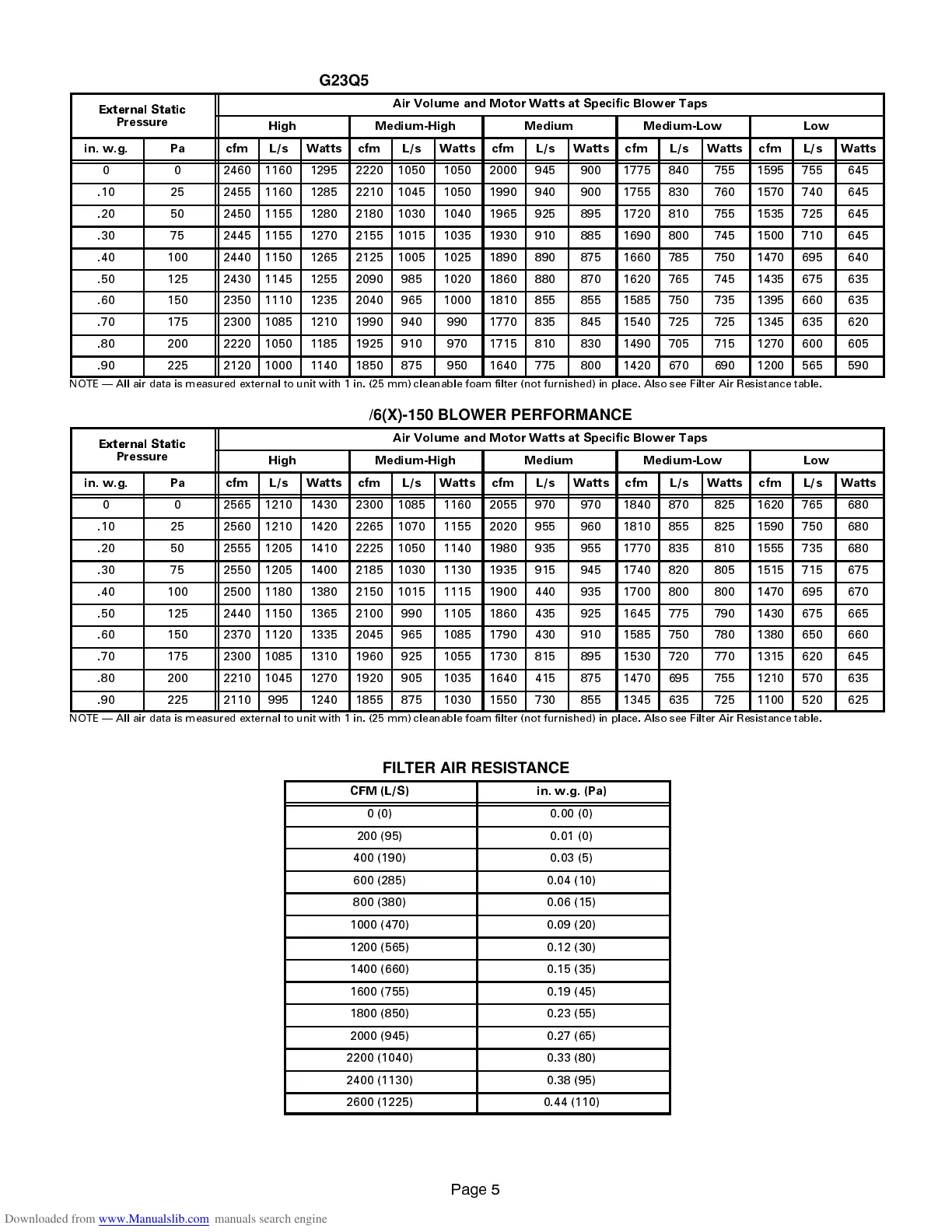

G23Q5/6(X)-125 BLOWER PERFORMANCE
External Static
Air Volume and Motor Watts at Specific Blower Taps
Pressure
High Medium-High Medium Medium-Low Low
in. w.g. Pa cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts
0 0 2460 1160 1295 2220 1050 1050 2000 945 900 1775 840 755 1595 755 645
.10 25 2455 1160 1285 2210 1045 1050 1990 940 900 1755 830 760 1570 740 645
.20 50 2450 1155 1280 2180 1030 1040 1965 925 895 1720 810 755 1535 725 645
.30 75 2445 1155 1270 2155 1015 1035 1930 910 885 1690 800 745 1500 710 645
.40 100 2440 1150 1265 2125 1005 1025 1890 890 875 1660 785 750 1470 695 640
.50 125 2430 1145 1255 2090 985 1020 1860 880 870 1620 765 745 1435 675 635
.60 150 2350 1110 1235 2040 965 1000 1810 855 855 1585 750 735 1395 660 635
.70 175 2300 1085 1210 1990 940 990 1770 835 845 1540 725 725 1345 635 620
.80 200 2220 1050 1185 1925 910 970 1715 810 830 1490 705 715 1270 600 605
.90 225 2120 1000 1140 1850 875 950 1640 775 800 1420 670 690 1200 565 590
NOTE All air data is measured external to unit with 1 in. (25 mm) cleanable foam filter (not furnished) in place. Also see Filter Air Resistance table.
G23Q5/6(X)-150 BLOWER PERFORMANCE
External Static
Air Volume and Motor Watts at Specific Blower Taps
Pressure
High Medium-High Medium Medium-Low Low
in. w.g. Pa cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts cfm L/s Watts
0 0 2565 1210 1430 2300 1085 1160 2055 970 970 1840 870 825 1620 765 680
.10 25 2560 1210 1420 2265 1070 1155 2020 955 960 1810 855 825 1590 750 680
.20 50 2555 1205 1410 2225 1050 1140 1980 935 955 1770 835 810 1555 735 680
.30 75 2550 1205 1400 2185 1030 1130 1935 915 945 1740 820 805 1515 715 675
.40 100 2500 1180 1380 2150 1015 1115 1900 440 935 1700 800 800 1470 695 670
.50 125 2440 1150 1365 2100 990 1105 1860 435 925 1645 775 790 1430 675 665
.60 150 2370 1120 1335 2045 965 1085 1790 430 910 1585 750 780 1380 650 660
.70 175 2300 1085 1310 1960 925 1055 1730 815 895 1530 720 770 1315 620 645
.80 200 2210 1045 1270 1920 905 1035 1640 415 875 1470 695 755 1210 570 635
.90 225 2110 995 1240 1855 875 1030 1550 730 855 1345 635 725 1100 520 625
NOTE All air data is measured external to unit with 1 in. (25 mm) cleanable foam filter (not furnished) in place. Also see Filter Air Resistance table.
FILTER AIR RESISTANCE
CFM (L/S) in. w.g. (Pa)
0 (0) 0.00 (0)
200 (95) 0.01 (0)
400 (190) 0.03 (5)
600 (285) 0.04 (10)
800 (380) 0.06 (15)
1000 (470) 0.09 (20)
1200 (565) 0.12 (30)
1400 (660) 0.15 (35)
1600 (755) 0.19 (45)
1800 (850) 0.23 (55)
2000 (945) 0.27 (65)
2200 (1040) 0.33 (80)
2400 (1130) 0.38 (95)
2600 (1225) 0.44 (110)
