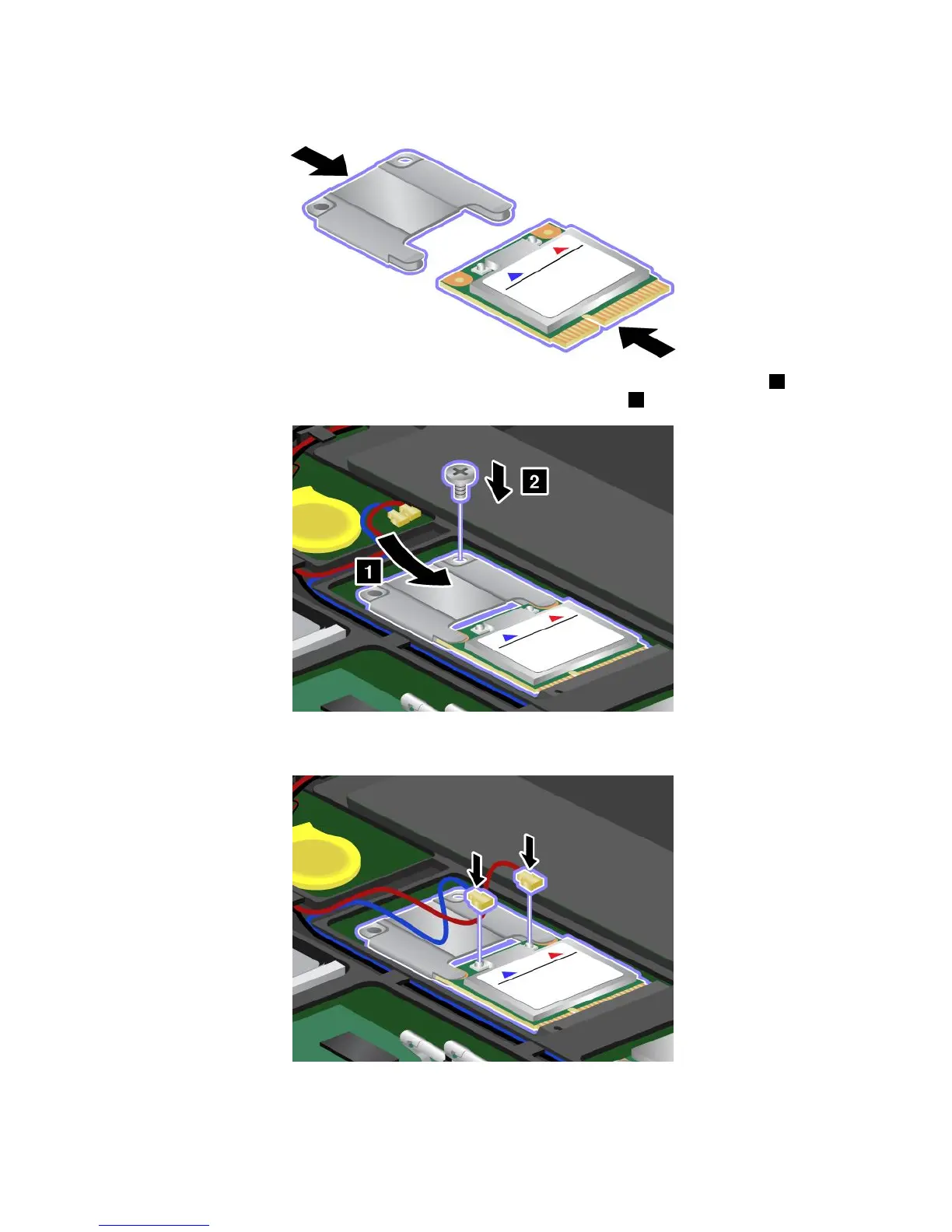

8.AttachthemetalhousingtothenewPCIExpressHalfMiniCard.
9.AlignthecontactedgeofthenewPCIExpressHalfMiniCardwiththecorrespondingsocket1.Pivot
thecarduntilyoucansnapitintoplace.Securethecardwiththescrew
2.
10.ConnecttheantennacablestothenewPCIExpressHalfMiniCard.Besuretoattachtheredcabletothe
connectormarked“MAIN”or“M”onthecard,andthebluecabletotheconnectormarked“AUX”or“A.”
