2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removetheservercover.See“Removingtheservercover”onpage83.
4.Locatetherisercardassembly2.See“Servercomponents”onpage31.
5.Grasptherisercardassembly2byitsedgesandcarefullyliftitstraightupandoffthechassis.
Note:IfthereisanycableconnectedtoanyPCIExpresscardontherisercardassembly2,youmight
needtoremovethecoolingshroudrst.See“Removingandreinstallingthecoolingshroud”onpage91
.

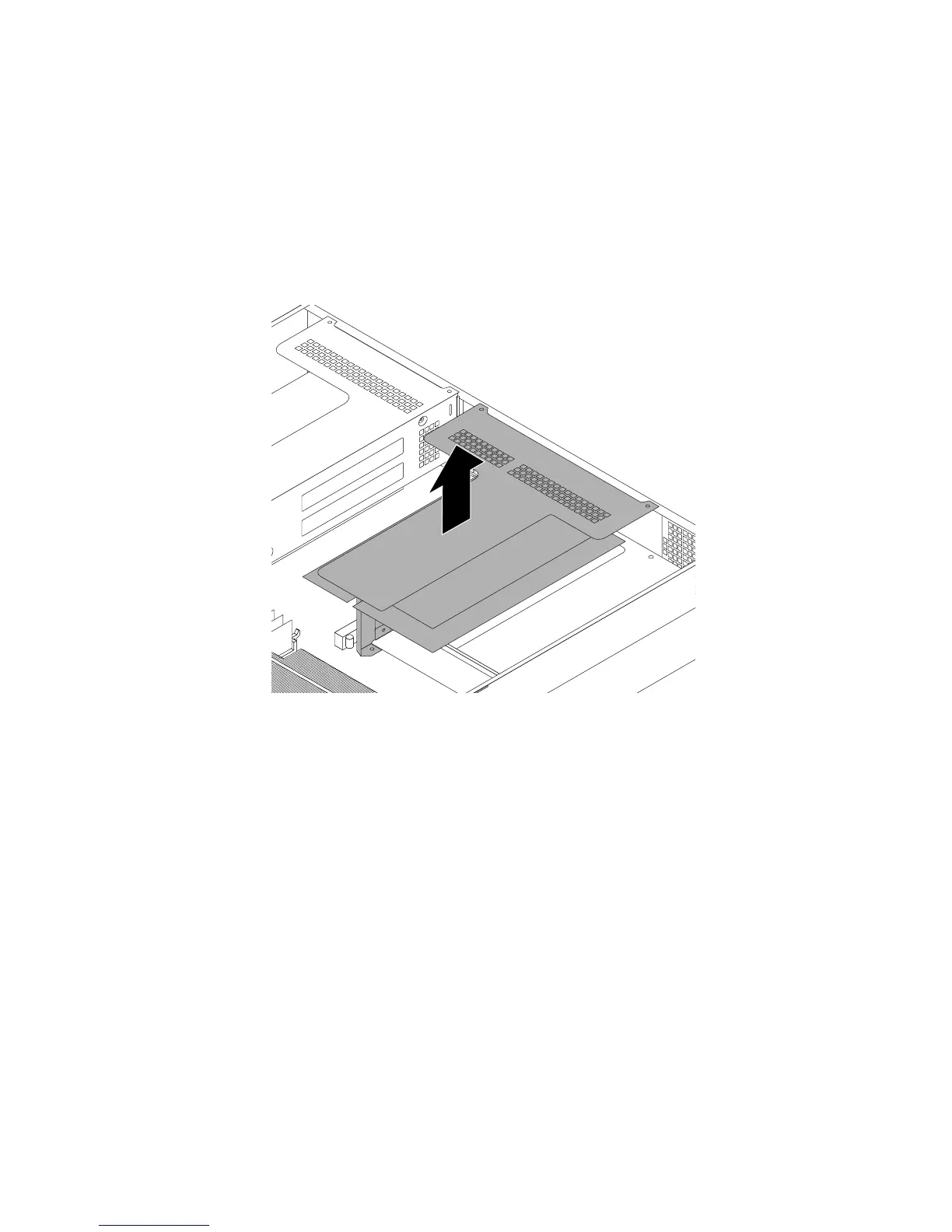

Figure121.Liftingtherisercardassembly2offthechassis
6.Ifnecessary,disconnectanycablesfromthePCIExpresscardsinstalledontherisercardassembly2
andthencompletelyremovetherisercardassembly2outofthechassis.
7.Touchthestatic-protectivepackagethatcontainsthenewrisercardassembly2toanyunpainted
surfaceontheoutsideoftheserver.Then,removethenewrisercardassembly2fromthepackage.
8.RemovethePCIExpresscards(ifany)fromtheoldrisercardassembly2andinstallthemonthenew
one.See“InstallingorremovinganEthernetcard”onpage114
.
9.Ifnecessary,reconnectanycablestothePCIExpresscardsonthenewrisercardassembly2.
