Lenovo ThinkServer RD430 - Replacing the Riser Card Assembly 2

11.Positionthenewrisercardassembly1onthechassisandalignitwiththerisercardassembly1sloton
thesystemboardandaligntherearofitwiththecorrespondingrailguidesintherearofthechassis.
Then,carefullypressthenewrisercardassembly1straightdownintothechassisuntilitisfullyseated.
Note:IfthereisanyPCIExpresscardinstalledontherisercardassembly1,carefullytthePCIExpress
cardintothechassisandproperlyrouteanycablesfromthecard.

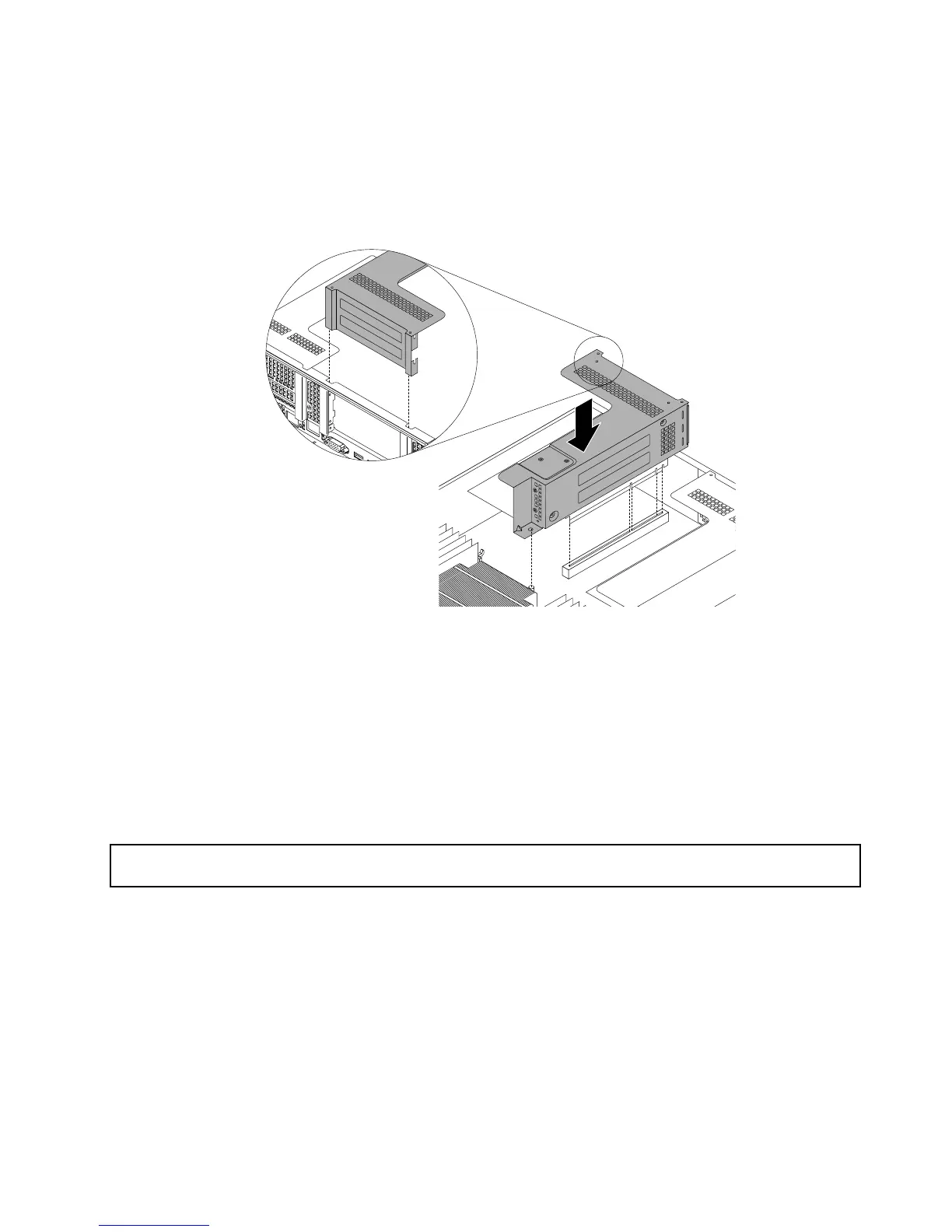

Figure120.Installingtherisercardassembly1
12.Ifyouareinstructedtoreturntheoldrisercardassembly1,followallpackaginginstructionsanduse
anypackagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacement,goto“Completingthepartsreplacement”onpage182
.
Replacingtherisercardassembly2
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiii
and“Guidelines”onpage81.
Thistopicprovidesinstructionsonhowtoreplacetherisercardassembly2.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Note:Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
Toreplacetherisercardassembly2,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
Chapter6.Installing,removing,orreplacinghardware161
