1.Touchthestatic-protectivepackagethatcontainsthenewhot-swapredundantpowersupplytoany
unpaintedsurfaceontheoutsideoftheserver.Then,takethenewhot-swapredundantpowersupply
outofthepackage.
2.Ifyouareinstallingapowersupply,locatethebayforthepowersupplyintherearofyourserver.
Insertyourindexfingerandthumbintotheholesinthemetalshieldthatprotectsthebayandpullthe
shieldoutofthechassis.Storetheshieldincasethatyoulaterremovethepowersupplyandneed
theshieldtocoverthebay.

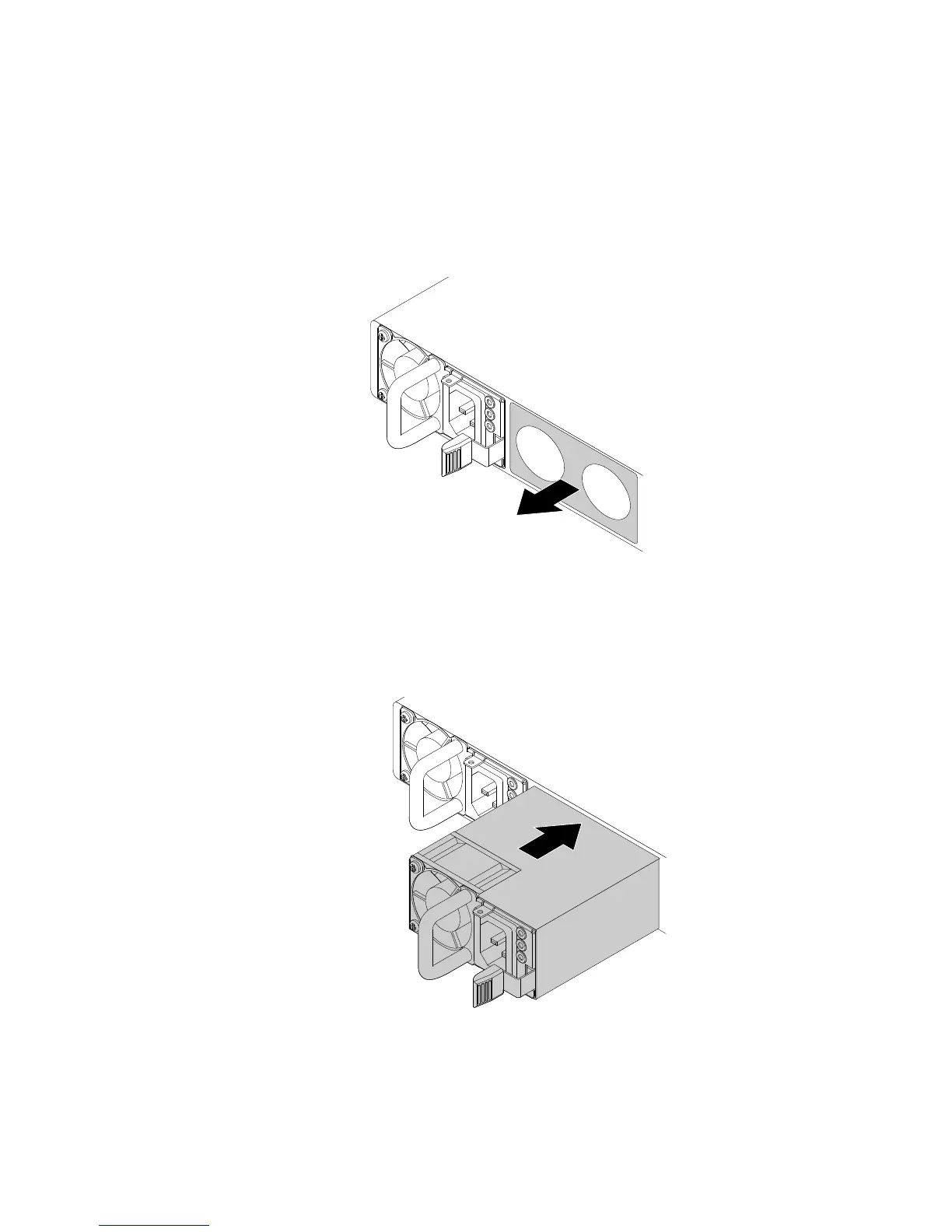

Figure92.Removingtheprotectiveshieldforthepowersupplybay
3.Notetheorientationofthenewhot-swapredundantpowersupplyandthenslidethenewhot-swap
redundantpowersupplyintothechassisuntilitsnapsintoposition.
Figure93.Installingahot-swapredundantpowersupply
Chapter6.Replacinghardware121
