3.RemovethefibercablefromthePCIecard.

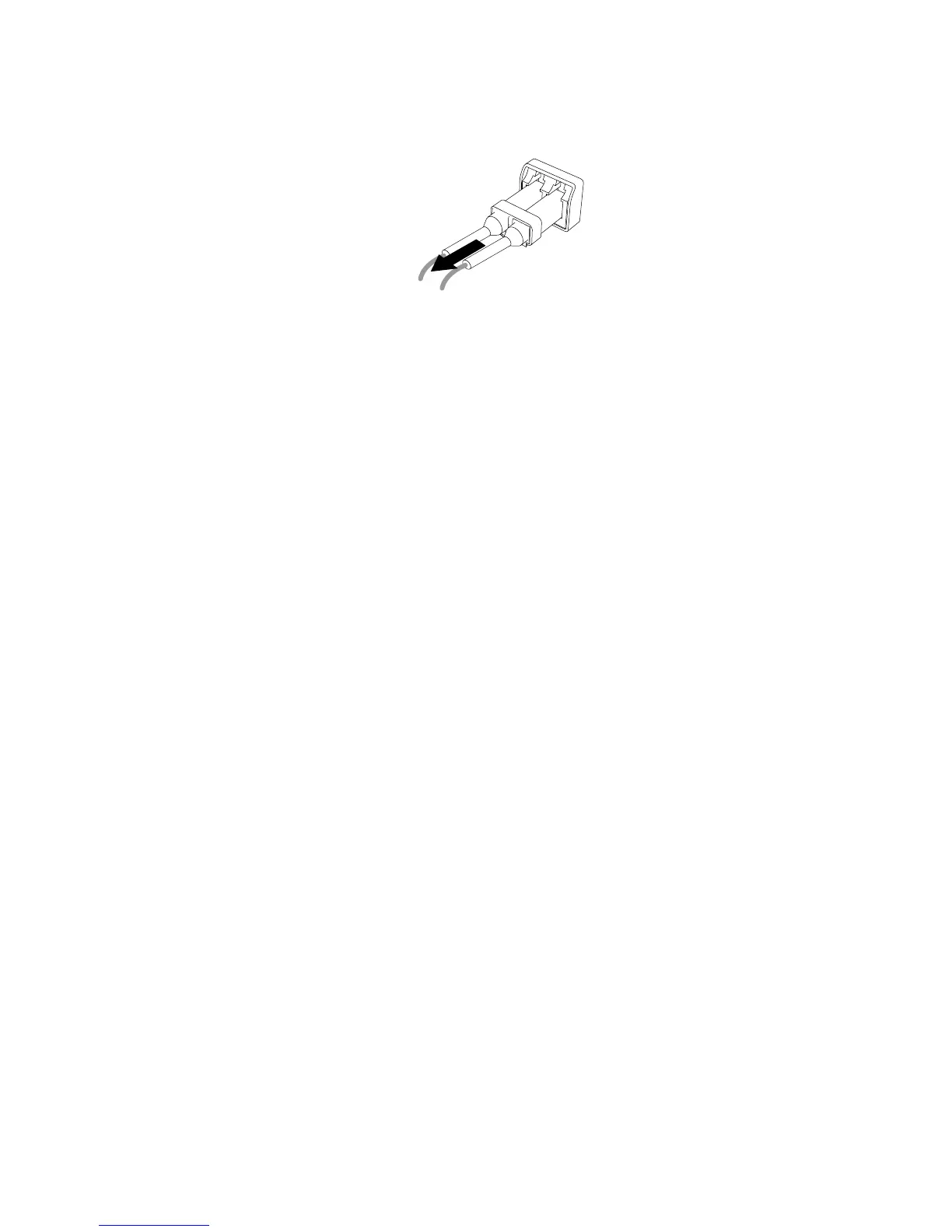

Figure11.Removingthefibercable
4.Reinstallthefibercablereleasetooltotherearoftheserverforfutureuse.
Servercomponents
Thistopicprovidesinformationtohelpyoulocatethecomponentsofyourserver.Formoreinformation
aboutmajorcomponents,seetherelatedtopicsin“Locations”onpage16
.
Toremovetheservercoverandthecoolingshroudandgainaccesstotheinsideoftheserver,see
“Removingtheservercover”onpage61and“Removingandreinstallingthecoolingshroud”onpage64.
Thechassisconfigurationvariesbymodel.Thefollowingillustrationsshowthetwochassisconfigurations
basedonthesupporteddrives.
•Servermodelswith3.5-inchdrives
•Servermodelswith2.5-inchdrives
Note:Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
Chapter3.Productoverview25
