5.Disconnectthefront-panel-boardcablesfromthesystemboard.See“Systemboardcomponents”
onpage36
.
6.Removethetwoscrewsthatsecurethefrontpanelboardandthencarefullyremovethefrontpanel
boardfromthechassis.

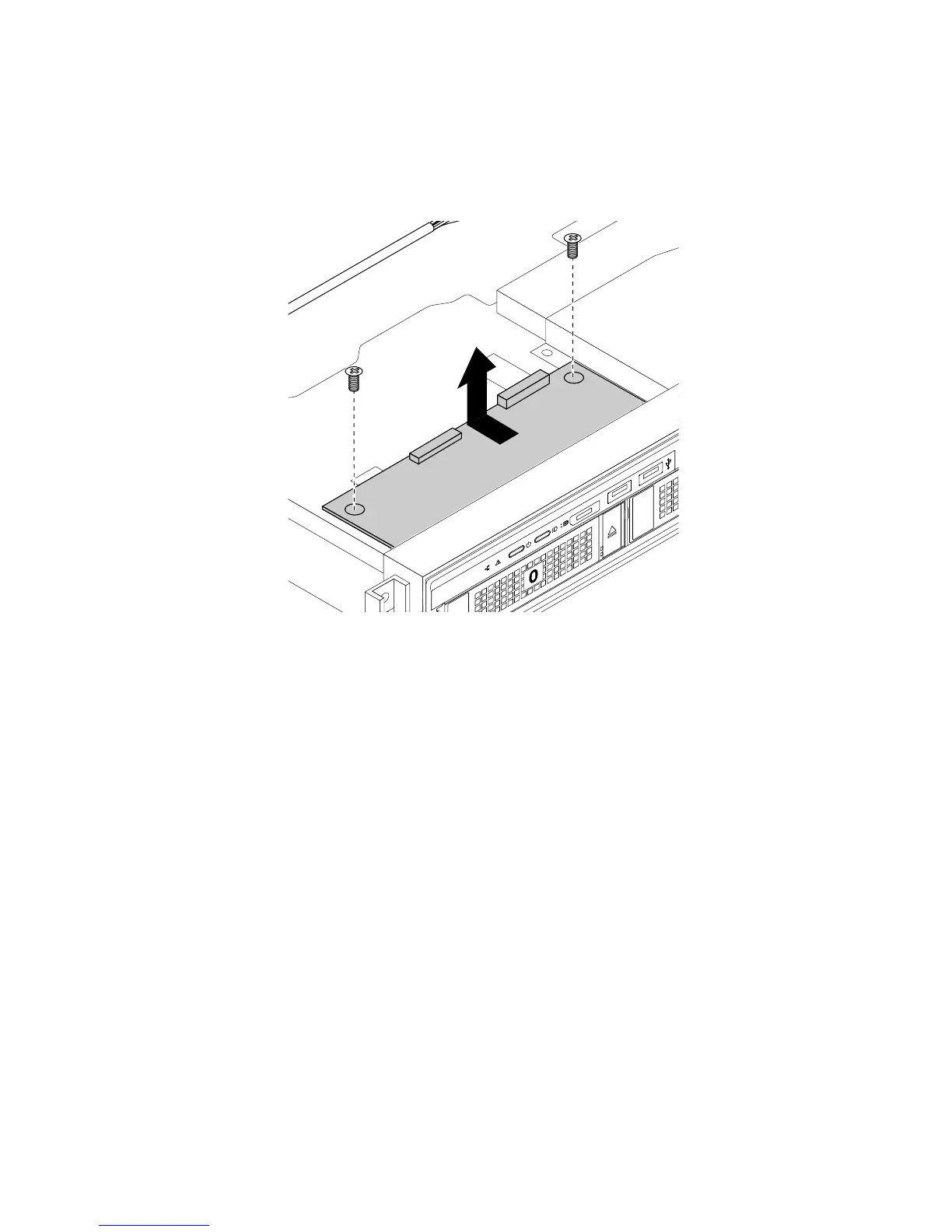

Figure122.Removingthefrontpanelboard
7.Touchthestatic-protectivepackagethatcontainsthenewfrontpanelboardtoanyunpaintedsurface
ontheoutsideoftheserver.Then,takethenewfrontpanelboardoutofthepackage.
Note:Carefullyhandlethefrontpanelboardbyitsedges.
