9.Alignthescrewholesinthenewrisercardwiththecorrespondingonesinthebracket.Then,installthe
twoscrewstosecuretherisercardtothebracket.

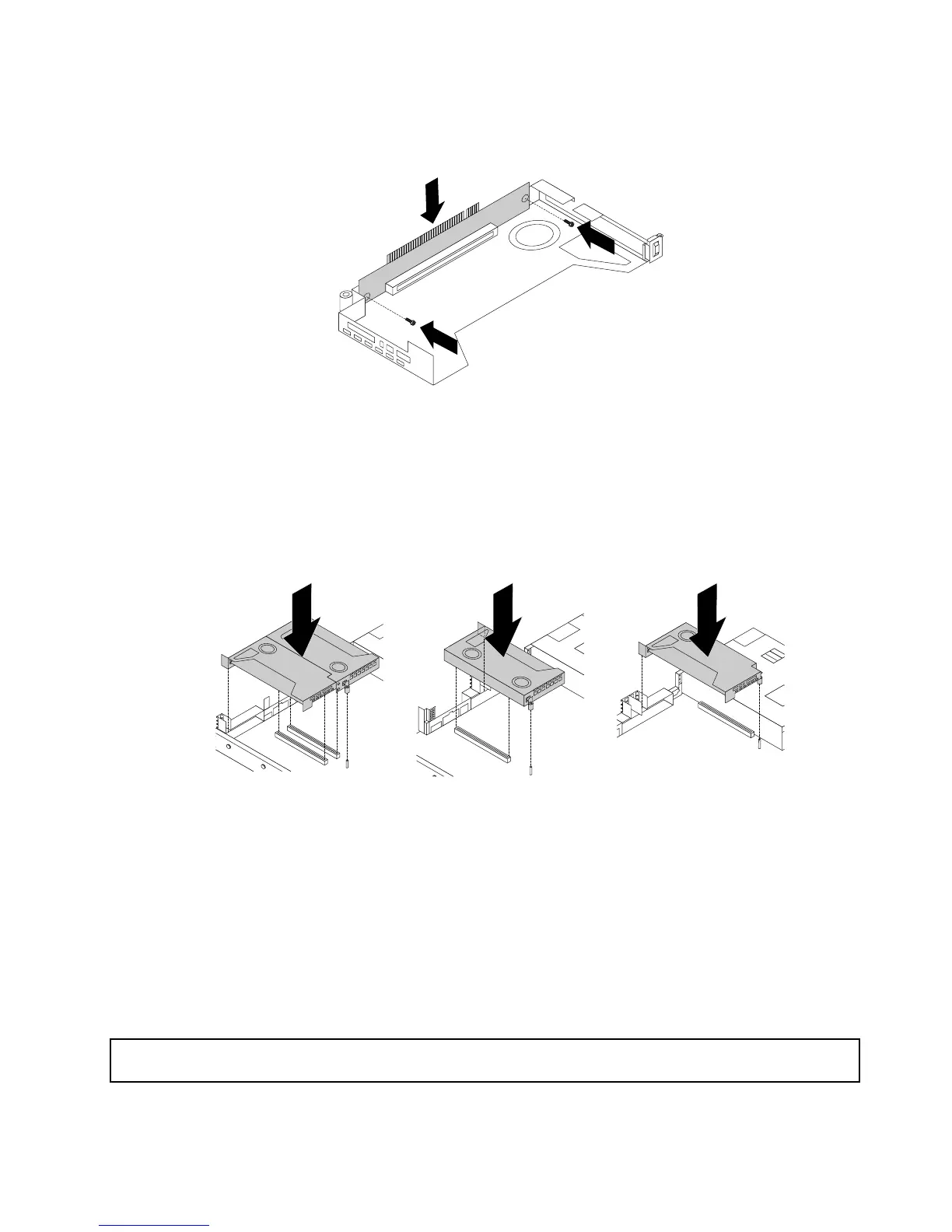

Figure126.Installingtherisercard
10.ReinstallthePCIecardonthenewrisercardassembly.
11.Positionthenewrisercardassemblyonthechassisandalignitwiththerisercardslotonthesystem
board.Alignthemountingstudsonthesystemboardwiththecorrespondingholesintherisercard
assembly.Then,carefullypresstherisercardassemblystraightdownintothechassisuntilitisfully
seated.
Figure127.Installingtherisercardassembly
12.Reinstallanypartsorreconnectanycablesthatyouhaveremoved.
13.Ifyouareinstructedtoreturntheoldrisercardassembly,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacement,goto“Completingthepartsreplacement”onpage152
.
Replacingthecoin-cellbattery
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Safetyinformation”
onpageiiiand“Guidelines”onpage59.
Chapter6.Replacinghardware145
