7.Gentlypressthemicroprocessorretainerasshowntoopenit.Ensurethatthesmallhandlesandthe
microprocessorretainerareinthefullyopenposition.
Note:Donotdropanythingontothemicroprocessorsocketwhileitisexposed.Thesocketpinsmust
bekeptascleanaspossible.

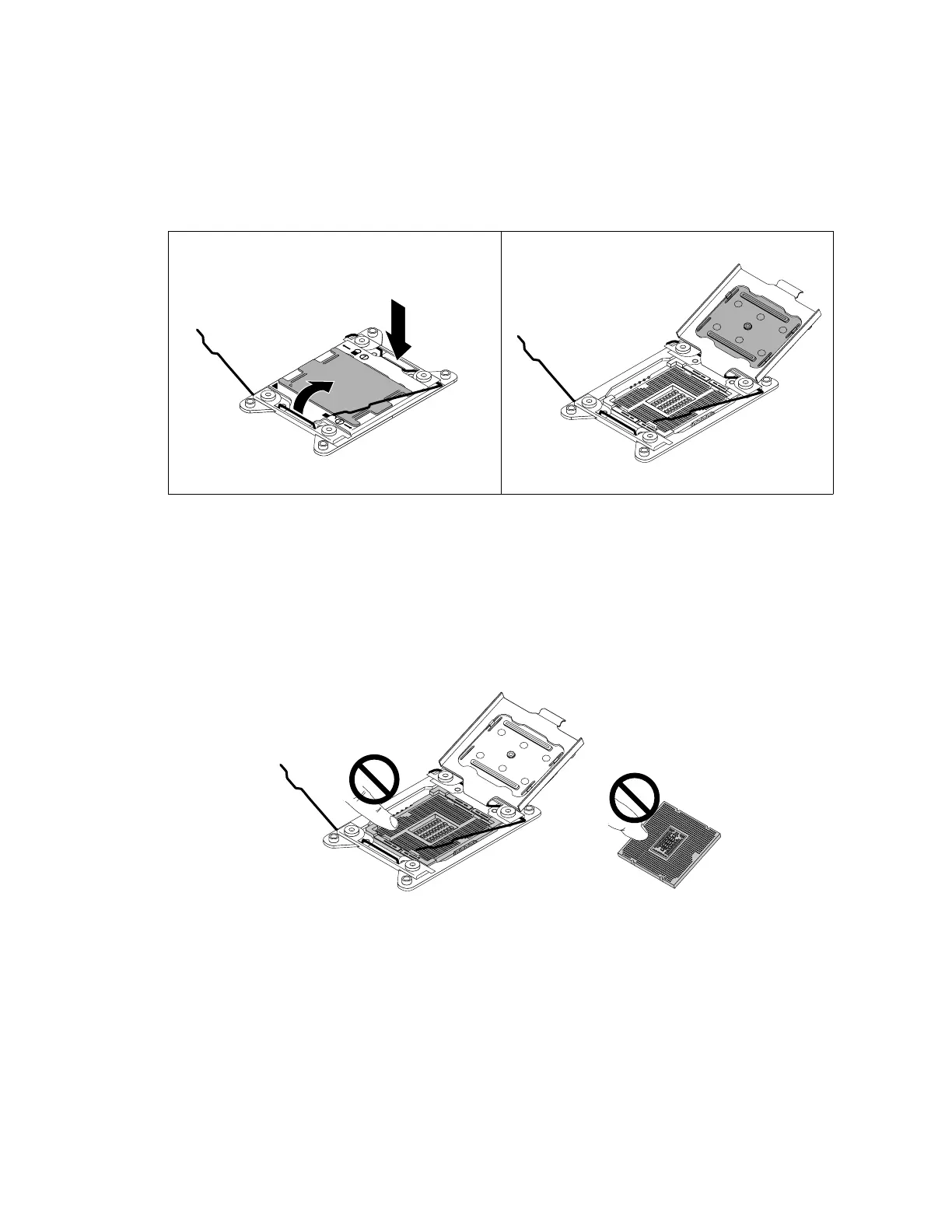

Figure75.Openingthemicroprocessorretainer
8.Touchthestatic-protectivepackagethatcontainsthenewmicroprocessortoanyunpaintedsurfaceon
theoutsideoftheserver.Then,removethenewmicroprocessorfromthepackage.
9.Removethenewmicroprocessorfromtheprotectivecoverthatprotectsthegoldcontactsonthe
bottomofthenewmicroprocessor.Donottouchthepinsonthemicroprocessorsocketandthegold
contactsonthebottomofthenewmicroprocessor.
Figure76.Donottouchthepins
Chapter6.Installing,removing,orreplacinghardware121
