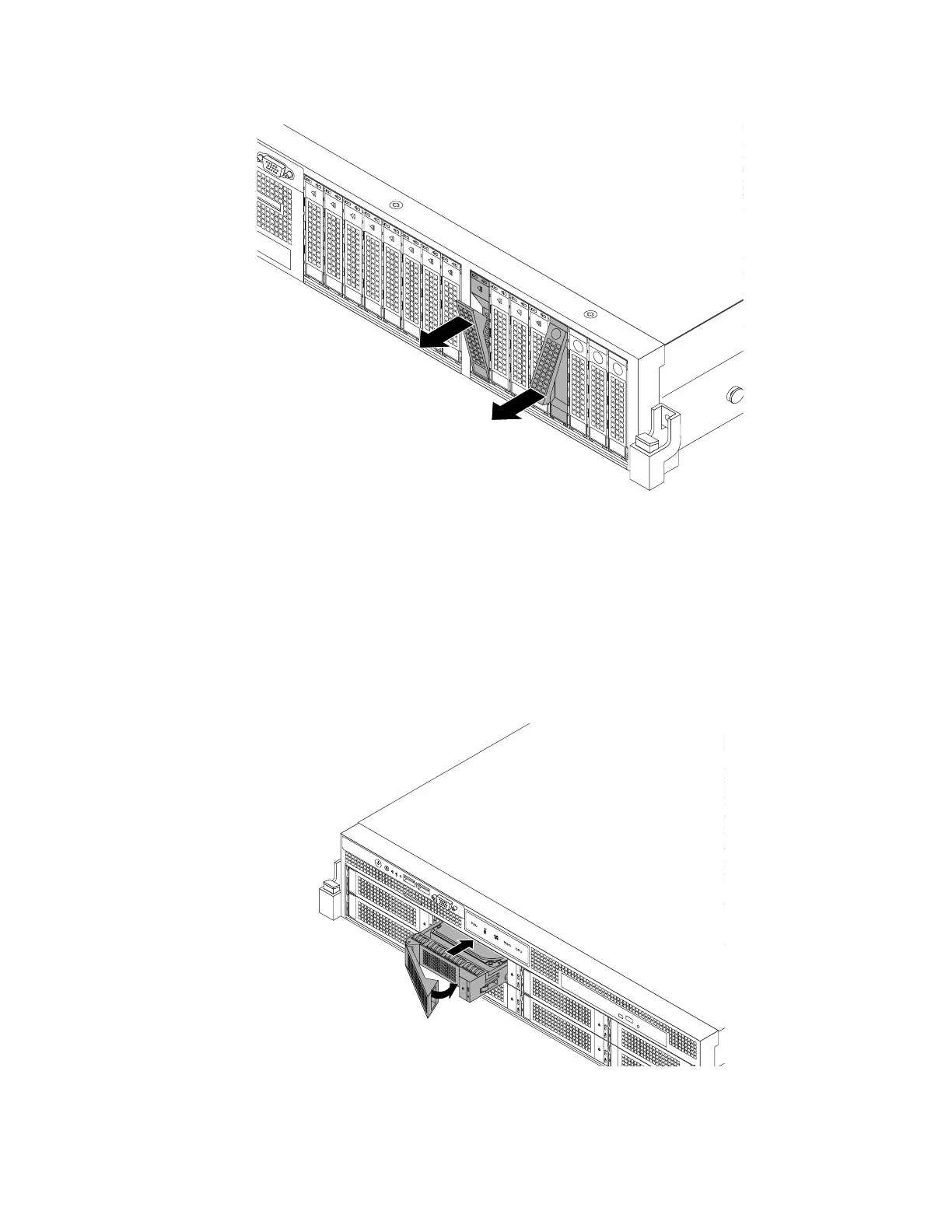

Figure117.Removingthe2.5-inchhot-swapharddiskdriveordummytray
3.Touchthestatic-protectivepackagethatcontainsthenewhot-swapharddiskdrivetoanyunpainted
surfaceontheoutsideoftheserver.Then,takethenewhot-swapharddiskdriveoutofthepackage.
Note:Donottouchthecircuitboardontheharddiskdrive.
4.Slidethenewhot-swapharddiskdriveintothedrivebayfromthefrontuntilitsnapsintoposition
andthencompletelyclosethehandle.
Figure118.Installingthe3.5-inchhot-swapharddiskdrive
Chapter6.Installing,removing,orreplacinghardware149
