Note:Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
Toreplacethesystemboard,dothefollowing:
1.Removeallmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,disconnectall
powercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedtotheserver.
2.Iftheserverisinstalledinarackcabinet,removetheserverfromtherackcabinetandplaceitonaflat,
clean,andstatic-protectivesurface.SeetheRackInstallationInstructionsthatcomeswiththeserver.
3.Removethehot-swapredundantpowersupplies.See“Installingorreplacingahot-swapredundant
powersupply”onpage113.
4.Removetheservercover.See“Removingtheservercover”onpage77.
5.Removethecoolingshroud.See“Removingandreinstallingthecoolingshroud”onpage82.
6.Recordthecomponentlocations,cableconnections,andcableroutingintheserver.
7.Removethesystemfancagewiththeinstalledsystemfansasawholebyliftingthesystemfancage
straightupandoutofthechassis.
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
PSU
Mem
CPU

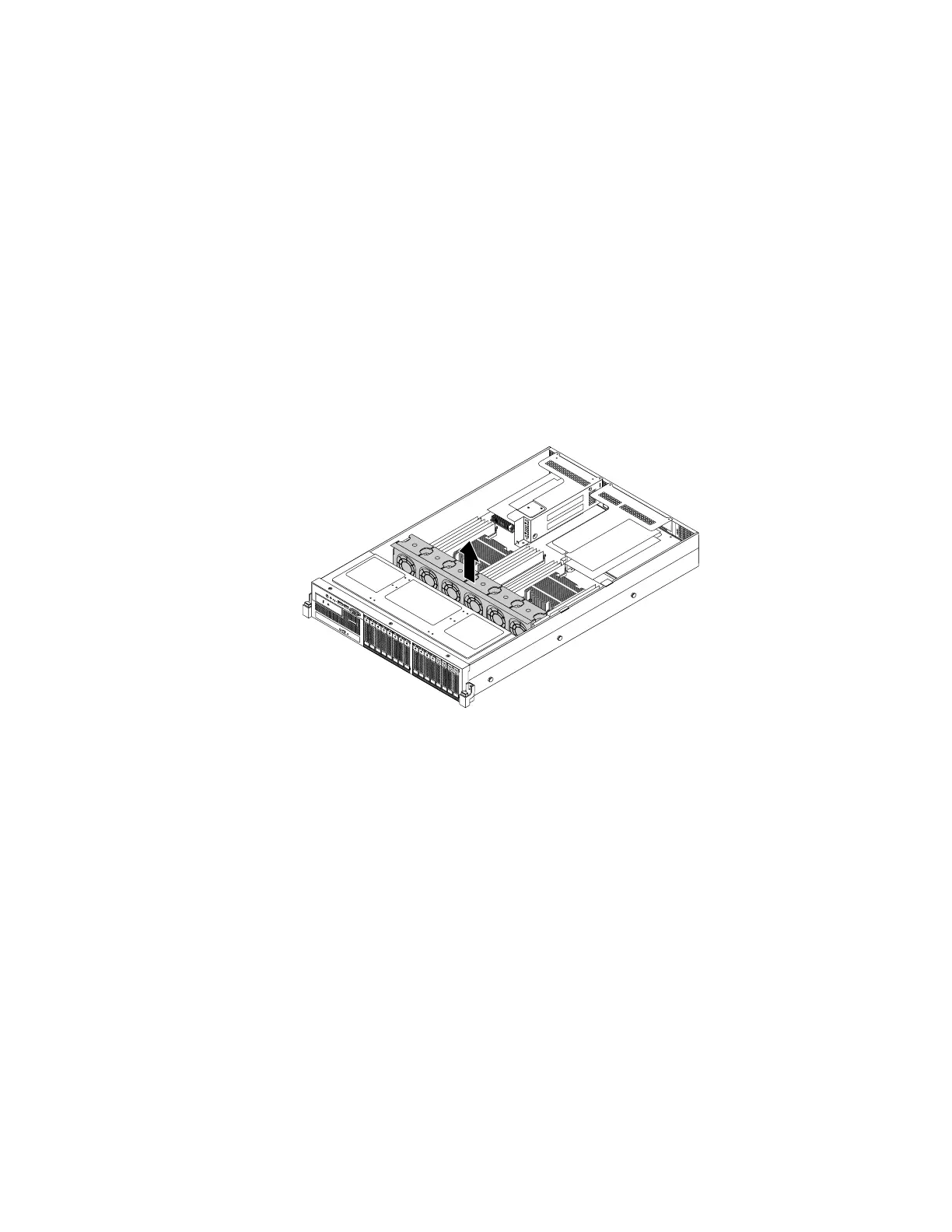

Figure148.Removingthesystemfancagewithsystemfans
8.Removethetworisercardassemblies.See“Replacingtherisercardassembly1”onpage155and
“Replacingtherisercardassembly2”onpage157
.
Chapter6.Installing,removing,orreplacinghardware177
