ToremovetheTPM,dothefollowing:
1.Removeallexternalmediafromthedrivesandturnoffallattacheddevicesandtheserver.Then,
disconnectallpowercordsfromelectricaloutletsanddisconnectallcablesthatareconnectedto
theserver.
2.Prepareyourserver.See“Removingorextendingtheserverfromtherackcabinet”onpage75.
3.Removetheservercover.See“Removingtheservercover”onpage75.
4.Removetherisercardassembly2.See“Replacingtherisercard”onpage91.
5.LocatetheTPMconnectoronthesystemboardandthenlifttheinstalledTPMstraightup.
Note:CarefullyhandletheTPMbyitsedges.

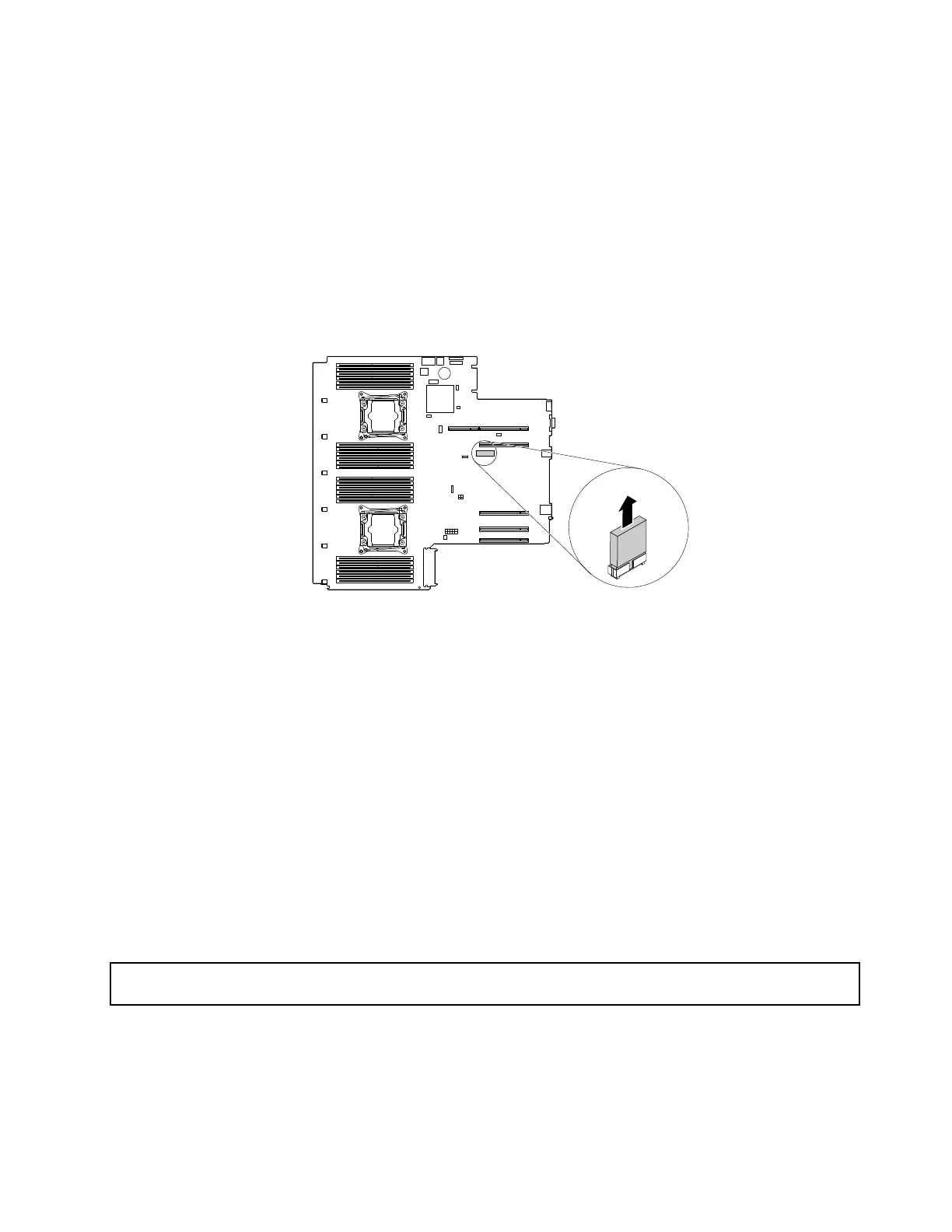

Figure103.RemovingtheTPM
6.IfyouareinstructedtoreturntheoldTPM,followallpackaginginstructionsanduseanypackaging
materialsthataresuppliedtoyouforshipping.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletetheremovalprocedure,goto“Completingthepartsreplacement”onpage206.
InstallingorremovingtheM.2storagemodule
TheM.2storagemoduleprovidesaneasywayfordatastorage.YoucaninstalltwoM.2storagedrivesinto
theM.2storagemodule.YoucanpurchaseM.2storagemodulesandM.2storagedrivesfromLenovo.
ForalistofThinkServeroptions,goto:
http://lenovoquickpick.com/usa/home/thinkserver/rack-and-tower-server
InstallingtheM.2storagemodule
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Readthisfirst:safety
information”onpagevand“Guidelines”onpage73.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
Chapter6.Replacinghardware131
