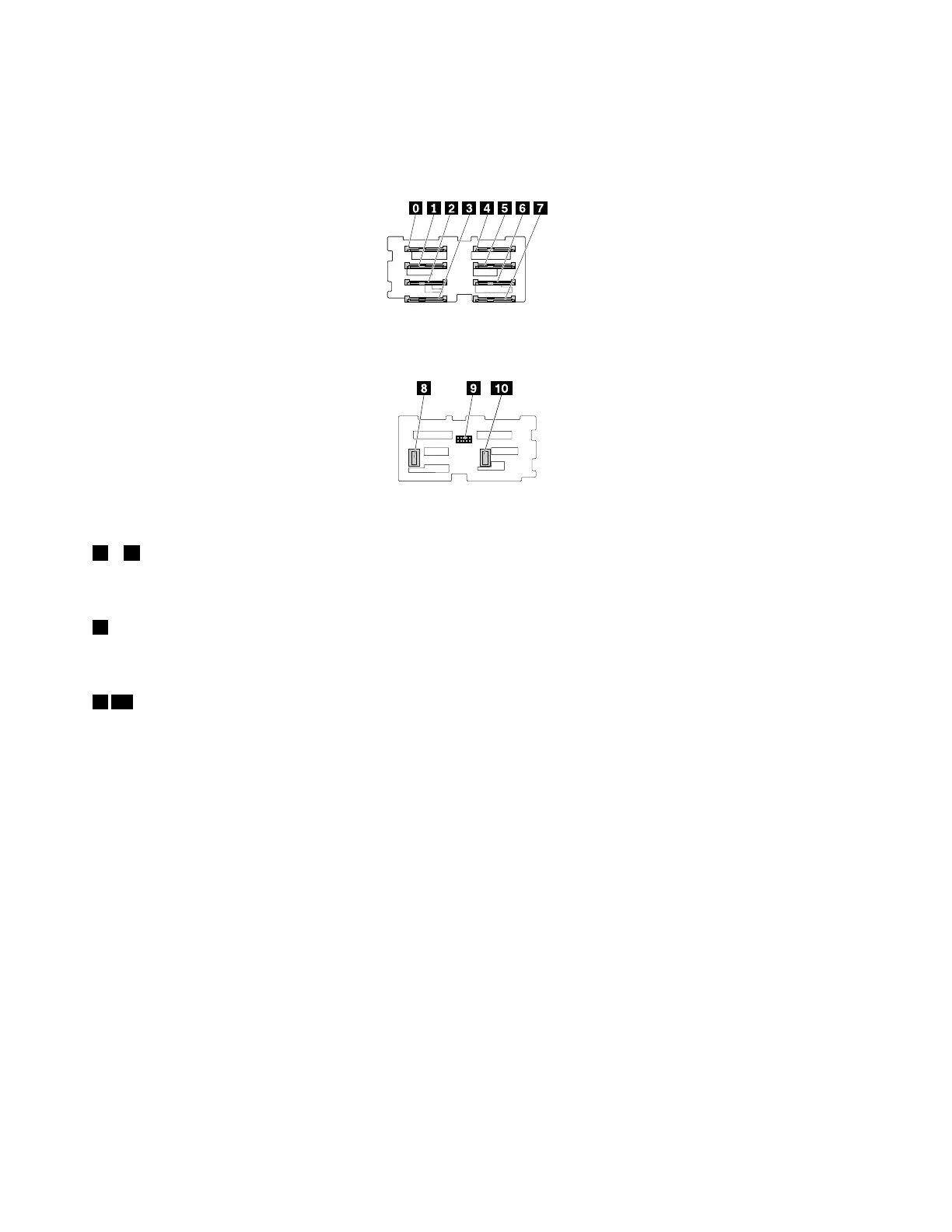

Backplaneforuptoeight2.5-inchdrives(withmini-SASconnectors)
Thefollowingillustrationsshowtheconnectorsonthebackplaneforuptoeight2.5-inchdrives(with
mini-SASconnectorsontheback).
Figure31.Frontview
Figure32.Rearview
0–7Slot0–slot7
Usedtoconnect2.5-inchSATA/SASHDDorSSDdrives.
910-pinpowerconnector
Usedtoconnectapowercabletoprovidepowertothebackplane.
810Mini-SASconnectors
Usedtoconnecttothemini-SASconnectorsonaPCIeRAIDadapter.YoualsocanuseaSATAtomini-SAS
signalcabletoconnectthebackplanetotheSATAconnectorsonthesystemboard.
46ThinkServerRD650UserGuideandHardwareMaintenanceManual
