6.Graspthetopofthesystemfanwithyourindexfingerandthumbandthenliftthesystemfanoutof
theserver.

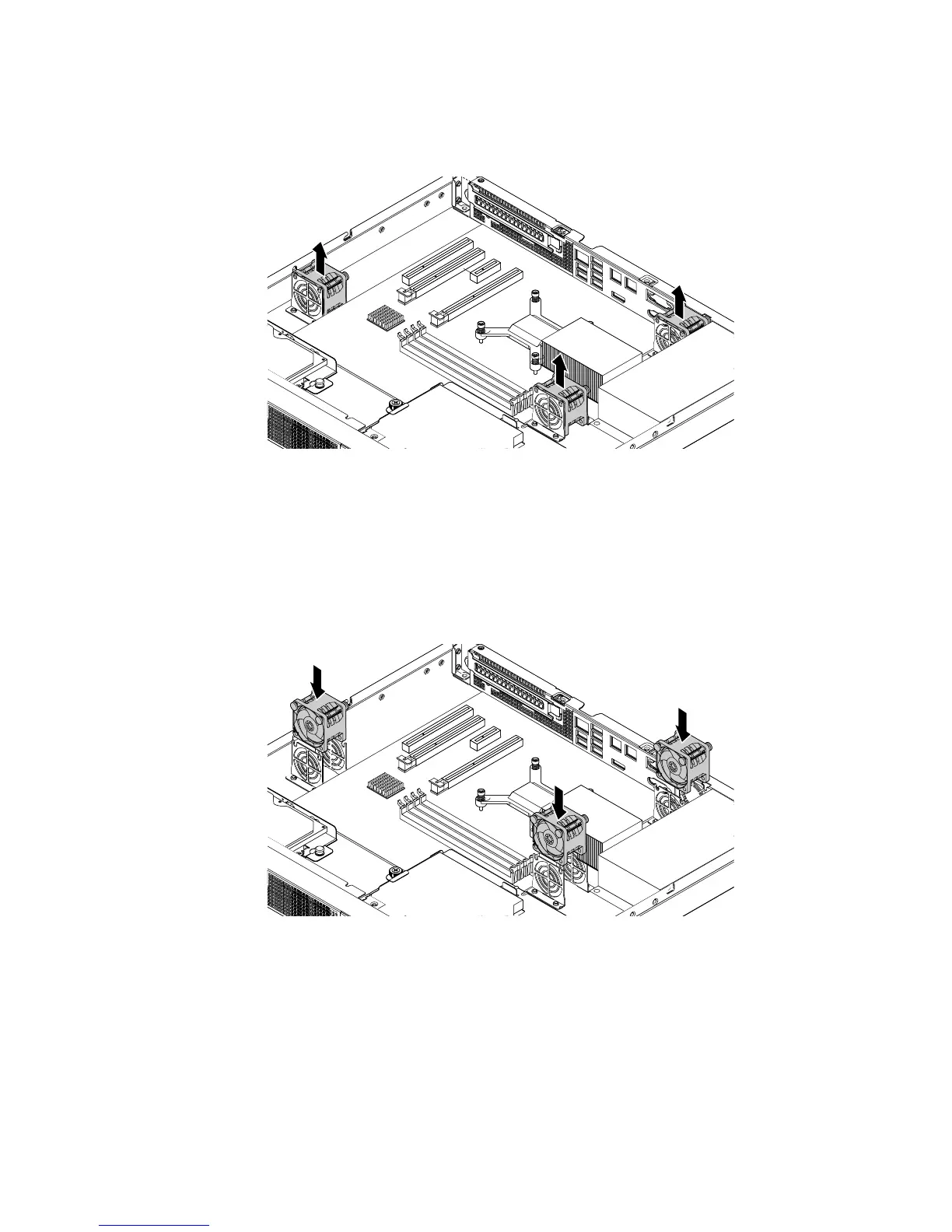

Figure67.Removingthesystemfan
7.Touchthestatic-protectivepackagethatcontainsthenewsystemfantoanyunpaintedsurfaceonthe
outsideoftheserver.Then,removethenewsystemfanfromthepackage.
8.Notetheorientationofthenewsystemfanandensurethatrearsideofthesystemfanwiththesystem
fancableisfacingtherearoftheserver.Then,pressthenewsystemfanstraightdownuntilitis
seatedintoplace.
Figure68.Installingthesystemfan
9.Connectthesystemfancabletothesystemboard.See“Systemboardcomponents”onpage32.
Note:Ifyouarereplacingthesystemfan1thatisneartherearoftheserver,reinstalltherisercard
assemblytothesystemboard.See“Replacingtherisercardassembly”onpage75
.
10.Ifyouareinstructedtoreturntheoldsystemfan,followallpackaginginstructionsanduseany
packagingmaterialsthataresuppliedtoyouforshipping.
Whattodonext:
Chapter6.Installing,removing,orreplacinghardware93
