2.Ensurethatallinternalcablesareconnectedandroutedcorrectlyandsecuredbyanycableclipsor
tiesintheserver.Keepcablesclearofthehingesandsidesofthechassistoavoidinterferencewith
reinstallingthefanductandtheservercover.Thefollowingillustrationshowsanexampleofthecable
routinginthechassiswithtwo3.5-inchharddiskdrivesandaRAIDcard.

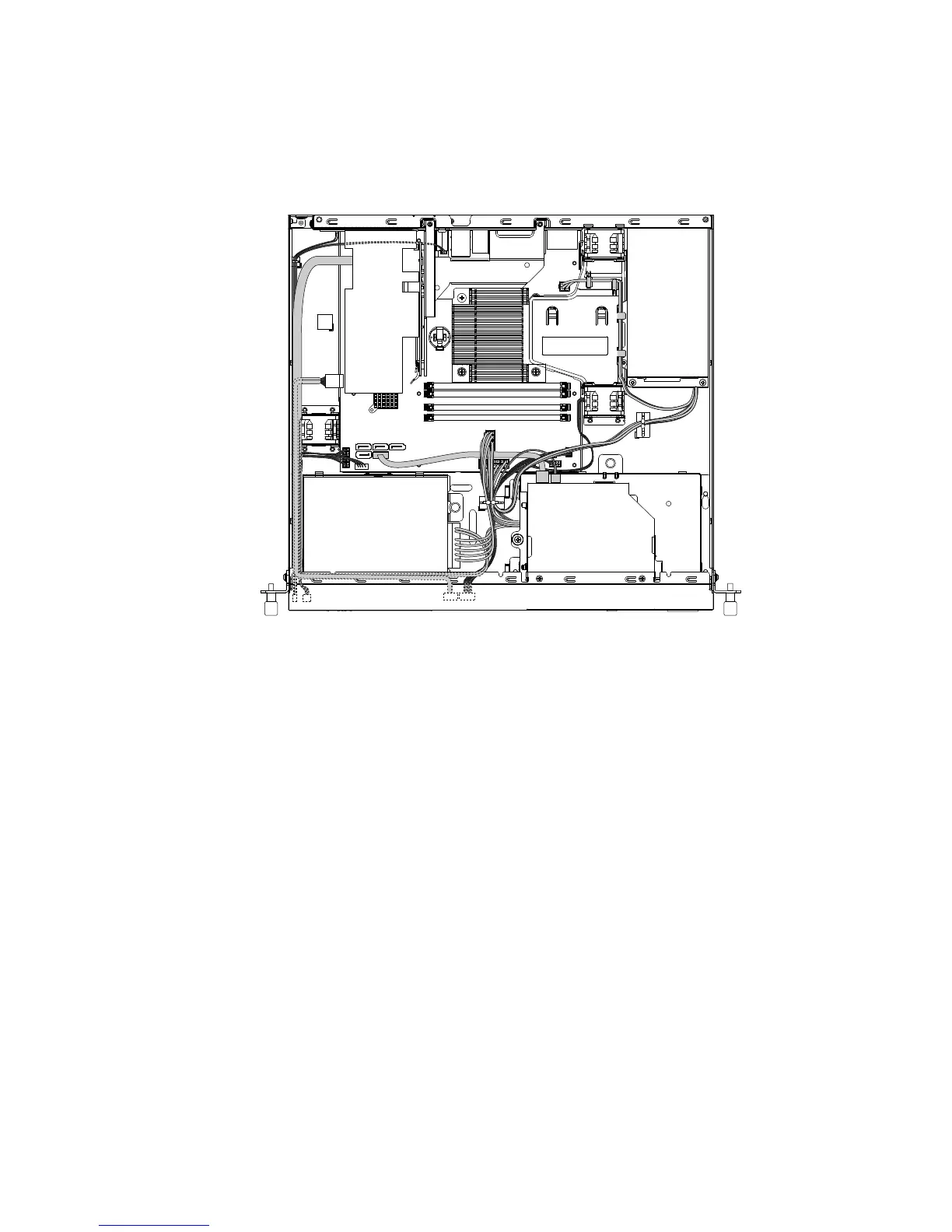

Figure81.Anexampleofcablerouting(servermodelswithtwo3.5-inchharddiskdrivesandaRAIDcard)
3.Ifyouhaveremovedthefanduct,reinstallit.See“Removingandreinstallingthefanduct”onpage57.
Chapter6.Installing,removing,orreplacinghardware107
